Product Details:
|
| Name: | Insulating Glass Sealing Robot | Min Glass Size: | 300*300mm |
|---|---|---|---|
| Max Glass Size: | 2500*4000mm | Working Speed: | 5-40m/min |
| Air Pressure: | 0.5-0.7MPa | Squeeze Pressure: | 32MPa |
| Stepped Glass: | Available | Total Power: | 380 V (Optional) |
| High Light: | glass sealing machine,double glazing equipment |
||

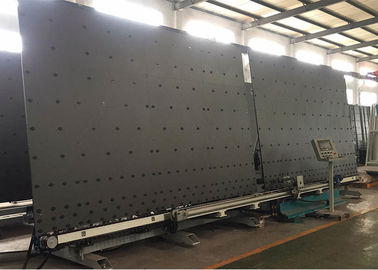

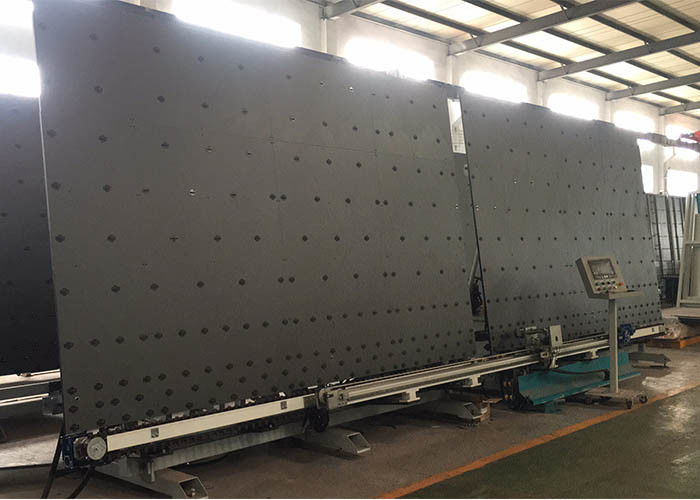

Automatic Sealing Line Sealant Extruder Machine With Two Pumps
Silicone sealing robot machine/Double glazing glass silicone extruder machine/Insulating glass silicone extruder machine
1.Functions and Features:
It is composed of raw material pump,solidification pharmaceutical pump,proportional pump, sealant-mixture system,hydraulic pressure system,electric system and so on.
Raw material pump,solidification pharmaceutical pump and proportional pump adopt the special high-pressure filling pump and the materials can be supported equivalently in two-way.The raw material pump is compelled by the hydraulic pressure sysem while the solidification pharmaceutical pump is compelled by the pheumatic motor.
There are high-pressure valves in the underpart entrance of solidification
pharmaceutitcal filter and material-feeding place of the mixing device and one-way valve is set in the mixing device so as to prevent two-components from fleeing each other.
Rising and falling system is controlled by hand valve and the proportion of the two-components can be changed by adjusting the slipper in the swinging pole.Tighening the nut once the demanding scale is reached.
Parameters:
| Max.glass size | 2500*4000mm |
| Min.glass size | 300*300mm |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Japan SCHEIDER |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| Touch screen | Taiwan WENVIEW |
| Guideway | Taiwan HIWIN |
2. Model and specification:
we mainly have two types of the silicone extruder machine, one is hydraulic type, it is the traditional type used to make insulating glass, it was widely used in the world before.
