Product Details:
|
Production Name: | Insulating Glass Sealant Extruder Machine | Min Size: | 300*300 |
---|---|---|---|
Max Size: | 2500*4000 | Application: | IGU Production Machine |
Control Way: | Servo Motor | Glue: | Polysulfide And Silicone Glue |
High Light: | silicone extruder machine,double glazing equipment |

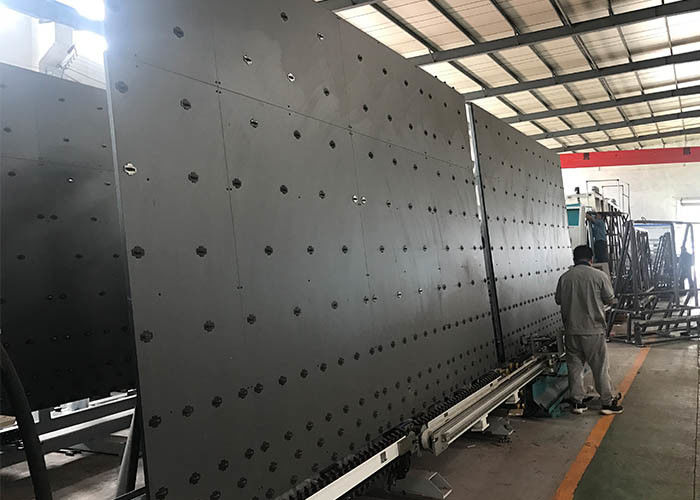

LC Control System Automatic Sealant Extruder Machine For DGU
Introduction:
1. Automatically measure glass size, glue depth and glue speed with linear adjustment
2.Automatically repair glass corners with beautiful surface
3.Smooth convey without scratch and pollution
4.Single function parts are equipped with manual functions, easy adjustment
5.Can coating more than 8 kinds of shaped glass, include Semicircle. Trapezoidal. Parallelogram. Circular. Polygon, etc
6.Seal stepped glass fully at once
7.The glass corners are full without air bubbles, smooth surface, no need to
8.Full automatic and high-efficiency machine
9.Adopt Japan ANCHUAN servo control system with stable performance
10.Adopt timing belt to keep smooth convey with accurate position
11.Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
12.Adopt 8 servo motors
Max.glass size | 2500*4000mm |
Min.glass size | 300*300mm |
Glass thickness | 12-56mm |
Working speed | 5-40m/min |
Air pressure | 0.5-0.7MPa |
Squeeze pressure | 32MPa |
Voltage power | 380V 12kw |
Overall dimension | 8700*2000*3500mm |
1. Fully automatic insulating glass sealing robot, to seal two component sealant onto insulating glass four sides.
2. The glass edge and corner is full and without air bubbles smooth surface, no need to pare the corner under the condition that the glass be cut levelly and without dislocation after combined.
3. Synchronous belt transmission, stable glass moving and precise glass locating, Key parts adopt special material, simple operation and long service time.
4. Using two sets of independent sealant supply system(including the mixing device), two kinds of sealants switch in one-key operation easily(optional).
5. The third section can prestore glass to achieve automatic processing and online sealing.
6. Servo control system adopts world famous brand, ensure a stable performance.
