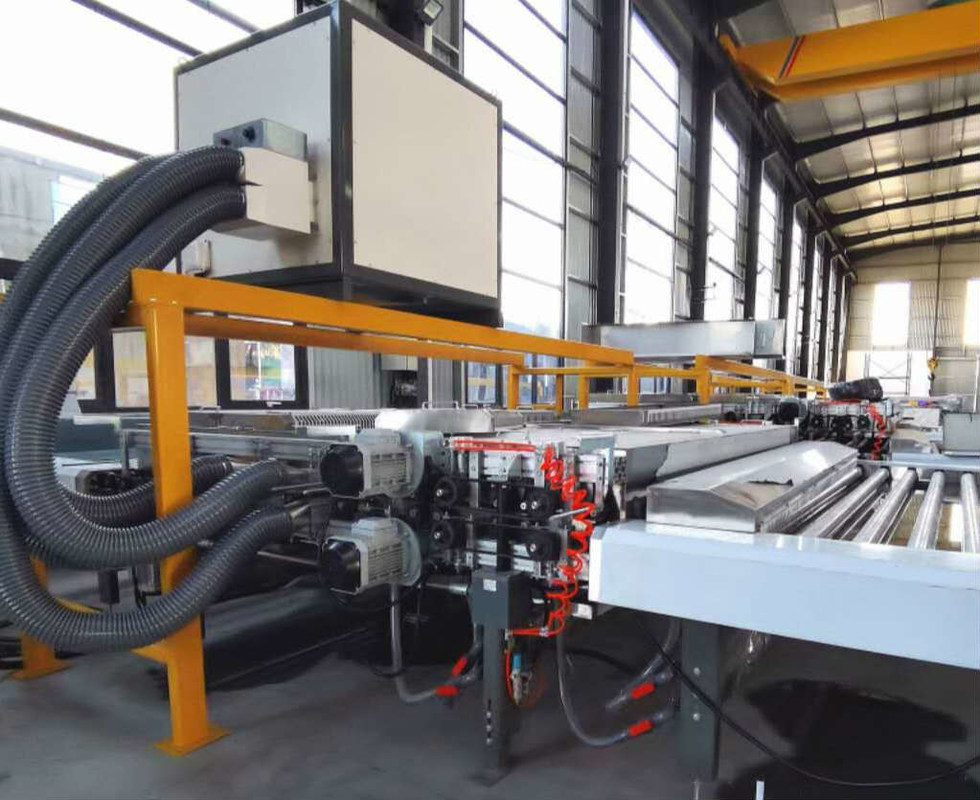

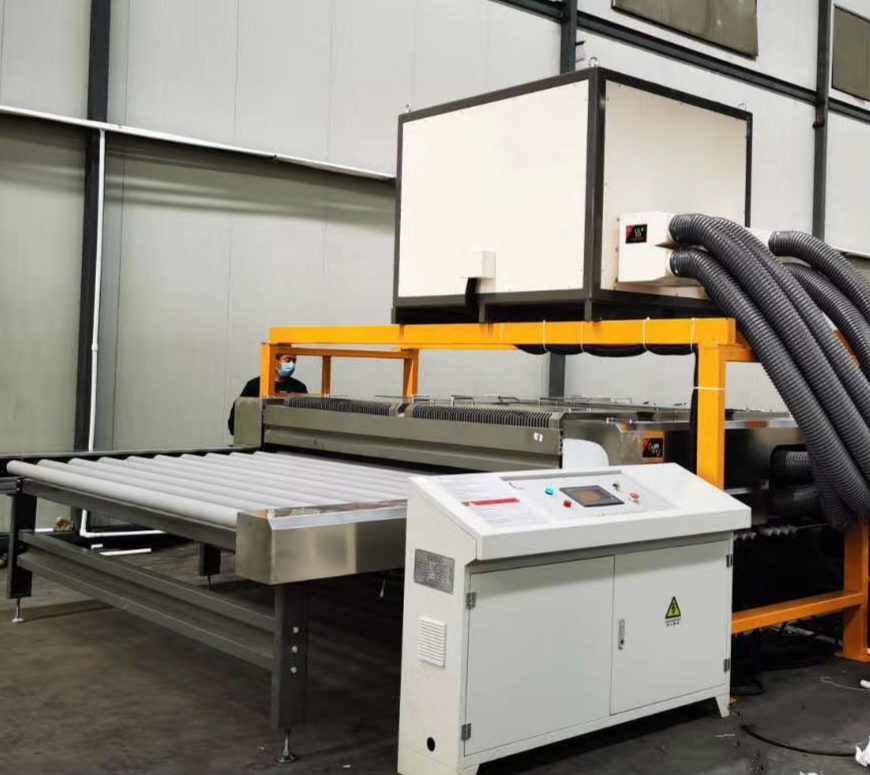

Stainless Steel 12m/Min 400mm×400mm Horizontal Glass Washing Machine

Large Image : Stainless Steel 12m/Min 400mm×400mm Horizontal Glass Washing Machine

Product Details:

Place of Origin:	JINAN CHINA
Brand Name:	LIJIANG GLASS
Certification:	CE
Model Number:	LJBQX 2500

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 28000 per set
Packaging Details:	Container
Delivery Time:	35 days
Payment Terms:	L/C, T/T
Supply Ability:	50 sets

Contact Now

Stainless Steel 12m/Min 400mm×400mm Horizontal Glass Washing Machine

Description

Production Name:	Glass Washing Machine	Max Glass Width:	2500mm/2600mm
Glass Thickness:	3 - 15mm	Glass Material:	Stainless Steel
Warranty:	1 Year	Brand:	LIJIANG GLASS
Highlight:	400mm×400mm Horizontal Glass Washing Machine , 12m/Min Horizontal Glass Washing Machine , 400mm×400mm glassware washing machine

Wholesale price Horizontal Glass Washing Machine with best Quality

CP-2500A (12 m/min) glass washing machine technical parameters
1. Purpose:
CP-2500A Glass Washing Machine CP-2500A is used to wash and dry the upper and lower surfaces of ordinary flat glass and high-quality low-e glass. It consists of a feed section, a cleaning and air drying section and a discharge section.
2. Structural features:
1. Aluminum alloy assembly structure, no waste concept, permanent use,
High efficiency, energy saving 70%;
2. The remaining sheet metal parts are all advanced mechanical spraying
Paint or powder
3. The rubber roller is made of vulcanized rubber with a stainless steel shaft;
4. The washing part in contact with water is made of stainless steel;
5. In the cleaning department, the air duct personnel are lifted as a whole, the maximum lift: 350mm, easy to clean and maintain;
6. Three pairs of brushes (Ø150mm), stainless steel shaft structure (low-e glass, ordinary coated glass and daylight coated glass can be cleaned without damaging the coated surface);
7. Two pairs of special stainless steel and aluminum alloy air knives are configured, with high wind power and good air drying effect, with heating system (with temperature control device, optional opening and closing);
8. An air filter is installed in the air inlet of the fan. The air volume is large and the air drying effect is good. The entire air box is installed in the upper part of the workshop, and the side is equipped with an air filter for easy inspection and cleaning.
9. Gear drive, frequency conversion speed regulation, digital display main drive, and the rotation of the brush roller in the washing section are driven by independent belts of the upper and lower motors respectively. The frequency conversion speed regulation is stable, and the service life is long, realizing the cleaning of special glass with high requirements;
10. Mechanical button control, digital display of washing machine, simple operation, easy operation and easy maintenance;
11. Outside the water tank of the washing machine, it is convenient to clean, change and inspect the water tank, so that the washing effect of the washing machine is cleaner.
12. Optional PLC control, touch screen display, convenient for workers to operate and maintain, and can be connected to all edging machine manufacturers without gaps (purchase separately if necessary)

3, Technical parameters:

1. Maximum glass width: 2500mm (effective maximum: 2650mm)
2. Minimum glass specification: 400mm×400mm (Limited row on left and right)
3. Glass thickness: 3mm-25mm (digital display)
4. Speed range: the glass thickness is within 3-25mm, Vmax = 1-12m/min
5. Main drive, brush speed control mode: frequency conversion speed control
6. Workbench height: 900±25mm
7. Total power: 42KW (with water wind heating: 15KW)
8. Water source: self-circulation, tap water (according to civil water standards) and deionized water supplements (the buyer should provide deionized water equipment)
9. Power supply: 380V 50Hz
10. Dimensions (length × width × height): about 6260 × 4800 × 3100
11. Weight: about 3940kg

Maximum glass width	2500mm (effective maximum: 2650mm)
Minimum glass specification	400mm×400mm (limited to single row on left and right sides)
Glass thickness	3mm-25mm (digital display)
Speed range	glass thickness within 3-25mm Vmax=1-12m/min
Main drive, brush speed regulation method	frequency control
Table height	900±25mm
Total power	42KW(water-bearing wind heating: 15KW)
Water source	self-circulation, tap water (according to civil water standards) and deionized water water supplement (deionized water equipment shall be provided by the buyer)
Power source	380V 50Hz
Dimensions (length × width × height)	approximately 626048003100
Weight	3940kg
