2~10m/Min Vertical Glass Washing Machine

2~10m/Min Vertical Glass Washing Machine
2~10m/Min Vertical Glass Washing Machine 2~10m/Min Vertical Glass Washing Machine 2~10m/Min Vertical Glass Washing Machine 2~10m/Min Vertical Glass Washing Machine 2~10m/Min Vertical Glass Washing Machine

Large Image :  2~10m/Min Vertical Glass Washing Machine

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Usd 20000 - 35000
Packaging Details: 40 HQ
Delivery Time: 45 work days
Payment Terms: L/C, T/T
Supply Ability: 30 Sets per year

2~10m/Min Vertical Glass Washing Machine

Description
Name: Vertical Glass Cleaning Machine Type: LJBZ2535
Washing Speed: 2~10m/min Max.working Speed: 10m/min
Min.glass Size: 450×280mm Max.glass Size: 2500×5000mm
High Light:

glass cleaning machine

,

vertical glass washer

,

10m/Min Vertical Glass Washing Machine

              Vertical Glass Cleaning Machine  LJBZ2535

2~10m/Min Vertical Glass Washing Machine 0

2~10m/Min Vertical Glass Washing Machine 1

3 pairs of brushes

This equipment is equipped with 3 pairs of soft brushes, which can protect the glass from
damage while cleaning the glass.

2~10m/Min Vertical Glass Washing Machine 2

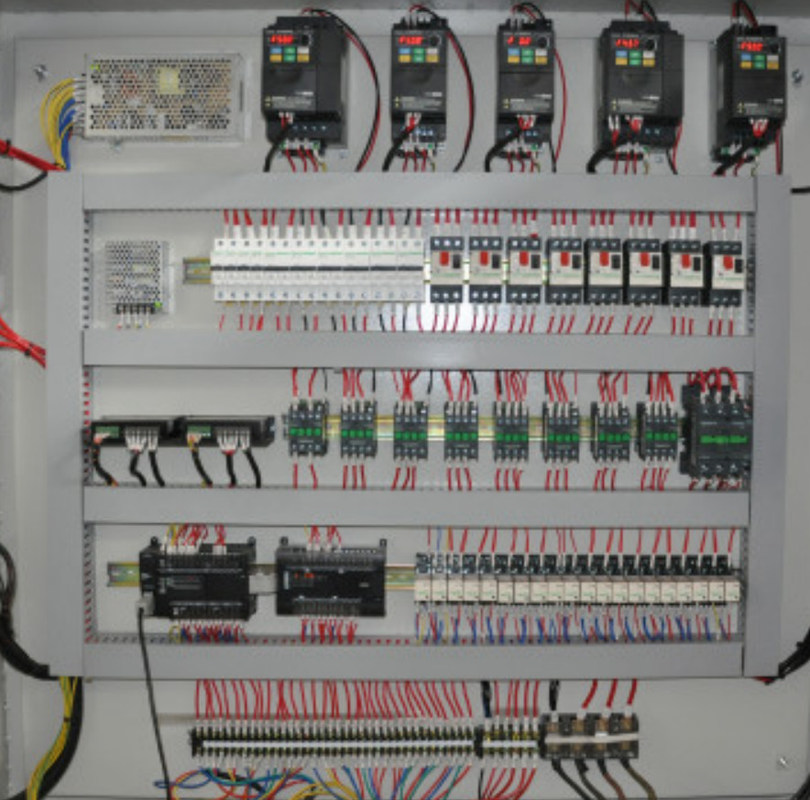

Siemens Electric

This equipment is equipped with Siemens electrical appliances, more durable and longer life


2~10m/Min Vertical Glass Washing Machine 3


Transparent glass door

It can let people more intuitively see the glass cleaning process

2~10m/Min Vertical Glass Washing Machine 4

2~10m/Min Vertical Glass Washing Machine 5

Power supply Voltage 380
Frequency 50
Total power kW ≈36.7
Washing speed m/min 2~10
Max.working speed m/min 10
Min.glass size mm 450×280
Max.glass size mm 2500×5000
Washing glass thickness mm 3~15
Max.insulating glass thickness mm 50
Conveyor height mm 500
Weight kg ≈8000
Dimension Length*Width*Height(mm) 23600×3500×3700

2~10m/Min Vertical Glass Washing Machine 6

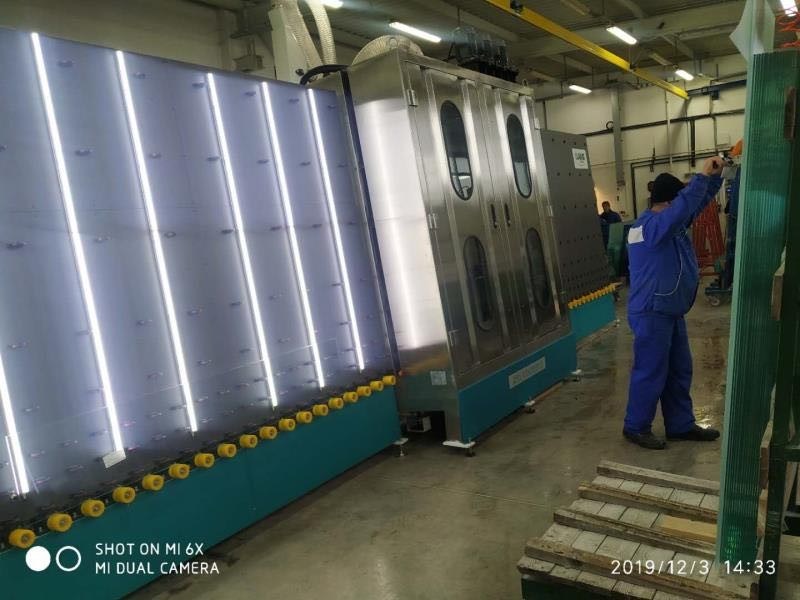

LJBZ2535 cleaning and drying section tilt vertical placement. The control box is arranged on

the outside of the cleaning section and is easy to operate. The cleaning section and water

tank are made of stainless steel and corrosion-resistant materials. The conveyor roller is an

acid-proof and alkali rubber roller, which is automatically adjusted according to the glass

thickness. The cleaning drying section adopts stepless variable frequency speed regulation,

the glass can run smoothly at the right speed. The cleaning section has three brushes with

high pressure water sprayers to clean, can clean low-e glass; The drying section has a pair

of slanting blades with baffles in the middle, which automatically adjusts the distance between

the two blades according to the thickness of the glass, ensuring the air drying effect. The fan

is 15KW variable frequency fan, when blowing the small glass, the fan operates under low

frequency, the wind knife only USES the lower half of the wind knife, not only greatly reduces

the energy consumption, but also does not affect the air drying effect.



The waterway system consists of two separate water circulatory systems: the first stage cleaning

water system, the second stage rinsing waterway system, the glass is washed by first grade

cleaning water, and then washed by rinsing water. The water is pumped from the water tank and

sprayed onto the glass surface through the spray pipe. After cleaning the glass with the brush,

the water will flow back to the water tank for recycling. The first-level cleaning tank is equipped

with a temperature-controlled water heater, which can keep the water temperature automatically.

In order to ensure the cleaning effect, the water conductivity must be no greater than 40 (including

s, if the water quality is bad, need to be equipped with water treatment equipment, water after

water treatment into the rinse water tank, recycling according to the above steps, the water

treatment device by the user should bring along their own.



2~10m/Min Vertical Glass Washing Machine 7

2~10m/Min Vertical Glass Washing Machine 8
