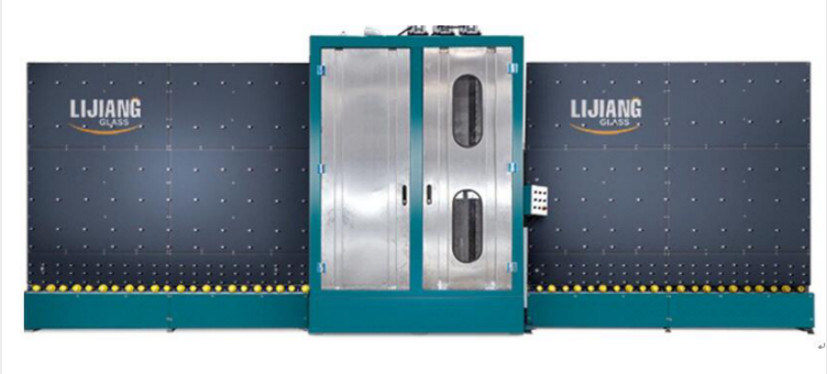

Low E Film Glass Washing And Drying Machine

304 Stainless Steel Flat Glass Washing And Drying Machine With Low-e Film

Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful Spring city------Jinan. It is an enterprise which integrated glass processing equipment research and development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail, the transportation is very convenient.

The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on.

So that our company has became an vital domestic and foreign glass processing equipment supplier. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, South America, the Middle East, Southeast Asia, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the new butyl extruder machine, and the new fully automatic butyl extruder machine, its technology and quality have reached the leading level in China.

With the rapid development of insulating glass industry, Lijiang is looking forward to working with you for win-win situation and jointly creating a new world of China!

Main feature od the vertical glass washing machine

1. PLC control system, touch screen interface
2. Wash online and offline low-e glass, automatically recognizes Low-e film
3. Adopt the independent wind knife system to improve the cleaning efficiency
4. The air knife can automatically adjust the width of the air knife according to the thickness
5. Water tank automatic temperature control, water replenishing system
6. European silencer system & stainless steel drying system

Max.glass size	2000*2500mm
Min.glass size	280*450mm
Glass thickness	3-15mm
Materials	304 stainless steel
Glass washing speed	2-10m/min
Glass conveyor speed	45m/min
Washing brushes	3 pairs
Water supply	Water consumption:0.5t/h conductivity:40μs/cm
Air supply	Flow: 0.8m/min
Air pressure	≥0.8MPa
Total power	3P 380V 50Hz
