Product Details:
|
| Name: | Insulating Glass Processing Line | PLC: | Siemens |
|---|---|---|---|
| Advantage: | Gas Filling On Line | ||
| High Light: | CE vertical insulating glass production line,PLC vertical insulating glass production line,Siemens PLC insulating glass line |
||
Vertical Insulating Glass Processing Line for Insulating Glass Machine Processing
APPLICATION of Vertical Automatic Insulating glass production line
LIJIANG GLASS is manufacture of automatic Insulating glass machinery,we are especially professional in Insulating Glass Machines.20 years DGU Machine processing experience with our own technology study team and after sales service team .
Glass cleaning, transmitting pressing and gas filling(optional) as the most important process of insulating glass production, The production line can do double glass,triple glass and stepped glass

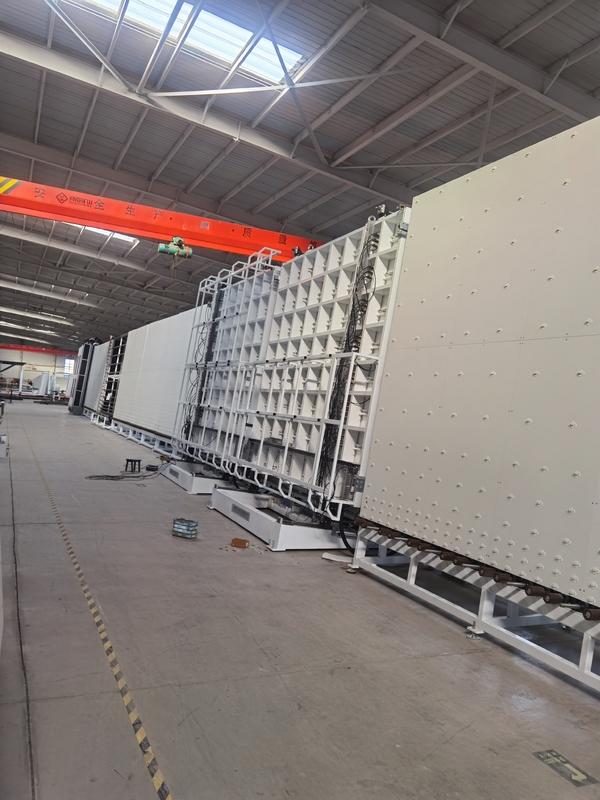

Vertical Automatic Insulating glass production line LJBZ2025 include 7 parts: (standard model :from right to left)
Insulating Glass Processing line include 7 parts: (from right to left)
1, Loading section(with low-e checking)
2, washing and drying section(can washing low-e glass)
3, conveyor section
4, checking and assembly section
5, conveyor , measure and sensor section
6, press part with gas filling
7, unloading section
►SIEMENS CONTROL SYSTEM
►ROLLERS SHOWING
►WATER TANKER SHOWING
1,Loading section(with low-e checking)
2,washing and drying section(can washing low-e glass)
3,conveyor section
4,checking and assembly section
5, conveyor , measure and sensor section
6,press part with gas filling
7,unloading section
Parts list of Automatic Insulating Glass Production Line
| Components | Brand | Remark |
| Servo motor | GERMAN SIEMENS | For stepped glass |
| Servo driver | GERMAN SIEMENS | For stepped glass |
| Servo motor | GERMAN SIEMENS | For transfer |
| Servo motor | GERMAN SIEMENS | For press |
| PLC | GERMAN SIEMENS | |
| Low voltage component | GERMAN SIEMENS | |
| Frequency converter | GERMAN SIEMENS | |
| Switching power supply | Taiwan MW | |
| Optoelectronic switch | Korea Autonics | |
| Pneumatic component | Taiwan Airtac | |
| Pneumatic component | Japan SMC | |
| Touch screen | Taiwan Wenview | |
| Travel switch | Taiwan Tiande | |
| Max.glass size |
2000*2500mm Gas filling line 2025 |
| Min.glass size | 280*450mm |
| Glass thickness | 3-12mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed: | 48m/min |
| Washing brushes | 3 pairs |
| Water supply: | Water consumption:0.5t/h conductivity:≤50μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P380V 50HZ 34KW |
| Dimension | 23500*3500*3700mm |
Other product of Insulating glass machine

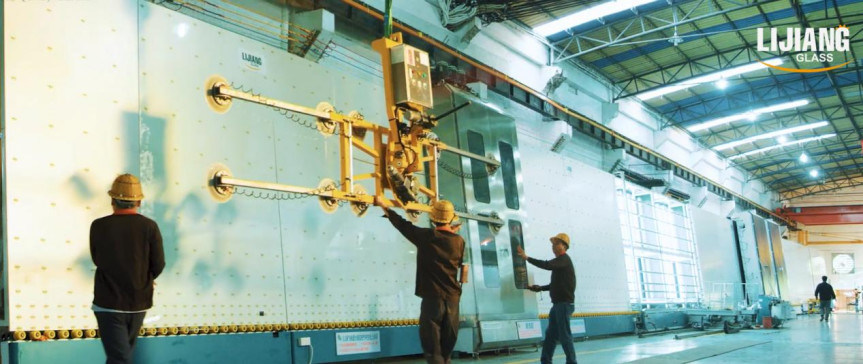

Glass Cantilever crane LJXJ500-800
1.Vacuum glass lifter is for handling insulating glass sheet.
2. Glass lifter is equip with 5 suckers. But the sucker can be add according to need of the client.
3.Glass lifter is able to lift the glass sheet with 800kg
4. Vacuum lifter is equipped with a warning light in case of a power failure or vacuum leakage, an optical and an acoustic signal goes off immediately to warn the operator to do emergency operation.
5.Glass lifter is Stable, Easy to use and safe.
Parameter of Glass Cantilever crane:
| Safety-absorption | 200KG/400kg/600kg/800kg |
| Performance | Rotation 0-90 degree and lifting 600-1200mm |
| Quantity and size of sucker | 2/4/6/8 |
| Working gas source | 5-8 Pa |
| Outer size | L 1120xW660XH620mm |
| Net weight | 550kg |
