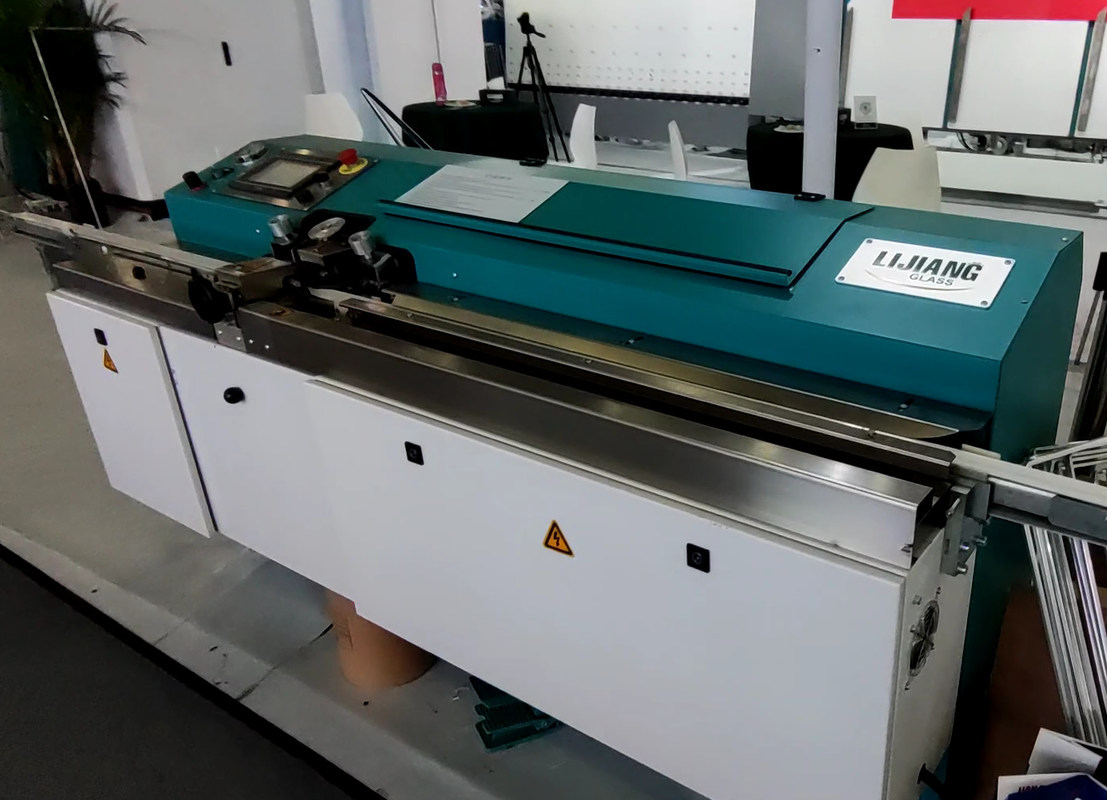

Automatic Butyl Extruder Machine For Insulating Glass Processing

Automatic Butyl Extruder Machine For Insulating Glass Processing
Automatic Butyl Extruder Machine For Insulating Glass Processing Automatic Butyl Extruder Machine For Insulating Glass Processing

Large Image :  Automatic Butyl Extruder Machine For Insulating Glass Processing

Product Details:
Place of Origin: China
Brand Name: LIijiang Glass
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Container/wooden box
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 50sets/month

Automatic Butyl Extruder Machine For Insulating Glass Processing

Description
Product Name: Automatic Butyl Extruder Machine Dimension(L*W*H): 2600*680*1100mm
Aluminum Spacer Width: 6A-27A Total Power: 220V 50Hz 1.5Kw
Air Source: ≥0.65MPa PLC: Germany SIEMENS
High Light:

SIEMENS PLC Automatic Butyl Extruder

,

Automatic Butyl Extruder Machine 0.65MPa

Automatic Butyl Extruder Machine For Insulating Glass Processing​

Automatic Butyl Extruder Machine For Insulating Glass Processing 0

PARAMETER



Voltage 3P380V50Hz
Power 5.7kw
Squeeze pressure 10-25MPa
Temperature 110-140T
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 5.5-26.5mm
Speed 0-47m/min
Diameter of butyl cylinder 200mm
Air supply Flow 0.4m3/min
Air pressure > 0.6MPa
Dimension 2800X700X900mm
Weight 750 kg



PERFORMANCE of Butyl extruder machine

• The coating glue speed can reach 47 m/ min

• Saving glue by compared with ordinary machine. The glue can reach 7g/m

• Manual exhaust, simple operation

• Adopt non adhesive synchronous belt, talc powder is not required to clean it

• Main accessories are made of German brand, PLC program control, stable performance

• Using movable vertical glue release and horizontal coating, convenient and practical

• Adjust the width of glue head automatically, ensure the double side gluing is consistent with the quick opening valve integrated control

• The height adjustment of beam is convenient, effective to solve the problem of white line

• Use touch screen operation, simple trial

• Adjust the glue output automatically according to the speed change

• Adopt brand hydraulic system to ensure uniform and full rubber output

• The rubber cylinder adopts the pull-up structure, which is convenient for changing the rubber

Automatic Butyl Extruder Machine For Insulating Glass Processing 1
