Product Details:
|
| Certification: | CE | Production Name: | Molecular Sieve Filling Machine |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Aluminum Specifications: | 6A-27A | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Optional: | Big Barrel |
| Dimension: | 1300*1100*3600mm | Application: | Insulating Glass Making |
| High Light: | Desiccant Filler Molecular Sieve,Alu Automatic Desiccant Filling Machine,Automatically Desiccant Filler |
||

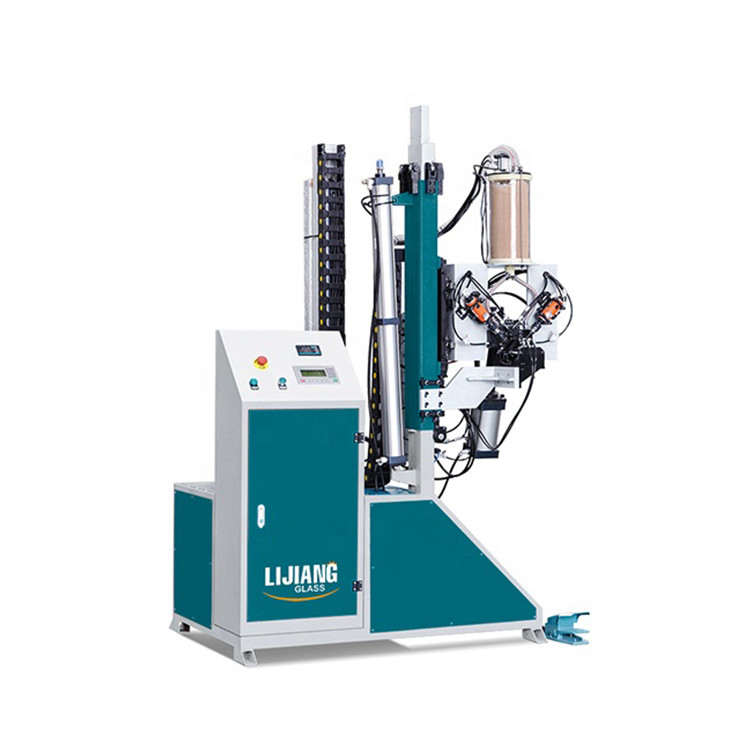

Overview of Desiccant Automatic Filling Machine
The desiccant automatic filling machine can automatically realize the action of automatically drilling holes on the bulkhead and filling the desiccant and sealant.
The control system of the desiccant automatic filling machine adopts German Siemens, which has fast filling speed and stable operation, which ensures the effective sealing performance of the sealant.
The automatic desiccant filling machine improves the quality of insulating glass and is an indispensable equipment in the production process of insulating glass.

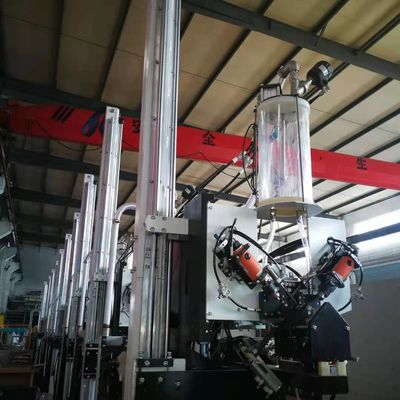

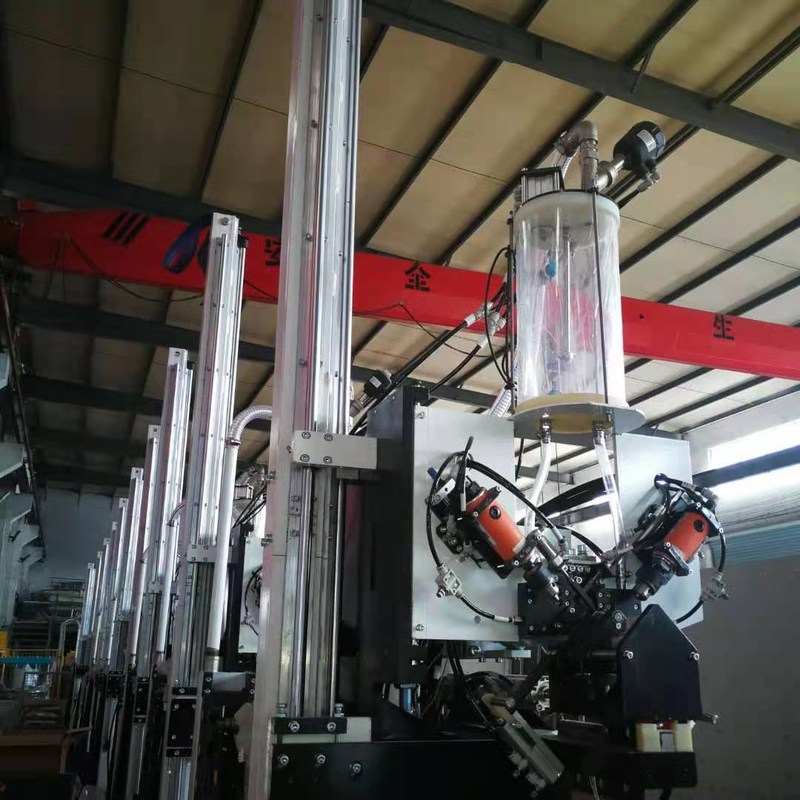

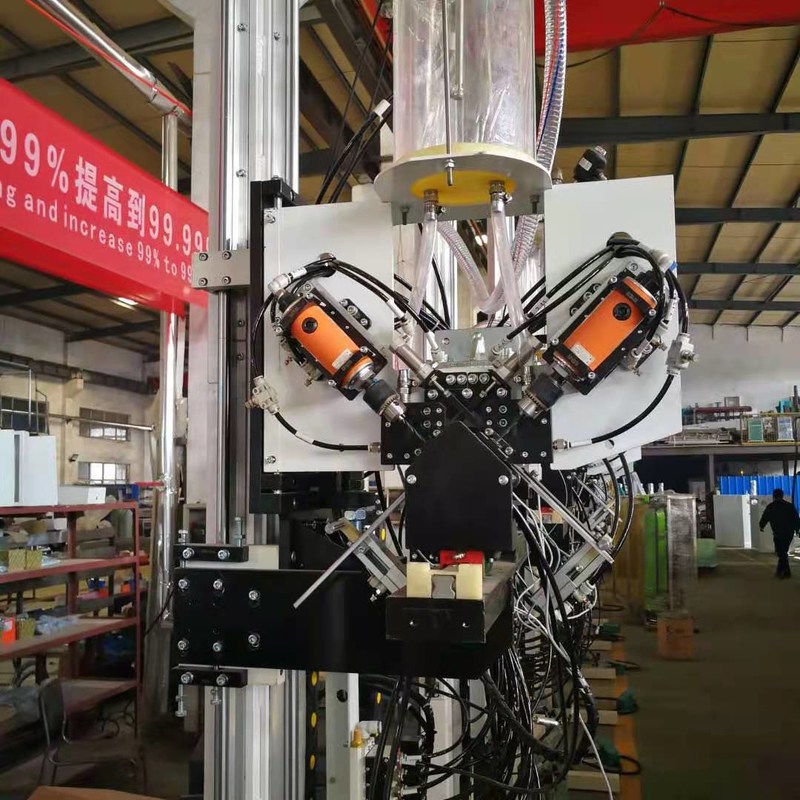

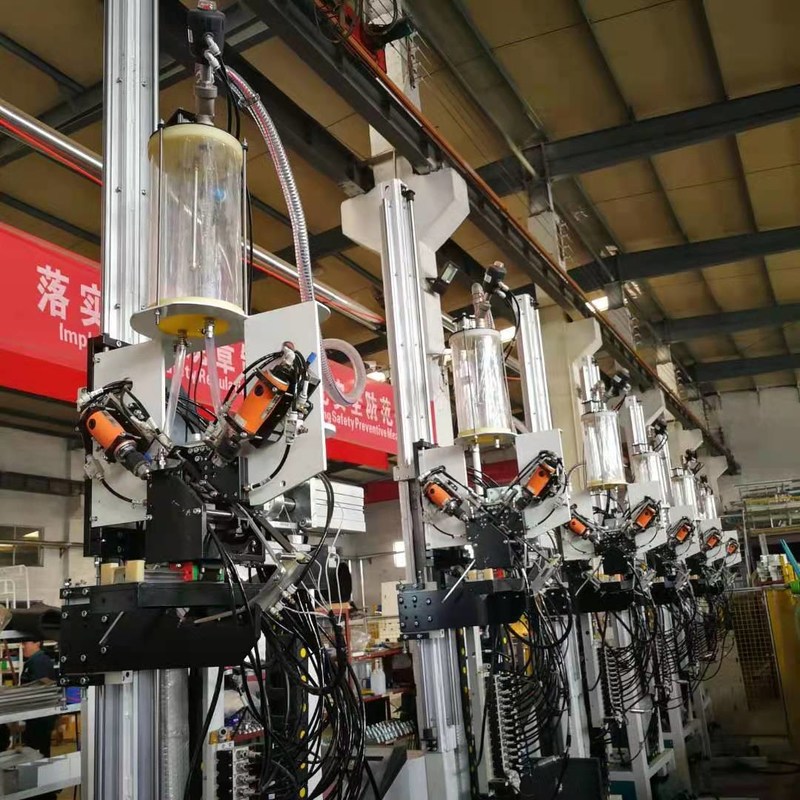

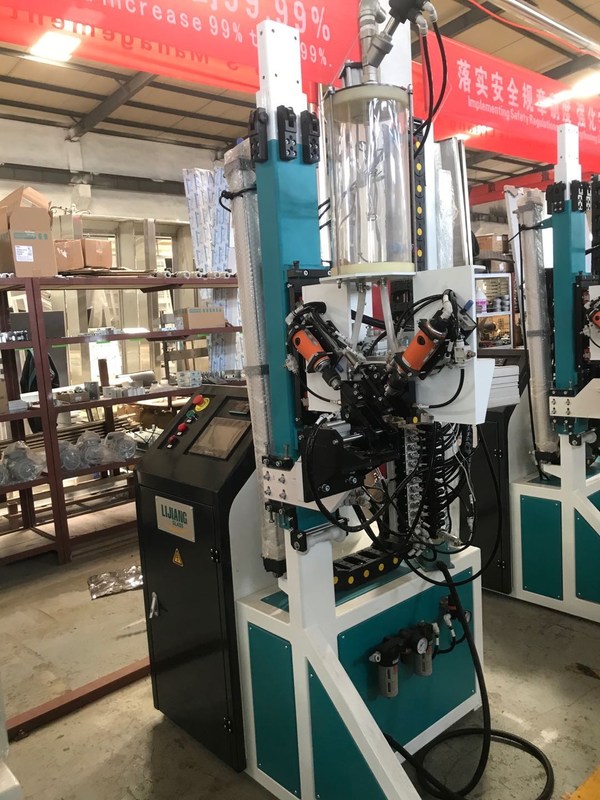

Detail of Automatic Automatic Molecular Sieve Desiccant Filling Machine
1. Molecular sieve Machine height can be adjusted according to the size of spacer frame
2. Automatic desiccant filling machine Adopt Siemens PLC control system,Touch screen interface, easy operation.Electrical component are all Germany Brand-Siemens.
3. Desiccant filling machine have Protection device for machine head.
4. Molecular sieve filling machine can auto drilling, filling and sealing.
5. Molecular sieve can automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
6. All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
7. All spare parts have ID Number for offering the convenience in after sales service.
8. Filling time can be adjusted according to the size of spacer frame in the touch screen.Touching screen interface, simple and visible;F
9. Also has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.
10. Easy and safe for adding glue.
Technical parameter of automatic molecular filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Related products
Manual Molecular sieve filling machine LJGJ03
Manual Molecular sieve filling machine used for filling molecular sieve into spacer frame to improves quality of insulating glass
Main feature
1. Can effectively fill desiccant and keep dry
2. Manually filling desiccant into spacer frame
3. The desiccant can be recyclable
4. Easy operating, simple and flexible
Technical parameter
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
