Product Details:
|
| Certification: | CE | Production Name: | Auto Desiccant Filling Machine |
|---|---|---|---|
| Application: | Making Insulating Glass | Fuction: | Desiccant Filling |
| Aluminum Specifications: | 6A-27A | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Optional: | Big Barrel |
| Dimension: | 1300*1100*3600mm | ||
| High Light: | glass filling machine,desiccant filler,Desiccant Filling Machine Molecular Sieve |
||
Main feature of Auto desiccant filling machine
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Adopt Siemens PLC control system
• Touch screen interface, easy operation
• Core parts are imported brands
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)

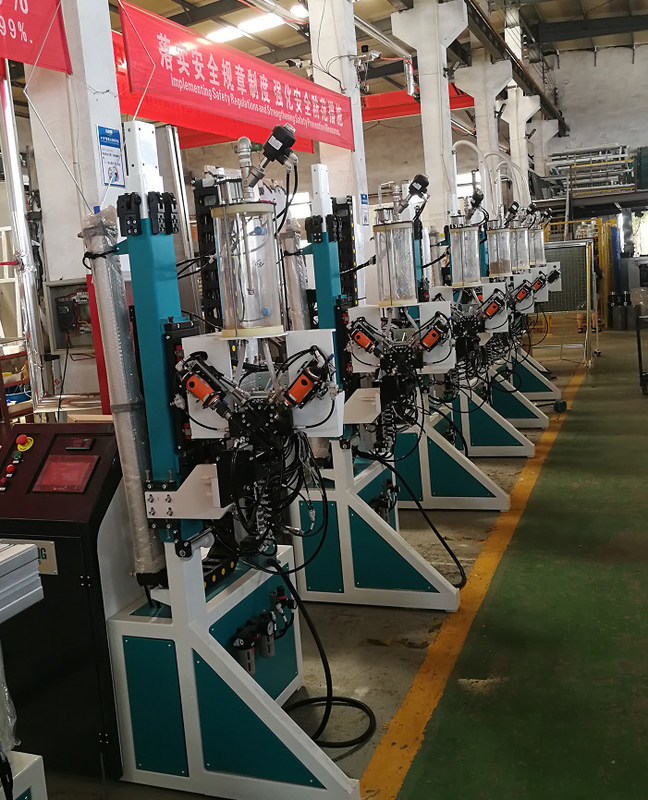

Product overview of Auto Molecular sieve Filling Machine
Automatic molecular sieve Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Automatic molecular sieve Filling Machine can automatically achieve actions of drilling holes automatically in the Aluminum spacer frames, filling desiccant and sealant.
Automatic molecular sieve Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.
Details of auto Molecular Filling Machine
1.Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
2. Machine height can be adjusted according to the size of spacer frame
3.Electrical component are all Germany Brand-Siemens.
4.Auto drilling, filling and sealing function
5.Protection device for machine head.
6.Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
7.All spare parts have ID Number for offering the convenience in after sales service.
8.Easy and safe for adding glue.
9.This model has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.
10.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
Main technical parameter of molecular sieve filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
