Product Details:
|
| Certification: | CE | Production Name: | Molecular Sieve Filling Machine |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Aluminum Specifications: | 6A-27A | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Optional: | Big Barrel |
| Dimension: | 1300*1100*3600mm | Application: | Insulating Glass Making |
| High Light: | 6A Desiccant Filling Machine,0.9mm Desiccant Filling Machine,PLC Controlled Desiccant Filling Machine |
||

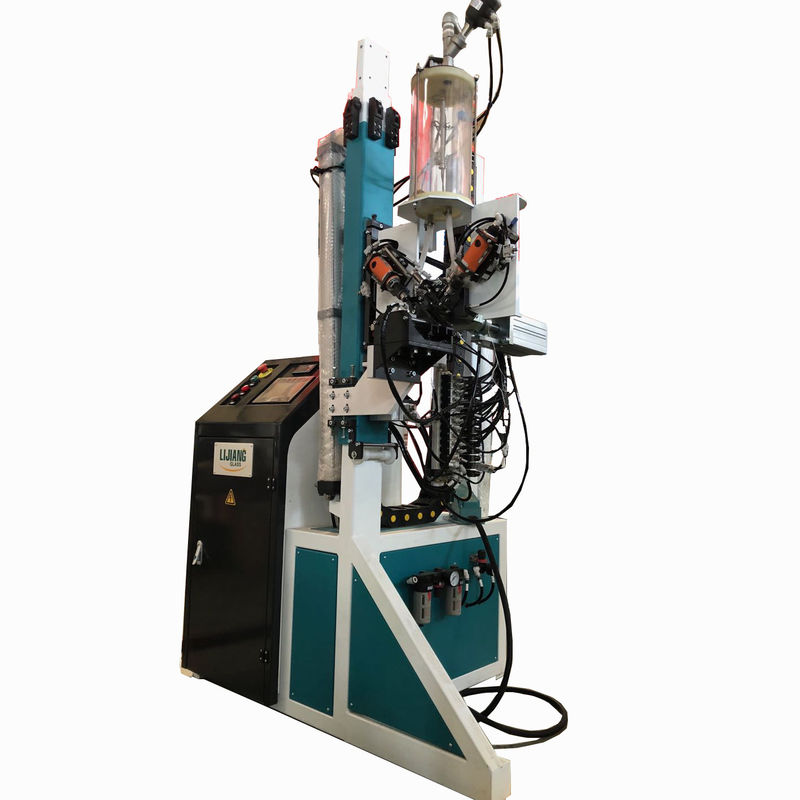

Overview of Desiccant Automatic Filling Machine
Desiccant Automatic Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant.
Desiccant Automatic Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.
Desiccant Automatic Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Detail of Automatic Automatic Molecular Sieve Desiccant Filling Machine
1. Molecular sieve Machine height can be adjusted according to the size of spacer frame
2.Automatic desiccant filling machine Adopt Siemens PLC control system,Touch screen interface, easy operation.Electrical component are all Germany Brand-Siemens.
3.Desiccant filling machine have Protection device for machine head.
4.Molecular sieve filling machine can auto drilling, filling and sealing.
5.Molecular sieve can automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
6.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
7.All spare parts have ID Number for offering the convenience in after sales service.
8.Filling time can be adjusted according to the size of spacer frame in the touch screen.Touching screen interface, simple and visible;F
9. Also has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.
10.Easy and safe for adding glue.
Technical parameter of automatic molecular filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Related products

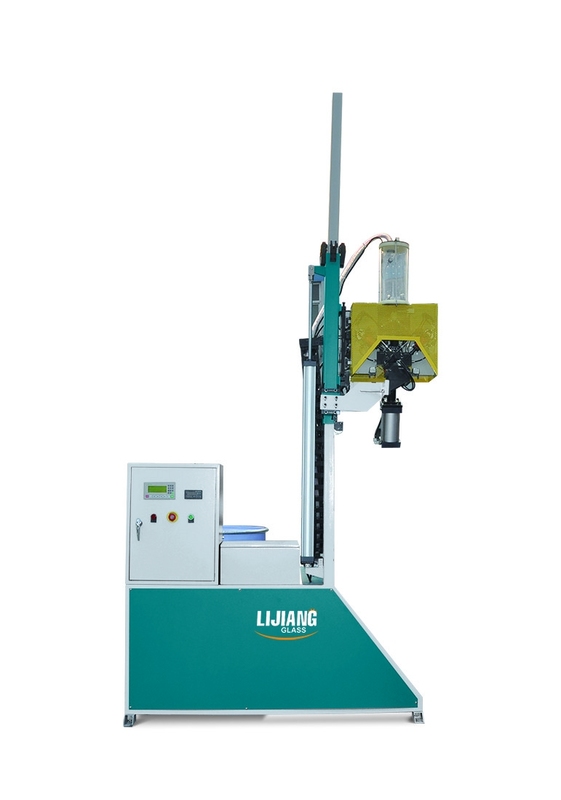

Manual Molecular sieve filling machine LJGJ03
Manual Molecular sieve filling machine used for filling molecular sieve into spacer frame to improves quality of insulating glass
Main feature
1.Can effectively fill desiccant and keep dry
2.Manually filling desiccant into spacer frame
3.The desiccant can be recyclable
4.Easy operating, simple and flexible
Technical parameter
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
