Product Details:
|
| Certification: | CE | Voltage: | 380V 50Hz 3P |
|---|---|---|---|
| Warranty: | 1 Year | Name: | Insulating Glass Processing Machine |
| Min. Glass Size: | 280*400 | IG Thickness: | 60mm |
| Max. Glass Size: | 2500*3500 | Washing Speed: | 2-10m/min |
| Maximum Working Speed: | 45m/min | Flat Glass Thickness: | 3-15mm |
| High Light: | Insulating Vertical Glass Washing Machine,Double Glazing Vertical Glass Washing Machine,Vertical Double Glazing Washing Machine |
||

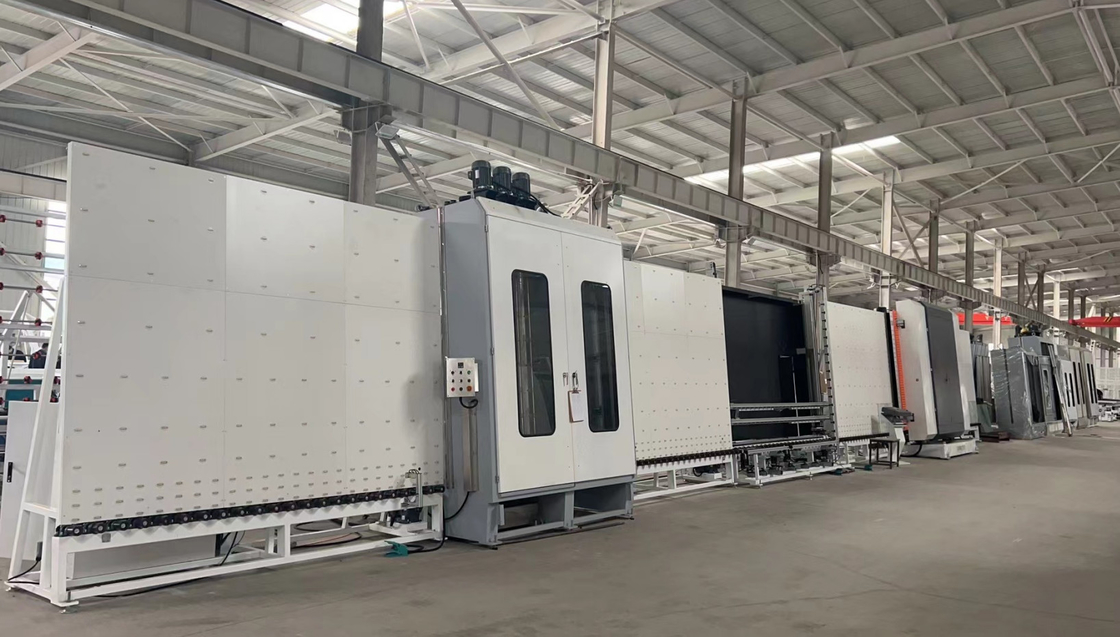

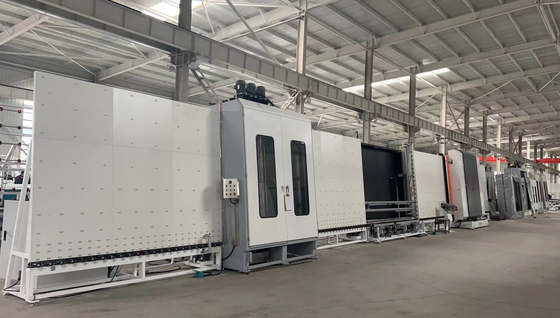

Vertical Glass Washing Machine Insulating Glass Machine Glass Production Line
Automatic Insulated Glass Production Line For Double Glazing Glass Processing
IGU production line adopts the latest technology, its main purpose is to create high-end quality, to provide customers with the latest production technology, improve production efficiency, save production costs and produce maximum benefits.
Details of the IG line :
Main Features
• The line has 7 sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
Details introduce of the Insulating Glass Production Line
Main feature
l Stable performance
l Online gas filling(option)
l High strength polymerization plastic spray back plate, folding structure except washing section, convenient for transport
l PLC control system, touch screen interface
l Coating&LOW-E glass automatic identification
l Can wash on-line&off-line glass
l Hierarchical type washing system
l Water tank automatic temperature control, water replenishing system
l European silencer system&stainless steel drying system
l Intelligent batch-type energy saving system
l Digital display&sealant depth adjustment device
l Adjustable matrix separating pressing system
l Automatic outside rotary glass positioning system
l Aviation plug cable connect way
l Triple IG , shaped IG automatic assembly and positioning system
l Universal wheel in tilting table has balance weight device
l Servo control stepped IG system, modularity function, superposition function
It can process the high level curtain wall according to customer’s demands.
1. What does our company do ?
LIJIANG GLASS is the manufacturer in Jinan city, China since 2012 year. We make the IG line, sealing robot, spacer bending machine, desiccant filling machine, butyl extruder machine and so on, porviding machines for all over the world with after sale service.
2. What is the IG line ?
The IG line is calles insulating glass processing line, it includes glass washing machine, spacer frame installation and glass pressing machine. We normally have 2000*2500, 2500*3500, 2500*4000 and 2500*4500 IG line. The types of the IG line are without filling argon and with filling argon gas. There are also two special IG lines, air floating IG line and super fast IG line (washing and pressing two IG units together).
3. How to package production line ?
One set of IG line normally needs two containers when shipping to foreign country, 2 pieces of 40HQ containers.
4. How to provide after-sales service ?
For India and the market aroud India, we have two Indian loal engineers, they can provide service in time.
For South America market, we have one engineer there to provide service.
For other market, we have the engineer team with 10 - 20 years experience, they will go to foreign customers' factory to install machine, train workers and provide after sale service in time.
Since the virus of the whole world, Our engineers are restricted to many countries in the world. So we provice installation service and trainning work online by Wechat, Whatsapp and so on. Once the world has a better suitation, our engineer will go to check our machines again.
Technical data
| Max. glass size | 2500mm*4500mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes with 0.1mm hair |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ |
| Dimension | 23500*3500*3700mm |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Servo motor for step glass | Japan | FUJI |
| Photoelectric switch | Germany | SICK |
| Micro Switch | Taiwan | TEND |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Guide | Taiwan | HIWIN |
| Pneumatic Components | Taiwan | AIRTAC |
