CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed

CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed
CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed
CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed

Large Image :  CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBZ 2535
Payment & Shipping Terms:
Minimum Order Quantity: ONE SET
Price: $89,547 each
Packaging Details: wooden box container
Delivery Time: 20 working days
Payment Terms: L/C, T/T
Supply Ability: 5 units per month
Contact Now

CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed

Description
Voltage: 3P 380V 50HZ Power: 40KW
Dimension(L*W*H): 23500mm*3500mm*3700mm Weight: 6500 Kg
Warranty: 1 Year
High Light:

Louver Curtain insulating glass line

,

CNC Insulating Glass Production Line

,

Louver Insulating Glass Production Line

Affordable Automatic High-speed CNC Inflation Vertical Insulating Glass Production Line Louver Curtain Film Machine on Sale
Product Description
CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed 0

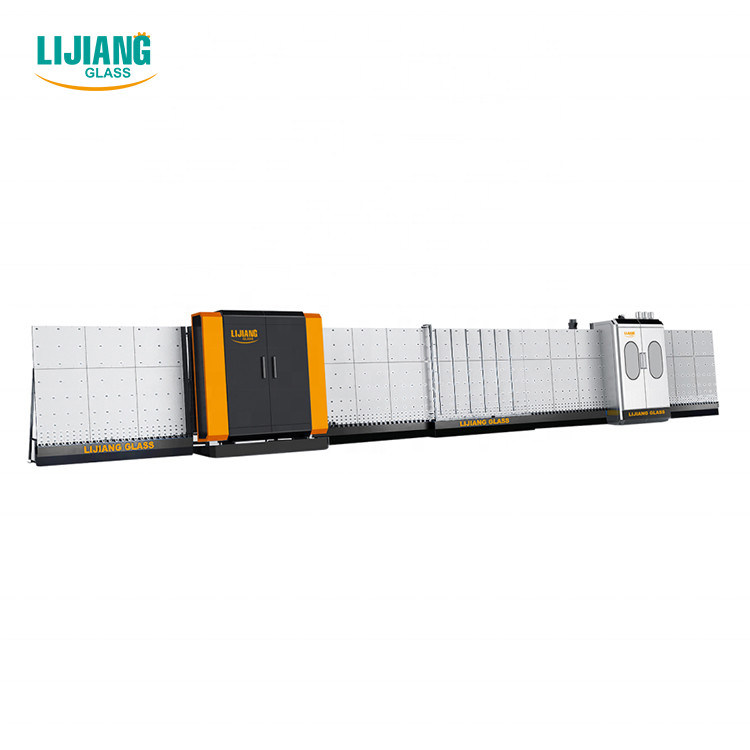

LJBZ2535 Automatic Insulating Glass Production Line

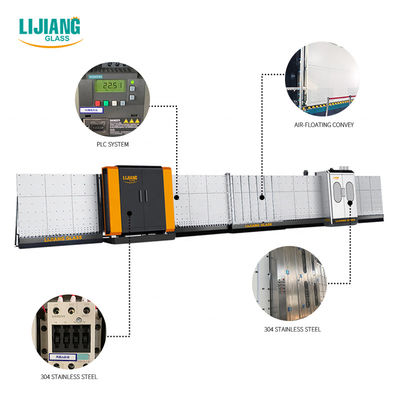

The whole LJBZ2535 Insulating Glass Production Line has 7 sections: 01 transfer section; 02 washing machine; 03 discharge section; 04 inspection and installation section; 05 transfer section; 06 pressing and filling section; 07 discharge section. Optional functions: •Step glass with optional edges •Shaped glass •Filling argon gas automatically •Air-floating technology to transfer glass •PLC control system, touch screen interface •Using Siemens servo motors •Applicable to produce double glass, triple glass To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.
CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed 1
CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed 2
The second part: the washing and drying section.
In this glass washing and drying section, there are three pairs of soft brushes and four pairs of water spray for washing and drying glass. The air knife is float designed, which part always keeps the right and suitable distance between the glass and air knife in the press and design section. ( Entirely as same as the LISEC ) The transfer wheel from this section: The front and back transfer wheel is all-direction moved, all actively transferred. Whatever the glass size is big or small, it always guarantees the glass pass through smoothly. ( Entirely as same as the LISEC ) The axle and bearing of brushes adopt all stainless steel, which could keep the machine can washing stabilized and using for a long time. The whole drying machine uses a sound insulation design, which could reduce noise pollution effectively.
CNC Vertical Insulating Glass Production Line For Louver Curtain High Speed 3
The 6th parts: the pressing and gas filling section.
In this section, it could adopts online input the suitable gas proportion value, all the data could showed off on the touch screen, and during the gas filling processing, the touch screen can show off the whole gas filing process visually. However, how to show off the percentage of the argon gas filling on the touch screen online, is the importance technology on insulating glass producing. Jinan Lijiang Glass, which is the first and the only one manufactory, could master this technology very well from China. There is no doubt that it could be very useful for customers, when argon gas are filling, it will show off the whole processing on the screen. When it reach the customers setting data, It will alarm and stop immediately. So it not only can save the argon gas, but also can save the processing-time. By the way, the bottom of gas filling is our special structure. (Entirely as same as the structure of LISEC) Whole press and gas filling section are divided into five parts (per 750mm), when the small size glass (less than 750mm) pass through the pressing and gas filling section, only one part could work. When the difference size glass, which glass is more than 750mm but less than 1500mm, pass through the pressing and gas filling section, it will two parts work, no need the whole press and gas filling section work, to saving more the argon gas.
