Product Details:
|
| Name: | Glass Cantilever Crane | Advantage: | With Lifting Sucker |
|---|---|---|---|
| Max Lifting Weight: | 1000KG | Suction Cups: | 4 Pieces |
| Sliding Method: | Manual | Air Control Parts: | Airtac |
| High Light: | 1000KG Vacuum Glass Lifter,Insulating Glass Vacuum Glass Lifter,Glass Cantilever Crane |
||

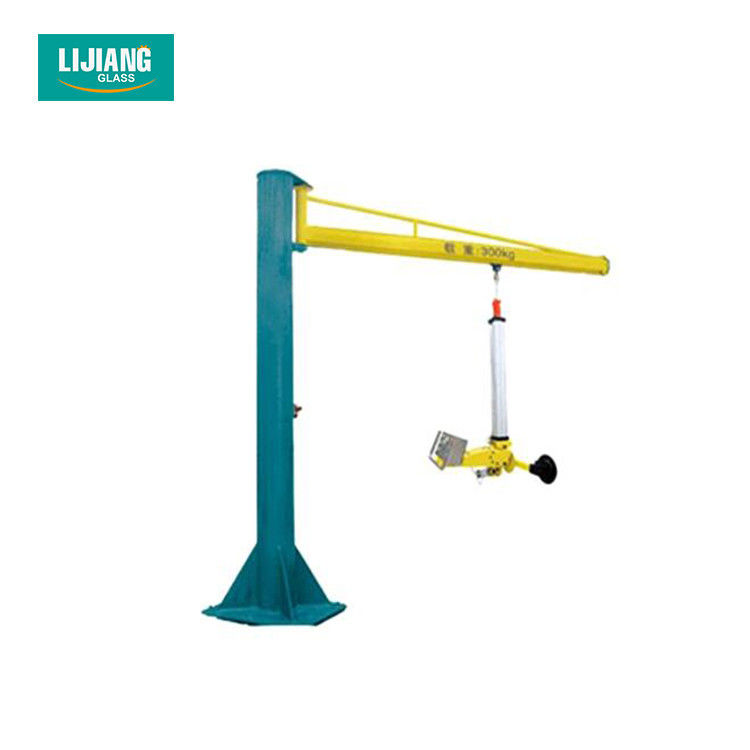

Vacuum glass lifter for Insulating Glass Manufacturing Machinery
Main Features of Vacuum glass lifter
Vacuum glass lifter can be used without external power supply.
The suction, release and rotation of the suction cup are all controlled by remote control. Each suction cup has a separate switch which can be used as required, and the suction cup holder has a telescopic rod which can be installed or removed as required.
Vacuum glass lifter and electrical components are manufactured by the Schneider brand of France, and the vacuum pressure control adopts the German Festoon brand, the electromagnetic valve and the pressure gauge and the filter adopts the Japan SMC, the remote controller adopts the Taiwan Yuding brand, and the gas pipe adopts the German Festoon and the Taiwan Airtac brand, and the sucker is a silicone suction cup.
Pneumatic glass handing manipulator is operated by using compressed air. The device does not use electricity and is safe and reliable, easy to operate. It is an essential glass handling tool for a modern glass processing industry. The air flowing through the vacuum generator causes Vacuum Pressure to suck the glass. A cylinder stroke is acted by receiving the command signal from the compressed air in an inlet pipe. The device is commonly used for glass handling work in glass factory processing lines, such as grinding, cleaning, tempered, laminated, insulated, etc.
Jib crane is common light lifting equipment in modern production.
It is fit for frequent lifting work of short distance between fixed positions.
It has advantages of high efficiency, energy saving, convenience, occupying a small area and easy operation and maintenance.
500-600 kg
This machine is reliable and safe, easy to operate.
The device is commonly used for glass loading and unloading work in glass deep processing process, such as cutting, grinding, cleaning, tempering furnace, lamination glass and insulated glass.
This device is usually used together with jib crane beam or gantry crane frame, depending on the client's requirements.
Other products of Lijiang Double Glass Machines
Aluminum Spacer bending machine
l 1*1m spacer frame was bend w 20s.
The error of spacer frame angle is within withib 10 um ,1mm=100 um
Size error 1mm
Shaped
l Can bend aluminum spacer /technoform /Alupro /thermix/
l Spacer automatically connect and cut.
l Machine automatically stop when the spacer use up.
l Support continuous bending , automatically avoid spacer connection while bending and cutting
l Automatically connect the spacer -connector
l Remote control function
l USB input function ,it can read the excel data directly
l Spare parts of all machine have ID code ,convenient for after-sale service
l Heavy duty connectors ,convenience and safety for installation and debugging
l Magnetic valve use Taiwan Airtac
l German Siemens plc control systerm
l Japan Fuji servo control system
l 12 storage spacer units (option)
l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)
(Stainless steel and warm edge spacer can not exist at one time )
l Drill hole for gas filling(option)
l Spacer inkjet printing ,various color is available for company logo or production date(option)
l Laber printing (option)
l Scanner scan two-dimension code ,bar code (option)
l Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
l ERP (optional)
Remark : Bending tool
*For rectangle frame there have three size (6A/9A/12A)was complimentary
Other size need pay extra 42$/per size
* For Circle ,Hexagon and Octagon frame , 300$/per size
Main technical parameter
| Max.bending size | 2000*2000mm |
| Min.bending size | 250*200mm |
| Aluminum spacer width | 6-27A |
| Arc Radius | 60°-150° |
| 6A-16A | |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| 1m*1m aluminum spacer | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Spacer Bending machine main components
| NAME | BRAND |
| PLC | GERMAN SIEMENS |
| Low voltage electrical apparatus | GERMAN SIEMENS |
| Servo motor | GERMAN SIEMENS |
| Servo driver | GERMAN SIEMENS |
| Relay | JAPAN OMRON |
