Product Details:
|
Name: | Vertical Insulating Glass Production Line | Insulating Glass Thickness: | 50mm / 60mm |
---|---|---|---|
Glass Washing Speed: | 2-10m/min | Washing Brushes: | 3 Pairs |
Air Pressure: | ≥0.8MPa | Total Power: | 380V 50HZ 40KWower |
High Light: | Automatic Insulating Glass Production Line,Double Glazing Insulating Glass Production Line,IG Double Glazing Making Machine |

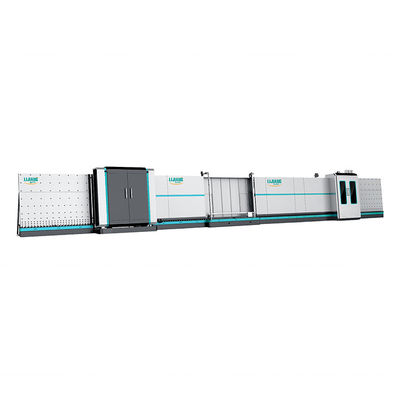

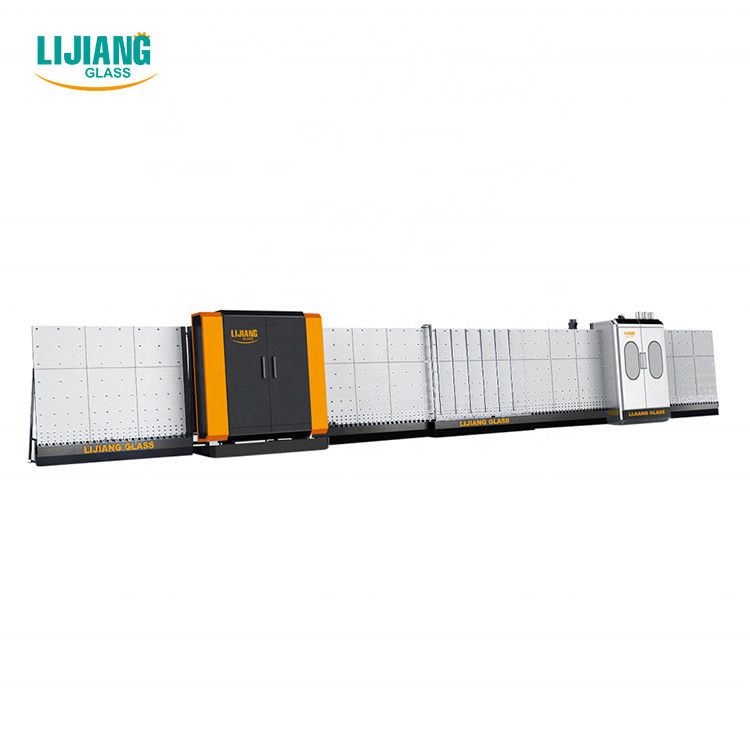

Vertical Insulating Glass Production Line LJBZ2535
Main Features of washing machine production line
• Using servo to control system, modular function, superposition function
• Applicable to produce stepped IG, triple IG and shaped IG
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Min & Max glass sizes can be optional

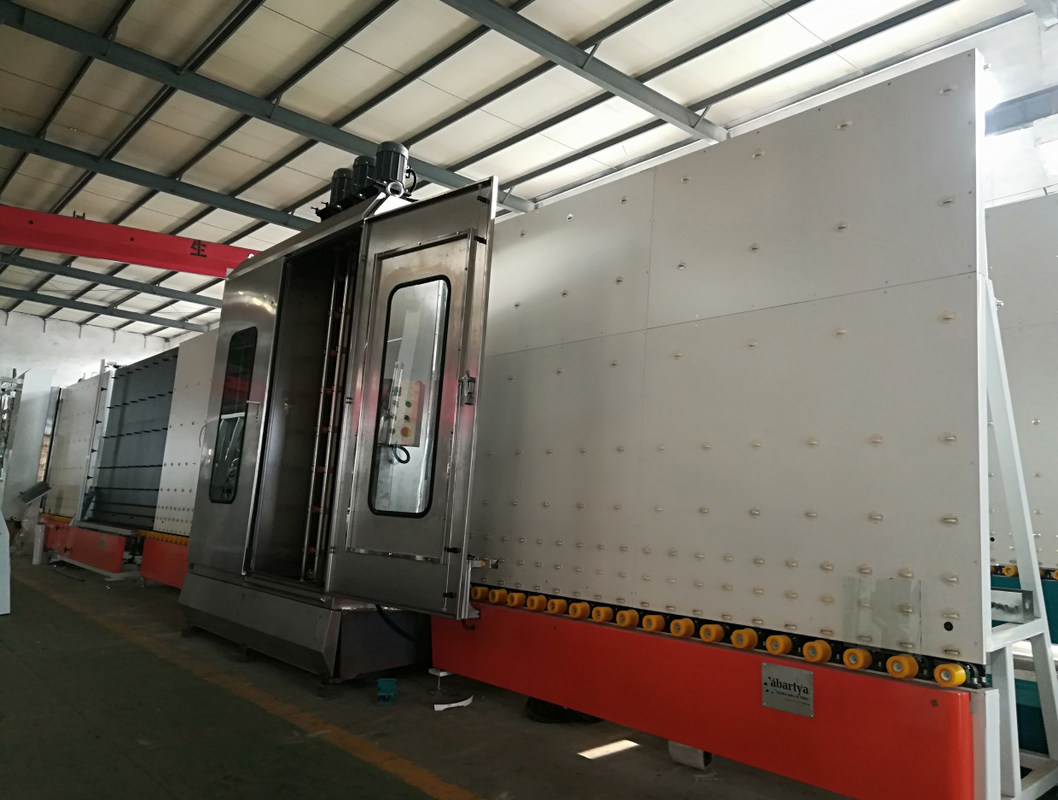

Main feature of glass cleaning machine
• Ultra-long insulating glass can be compressed with second times
• The machine adopts servo torque to pressing glass
• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet
• Equipped with a precisely adjustable front platen mechanism
• The system can diagnose fault information
• The pressing plate can be opened to 400mm width for easy maintenance
• Applicable to produce four-side step IG, triple IG and shaped IG
• Automatically filling argon gas inside the pressing plate with precise gas concentration
• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
• No need to drill holes in spacer frame
• Standard gas is Argon gas
• Fast reacting sensor for permanent control of gas filling process
Automatically set gas data and disp
Technical data of glass manufacturing machinery and equipment
Max. glass size | 2500mm*3500mm |
Min. glass size | 280mm*400mm |
Glass thickness | 3-15mm / 19mm |
Insulating glass thickness | 50mm / 60mm |
Glass washing speed | 2-10m/min |
Glass conveyor speed | 45m/min |
Washing brushes | 3 pairs |
Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
Air supply | Flow: 0.8m/min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50HZ 40KW |
Dimension | 23500*3500*3700mm |
Weight | 6500kg |
The company is committed to building high-end insulating glass machinery and equipment by learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes, such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached the highest leading level in China.
