Double Glazing Insulated Glass Production Line Jumbo Size 3300 * 7000mm For Insulating Glass

Double Glazing Insulating Glass Production Line Jumbo size 3300*7000mm For Insulating glass processing





Main feature of Double Glazing Insulating glass Processing Line

● German Siemens PLC control system, touch screen interface

● Automatic identification of coated Low-E glass

● 3 pairs of soft brushes can clean online and offline Low-E glass

● Washing machine uses SS material and waterproof device

● Adjustable press board to keep the pressed surface of the plate straight

● Aviation plug connection mode

● Water tank with automatic temperature control and water washing system

● Air heating system

● Air fan automatic start and stop setting

● Noise reduction system

● Applicable to the manufacture of triple IG and shaped IG

● Online display of washing speed

● Intelligent intermittent work, energy saving

Options of Automatic Jumbo size double gas filling insulating glass line



1.Pre-washing

2.Automatically accurate positioning for 3 or 4 side step IG

3.Automatic gas filling can set gas value and display the processing of filling online with high gas concentration



1. What is the IG line ?

The IG line type does not fill with argon, but fills with argon gas. There are also two special IG lines, an air floating IG line and an ultra-fast IG line (cleaning and pressing the two IG units together).

The IG line is called a double glazing line and includes a glass washer, spacer frame installation, and glass press. There are typically 2000 * 2500, 2500 * 3500, 2500 * 4000, 2500 * 4500, and 3300 * 7000 IG lines.

2. What does our company do ?

LIJIANG GLASS is a manufacturer located in Jinan, China since 2012. We manufacture proving machines all over the world with after-sales service such as IG line, double glazing seal robot, spacer bending machine, butyl extruder dryer filling machine.



3. How to provide after-sales service?

There are two Indian local engineers in India and the markets around India who can serve you in time.



In the South American market, there is one engineer who provides the service.



For other markets, we have a team of engineers with 10-20 years of experience, who go to foreign customers' factories, install machines, train workers, and provide after-sales service in time.



Since the worldwide virus, our engineers have been restricted to many countries in the world. That's why we offer online installation services and training work with Wechat, Whatsapp, and more. Once the world fits better, our engineers will go check our machines again.



4. How to package production line ?

One set of IG line normally needs two containers when shipping to foreign country, 2 pieces of 40HQ containers.





Details of Automatic Insulating glass production line :





• Vertical Insulating glass production line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.





• 01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

• 02 washing machine

Main feature:

• You can wash low-e glass with 6 soft brushes of 0.1mm soft hair

• The new air knife uses an aluminum profile (Duckville Air Knife) and the size of the air outlet is adjusted by the aluminum profile duck beak. This reduces the number of adjusting screws, prevents each screw from loosening, and avoids air knife resonance.

• The air knife can automatically adjust the width of the air knife according to the thickness.

• The operation box with the cleaning speed display can accurately display the cleaning speed (8-10m).

• Water tank automatic temperature control, water supply system

• European silencer system

• Stainless steel material



• 03 discharge section

• Storage glass

• 04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass.

• 05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

• 06 pressing and filling section



Main feature:

• Ultra-long glass can be compressed by twice

• Adopts conveyor belt to transfer glass, use servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

• 07 discharge section

• Storage glass

• Can be connected to sealing machine



Parameter of Vertical Automatic Insulating Glass Production Line



Unit		LJBZ3370
Voltage		380V50Hz3P
Total power	KW	54.5
Washing speed	m/min	2-10
Maximum working speed	m/min	45
Minimum glass size	mm	450*280
Maxmum glass size	mm	3300*7000 3000*3000 (Double press)
Flat glass thickness	mm	3-30
Washing brushes	Pieces	6
Maximum thickness of insulating glass	mm	80
Total gas consumption	L/min	1500
Conveyer roll height	mm	520
Dimension (L*W*H)	mm	47200*3500*4500

Electrical parameters

NAME	ORIGIN	BRAND
PLC	Germany	SIEMENS
Low voltage electrical appliance	Germany	SIEMENS
Frequency converter	Germany	SIEMENS
Servo motor for step glass	Japan	FUJI
Photoelectric switch	Germany	SICK
Micro Switch	Taiwan	TEND
Button and indicator light	France	SCHNEIDER
Touch screen	Taiwan	WEINVIEW
Intermediate relay	Japan	OMRON
Brush motor	China	QINGHUA
Water pump	China	LINGXIAO
Guide	Taiwan	HIWIN
Pneumatic Components	Taiwan	AIRTAC

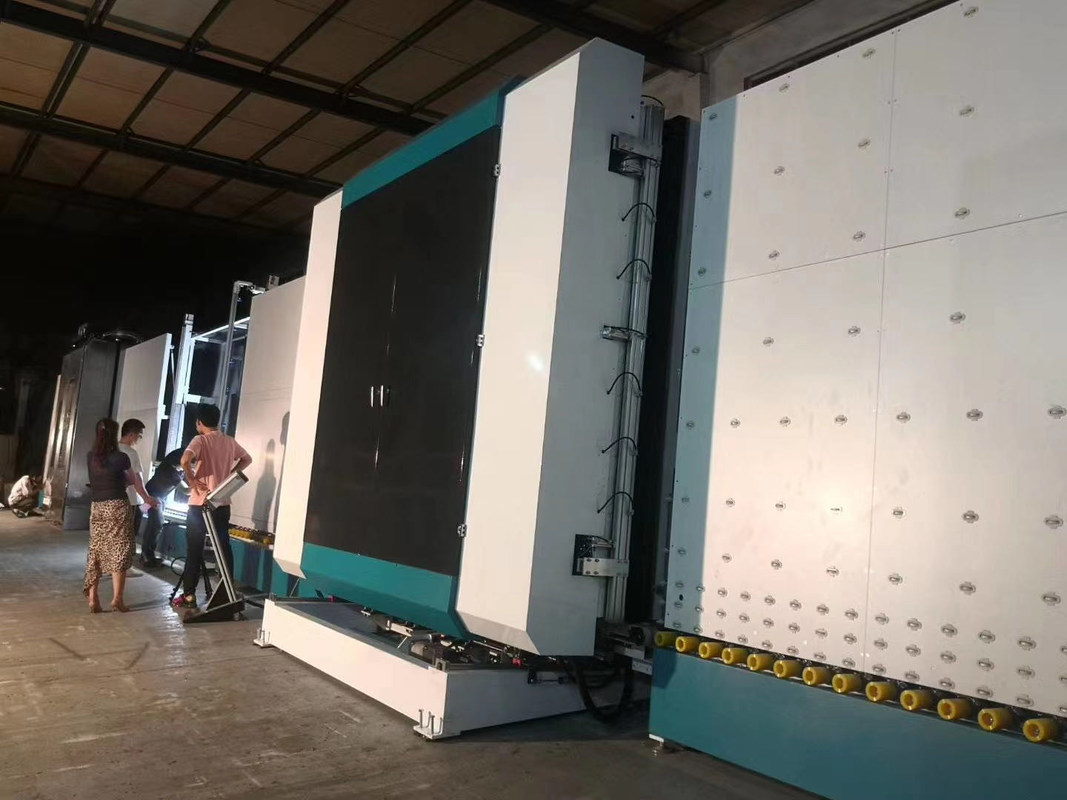

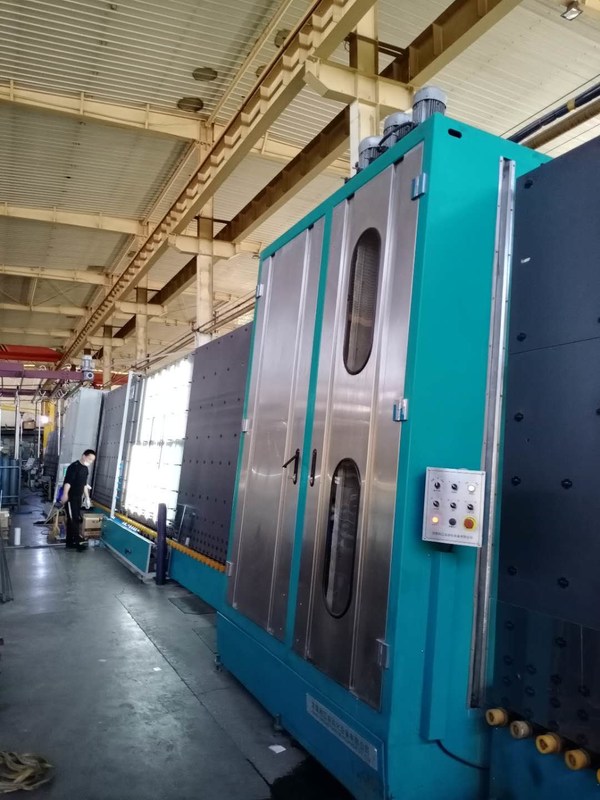

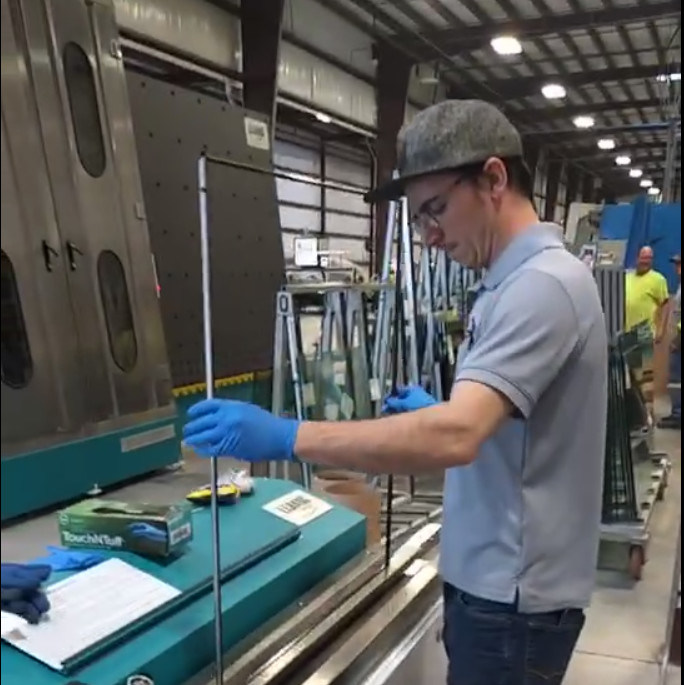

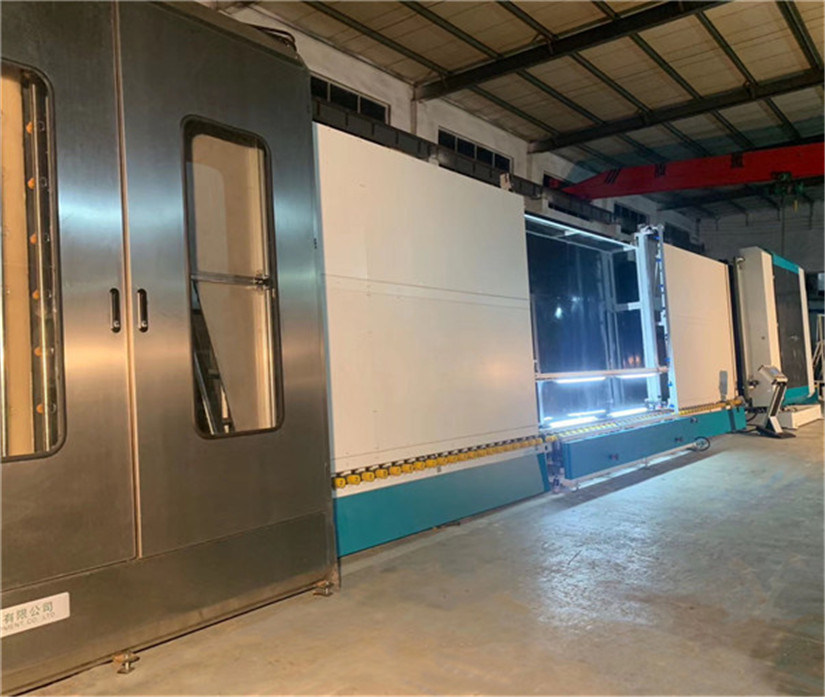

Pictures of automatic insulating glass production line
