Product Details:
|
| Name: | Automatic Spacer Bending Machine | Advantage: | Warm Adge Spacer Can Be Bendable |
|---|---|---|---|
| PLC: | Siemens | Max. Bending Size: | 2000mm*2000mm |
| Min. Bending Size: | 250mm*200mm | Aluminum Spacer Width: | 5.5-27mm |
| High Light: | Insulating Glass Spacer Bending Machine,Automated Spacer Bending Machine,Glass Processing Spacer Bending Machine |
||

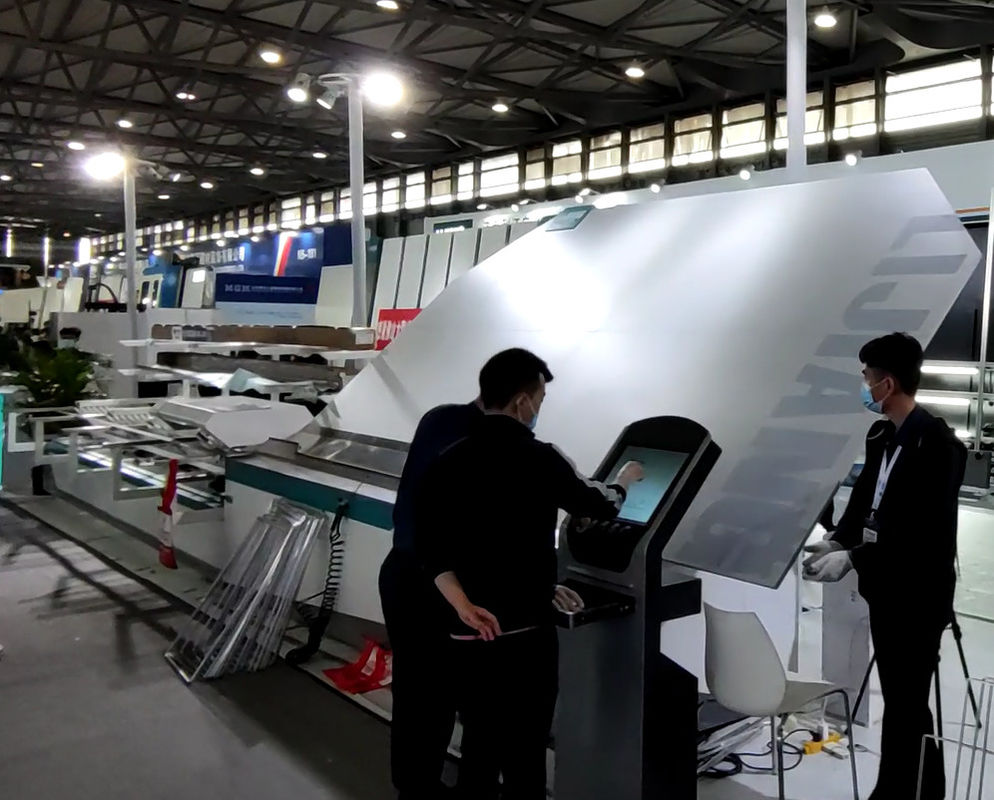

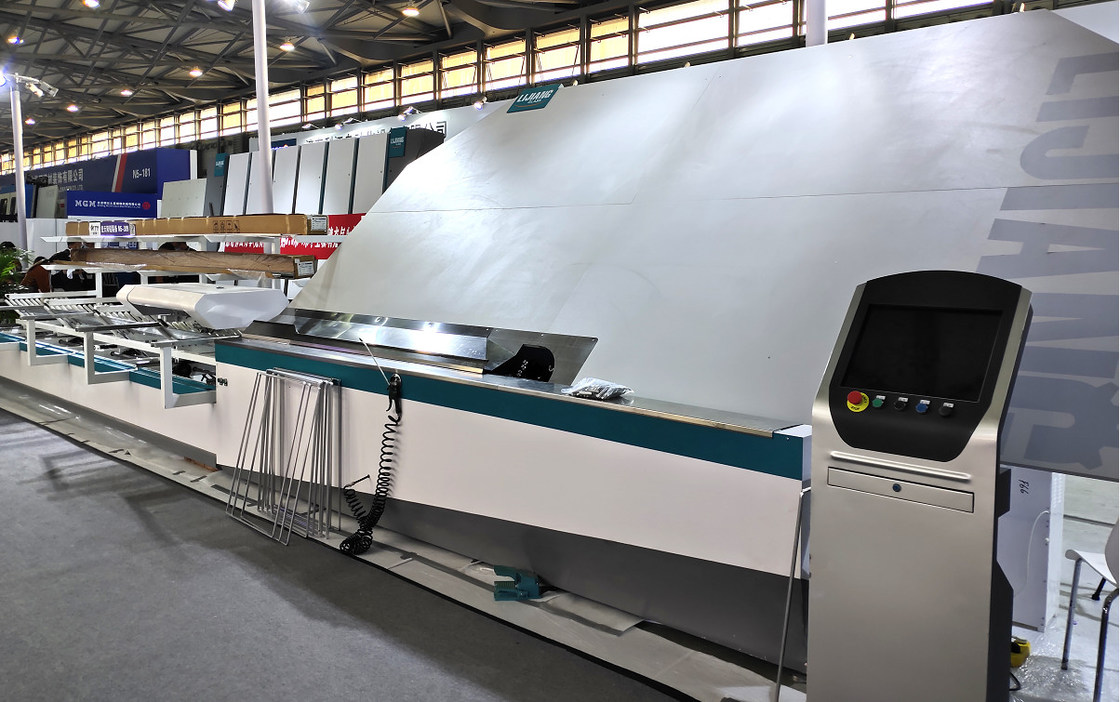

Automatic Spacer Bending Machine of Insulating Glass LJZW2020
Main feature►►►
• Germany Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Using servo system to control feeding mechanism
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
Main feature►►►
• USB input function, read the excel format file directly etc (Optional)
• Stainless steel (Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
►►►Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
►►► Perfect Coner of Warm Adge Spacer Bending Result
Technical data
| Max. bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Aluminum Sapcer
Performance:
Material of Insulating glass benable aluminum spacer bar is 3003 alloy aluminum,Adopt international advanced roll forming technology high-frequency welding process, without destroying the molecular structure of raw materials, ensuring molecular sieve activity, no splitting during bending and filling.
The high-frequency welding aluminum spacer has the international standard height and perfect cross section, and the surface is
bright, beautiful and single-sided double-row holes to ensure the activity of the desiccant. Strictly control the procurement and
production errors of raw materials, no deformation, accurate and stable size, from product quality to product appearance are
perfect.
Remark:
1.Thickness is customized according to requirements
2.The packing quantity of each carton is decided by model, thickness and length
3.limit deviation of peripheral wall thickness is ±0.025mm.
Overview of Automatic PIB Extruder machine
Automatic PIB extruder machine is used for spreading aluminum spacer frames evenly with hot melt butyl. The operation of the butyl extruder is more easier than before,it uses large electrical control panel . The conveyor of aluminum is controlled by frequency converter. The speed can be adjusted from 0m/min to 47m/min. LJTB01 Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.
Main feature of Automatic PIB butyl Extruder machine
● The coating glue speed can reach 47 m/ min
●Saving glue by compared with ordinary machine.The glue valve integrated control can reach 7g/m
●The height adjustment of beam is convenient, effective to solve the problem of white line
●Manual exhaust, simple operation
●Adopt non adhesive synchronous belt, talc powder is not
●Use touch screenoperation,simple trial
●Adjust the glue output automatically according to the speed change
●Main accessories are made of German brand,PLC program control, stable performance
●Adopt brand hydraulic system to ensure uniform and full rubber output
●Using movable vertical glue release and horizontal coating, convenient and practical
●The rubber cylinder adopts the pull-up structure, which is convenient for changing therubber
●Adjust the width of glue head automatically,ensure the double side gluing is consistent with the quick opening valve integrated control
Tech parameters of Automatic Butyl Extruder Machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Equipment details of Automatic Butyl Extruder Machine for Insulating Glass
Germany Siemens parts
PIB extruder machine Adopt Siemens brand, stable performance.
KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Automatically alarm system, reminding adding butyl.
Glue cylinder
Butyl extruder Adopt the upright structure, easy to change butyl.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Details of Automatic Butyl Extruder machine
Optional functions of butyl coating machine:
200L glue cylinder is optional
Related Products
1.Automatic Aluminum Spacer Bending Machine LJZW2020
Main feature
• Adopt Siemens PLC control system, touch screen interface
• Siemens servo control system
• Four spacer size storage units
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• USB input function, read the excel format file directly etc (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Can bend aluminum spacer and stainless steel ( Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
