Product Details:
|
| Name: | Automatic Spacer Bending Machine | Advantage: | Warm Adge Spacer Can Be Bendable |
|---|---|---|---|
| PLC: | Siemens | Max. Bending Size: | 2000mm*2000mm |
| Min. Bending Size: | 250mm*200mm | Aluminum Spacer Width: | 5.5-27mm |
| High Light: | Insulating Glass Gasket Bending Machine,High Speed Gasket Bending Machine,Gasket Bending Machine For Insulating Glass |
||

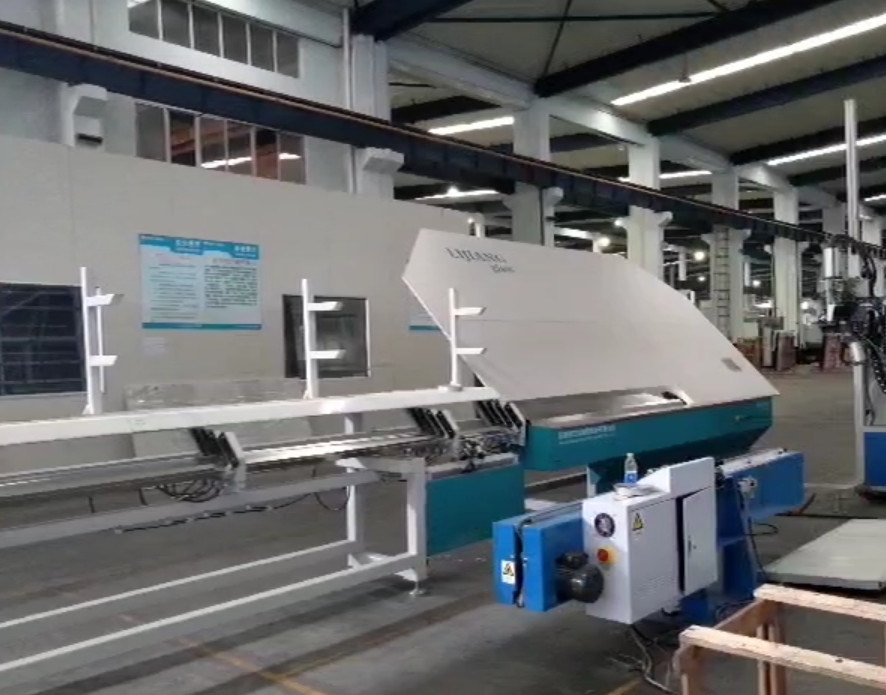

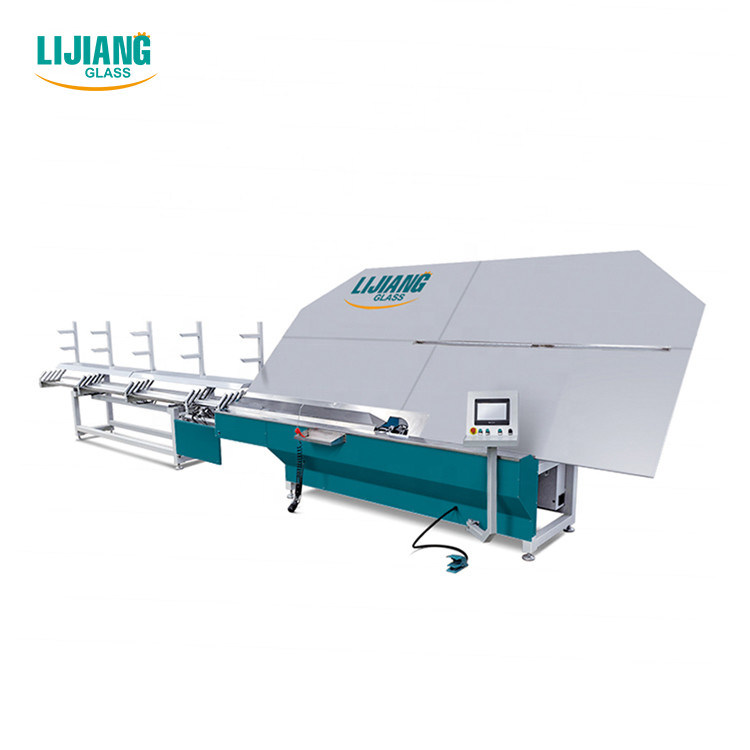

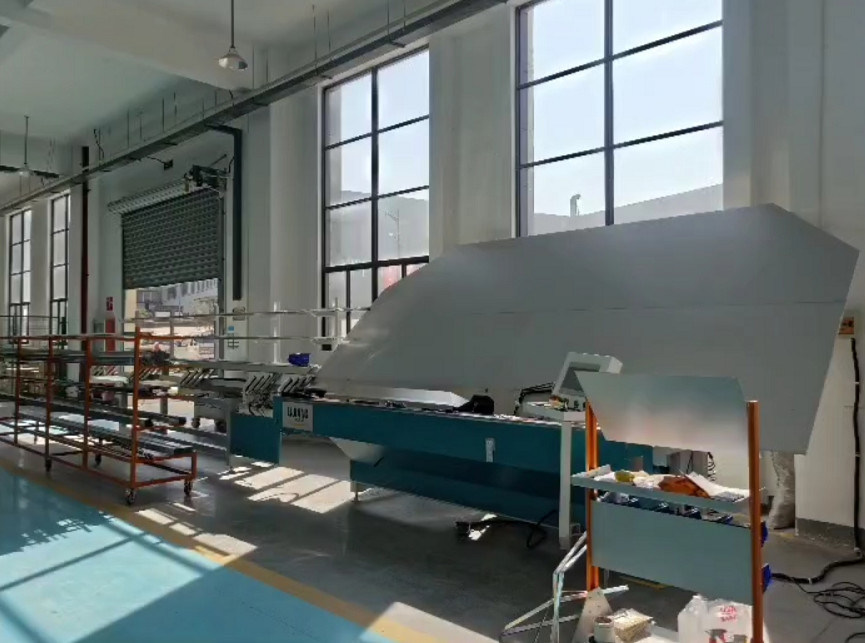

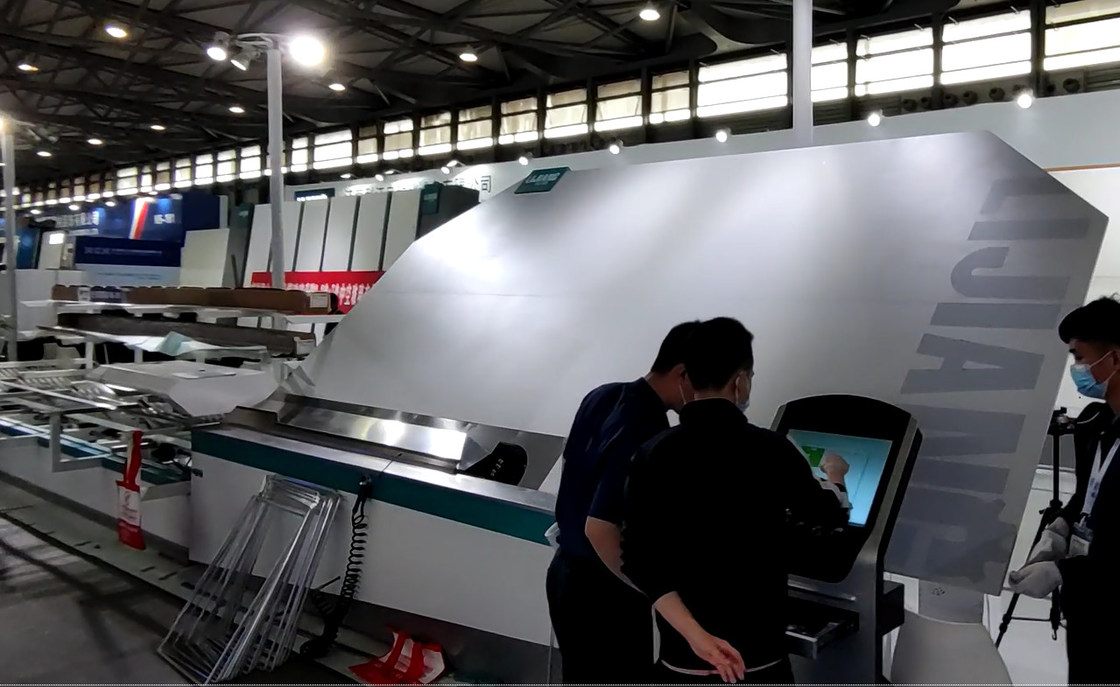

High speed insulating glass gasket bending machine for insulating glass processing
Main feature►►►
• German Siemens PLC control system, touch screen interface
• Japan FUJIC NC Servo Control System
• 4 spacer sized storage units
• Use a servo system to control the supply mechanism
• The aluminum spacer is automatically cut and sent.
• Auxiliary function for adjusting bending of large aluminum frame
• Aluminum spacers are available in a variety of sizes and sizes
• Continuously bend the shaped spacer frame
• Guard board isolated on the outside of the bender
• Automatically avoid connections during bending and cutting
• Suspend and reset the device to handle equipment failures
• Aluminum spacers, Technoform, Alupro, Thermomix, worm spacers can be bent (Swisspacer)
Main feature►►►
• USB input function, reading Excel format files directly, etc. (optional)
• Stainless steel (optional)
• Automatic drill gas filling hole (optional)
• Connect to ERP system (optional)
• Spacer print code function (optional)
• Printing of label sticker function (optional)
►►►The automatic spacer bending machine is a special device for manufacturing aluminum frames of double glazing, which replaces the conventional manufacturing technology. The device can create various convex polygonal aluminum frames with one aluminum strip at a time, which enhances the strength of the aluminum frame. , Improves the sealing effect of double glazing.
►►► Perfect Coner of Warm Adge Spacer Bending Result
Technical data
| Max. bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Aluminum Sapcer
Performance:
Insulating glass bible aluminum spacer bar is made of 3003 alloy aluminum, adopts high frequency welding process of international advanced roll forming technology without destroying the molecular structure of raw material, ensuring molecular sheave activity, bending and filling. It will not crack inside.
High frequency welded aluminum spacer has international standard height and perfect cross section, surface
Bright and beautiful double-row holes on one side to ensure desiccant activity. Strictly control procurement
Raw material manufacturing error, no deformation, accurate and stable size, from product quality to product appearance
Perfect.
Remark:
1. Thickness is customized according to your requirements
2. The packing quantity of each carton depends on the model, thickness and length
3. The marginal deviation of the peripheral wall thickness is ± 0.025 mm.
Overview of Automatic PIB Extruder machine
Automatic PIB extruders are used to spread the aluminum spacer frame evenly with hot melt butyl. The butyl extruder is easier to operate than before and uses a large electrical control panel. The aluminum conveyor is controlled by a frequency converter. The speed can be adjusted from 0m / min to 47m / min. The LJTB01 Butyl Extruder is a special device for manufacturing double glazing. As one of the important equipment for manufacturing double glazing, the effect of butyl adhesive is directly related to the sealing of double glazing. The device is automatic, easy to operate and easy to use.
Main feature of Automatic PIB butyl Extruder machine
● Coating adhesive speed can reach 47m / min
● Saves adhesive compared to regular machines. Integrated control of adhesive valve can reach 7g / m
● It is convenient to adjust the height of the beam, which is effective in solving the problem of white lines.
● Manual exhaust, easy operation
● Uses non-adhesive synchronous belt, does not use talc powder
● Touch screen operation, use a simple trial version
● Automatically adjusts the adhesive output according to changes in speed
● Main accessories are made with German brand, PLC program control, stable performance
● Adopt brand hydraulic system to ensure uniform and complete rubber output
● Convenient and practical with movable vertical adhesive release and horizontal coating
● The rubber cylinder has a pull-up structure, which is convenient for rubber replacement.
● Automatically adjust the width of the glue head and make sure the double-sided glue matches the quick opening valve integrated control
Tech parameters of Automatic Butyl Extruder Machine
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Equipment details of Automatic Butyl Extruder Machine for Insulating Glass
Germany Siemens parts
PIB extruder machine Adopt Siemens brand, stable performance.
KINCO Touch Screen
Clear interface, Simple operation, Smart touch screen,Updated programming.
Germany HAVE Valve
Adopt Germany’s Harvey valve, more stable performance.
Alarm system
Automatically alarm system, reminding adding butyl.
Glue cylinder
Butyl extruder Adopt the upright structure, easy to change butyl.
Germany Maximator Cylinder
The supercharging system adopts famous pneumatic and hydraulic cylinder, control the pressure of outlet oil strongly.
Details of Automatic Butyl Extruder machine
Optional functions of butyl coating machine:
200L glue cylinder is optional
Related Products
1.Automatic Aluminum Spacer Bending Machine LJZW2020
Main feature
• Adopt Siemens PLC control system, touch screen interface
• Siemens servo control system
• Four spacer size storage units
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• USB input function, read the excel format file directly etc (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Can bend aluminum spacer and stainless steel ( Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
Butyl Extruder Machine LJTB 03
Main feature
• PLC control system, touch screen interface
• Frequency control system
• Arc frame coating structure
• Imported pneumatic and hydraulic supercharging system
• Automatic centering and clamping structure
• Loading capacity up to 14KG, saving time for feeding glue
• Adopt five steps to control convey
• Preheating function,glue cylinder limit function,alarm system
• Covey and gluing mechanism adopts the latest design
Technical data
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Aluminum spacer width | 6A-27A |
| Speed | 0-40m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5KW,50HZ |
| Dimension | 2600×680×1100mm(L×W×H) |
| weight | 650kg |
