High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making

High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making
High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making

Large Image :  High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG
Certification: CE
Model Number: 9A
Payment & Shipping Terms:
Minimum Order Quantity: 1000 M
Price: usd 0.20 - 0.25
Packaging Details: Carton
Delivery Time: 10 work days
Payment Terms: L/C, T/T
Supply Ability: 200000 Meters per Month

High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making

Description
Product Name: Insulating Glass Aluminum Spacer Bar Material: Aluminum
Width: 5.5-35MM Package: Carton
Used: Insulating Glass Making
High Light:

35MM Aluminium Spacer Bar

,

3003 Aluminium Spacer Bar

high frequency welding hollow glass aluminum spacer bar for insulating glass

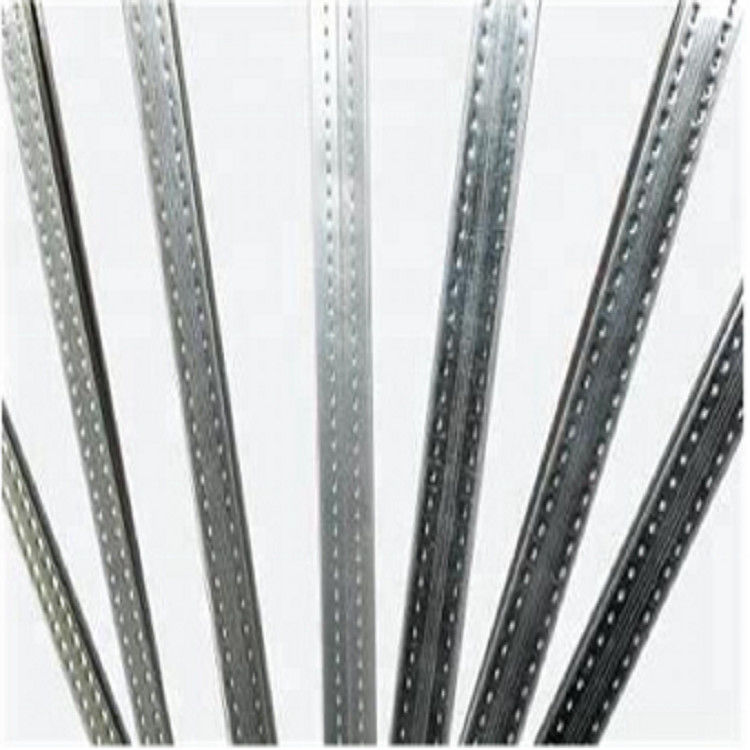

High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 0

The extruded sealant should have a smooth glass edge and no slippage.

Insulated glass ation, there are many sensors in the machine, it needs irrelevant

Preventing malfunctions by keeping people away from the machine

Threatens the safety of machines or individuals.
If it is necessary for a long time (5 minutes or more), it is necessary to open the timing sealant discharge function.

Extrude the sealant into a second glass to avoid mixer blocking
Carefully check the parameters and change the glass size parameters before extruding the sealant.

If you change the batch of glass, the thickness of the glass etc. will change in a timely manner.
If you use a different sealant, you will need to change the amount of sealant, as the viscosities can vary.
When starting work, you need to wait for the oil pressure to stabilize before starting extrusion.

The first glass sealant to prevent the sealant output from becoming unstable.



Product description and benefits:
1. Material: 3003 alloy aluminum
2.5.5mm side welding line, 100% bendable.
3. The wall thickness is within 0.30-0.35mm and the tolerance is ± 0.025mm.
4. Appearance: The surface is bright and smooth, and there is no knocking. The air holes are uniform and tidy.
5. It "conforms to the standard requirements for insulating glass"
6. Size: 5.5mm-35mm.

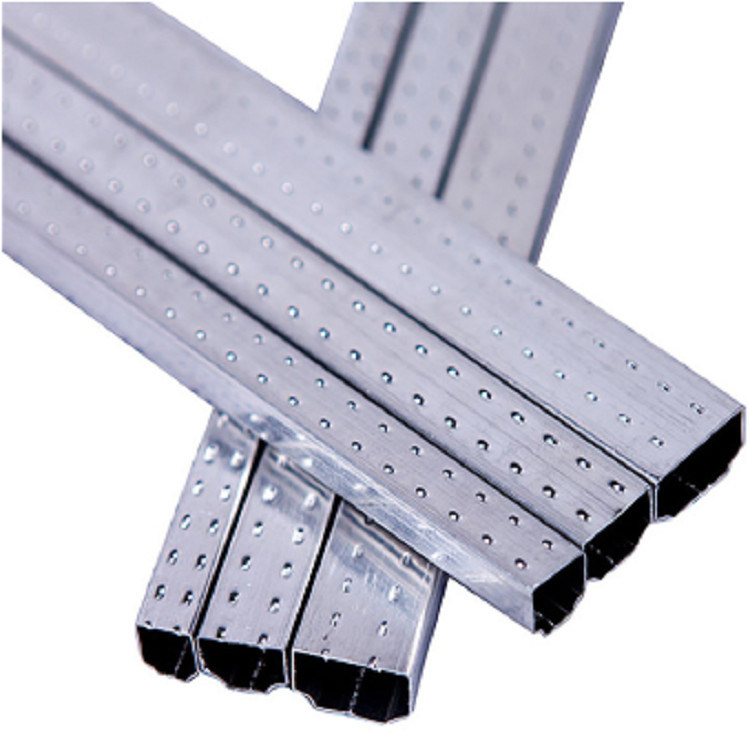

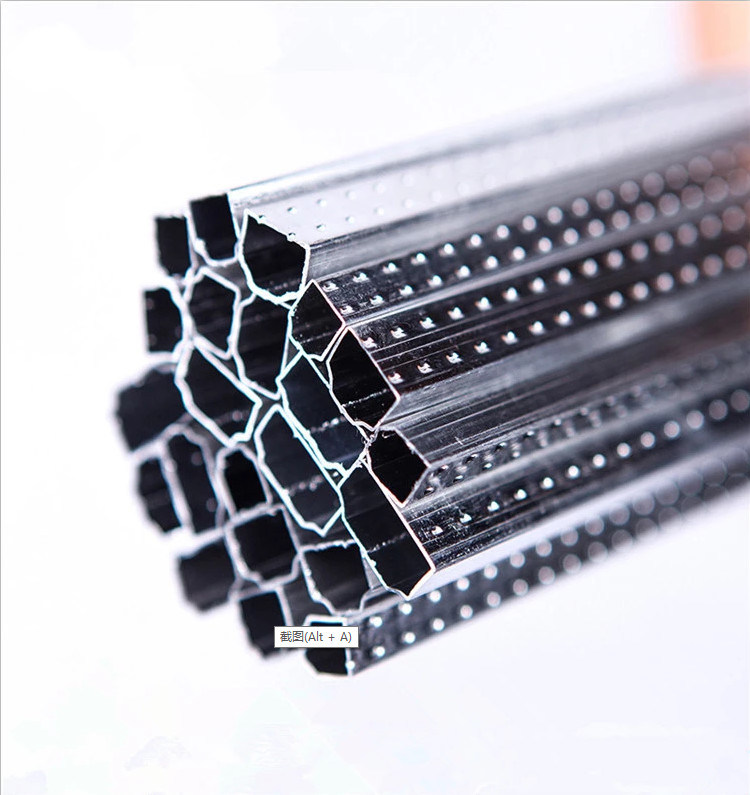

High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 1High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 2

It must be cleaned before turning off the machine. Press the "Clean Start" button

Clean start. In the meantime, observe the purged sealant. If the sealant turns white, press

"Clean stop" to stop cleaning. You can then turn off the machine.

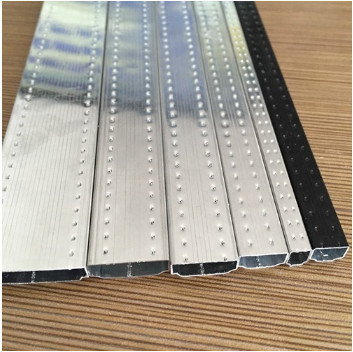

High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 3



Automatic spacer bending machine is a special equipment for making aluminum frames of

insulating glass, which replaces the traditional fabrication technology. This equipment can

make a variety of convex polygonal aluminum frames by one aluminum strip in one time,

thus strengthening the strength of the aluminum frame, making the sealing effect of the

insulating glass more better.



High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 4

•Siemens 1200 PLC control system with fast working speed
•4 groups of storages (2 or 12 groups of storages can be optional)
•Automatically cut and feed aluminum spacers
•Automatically avoid the pins while bending and cutting
Bend spacer frames continuously





aluminum spacer bending machine



Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.

High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 5High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 6



High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 7

Adopt Siemens PLC control system
There are 4 Siemens servo
Adopt 4 sets of racks which could storage more different sizes of spacers. Use Siemens servo to change different racks.
Automatically cut and feed aluminum spacers
Bend shaped spacer frames continuously
Automatically avoid the connecting corner while bending and cutting
The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.
The special machine hand device is used to bend big spacer frame


Technical data

Max.bending size 2000mm*2000mm (2500mm*2500mm)
Min.bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed ≤26s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



Electrical parameters



NAME BRAND NAME BRAND
PLC GERMAN SIEMENS Triplet Taiwan AIRTAC
Low voltage electrical apparatus GERMAN SIEMENS Cylinder Taiwan AIRTAC
Servo motor GERMAN SIEMENS Solenoid valve Taiwan AIRTAC
Servo driver GERMAN SIEMENS Switch power Taiwan TEND
Relay JAPAN OMRON TOUCH SCREEN Taiwan WEINVIEW
Sensor KOREA AUTONICS GUIDE Taiwan TBI



High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 8

High Frequency 35mm Aluminium Spacer Bar Insulating Glass Making 9
