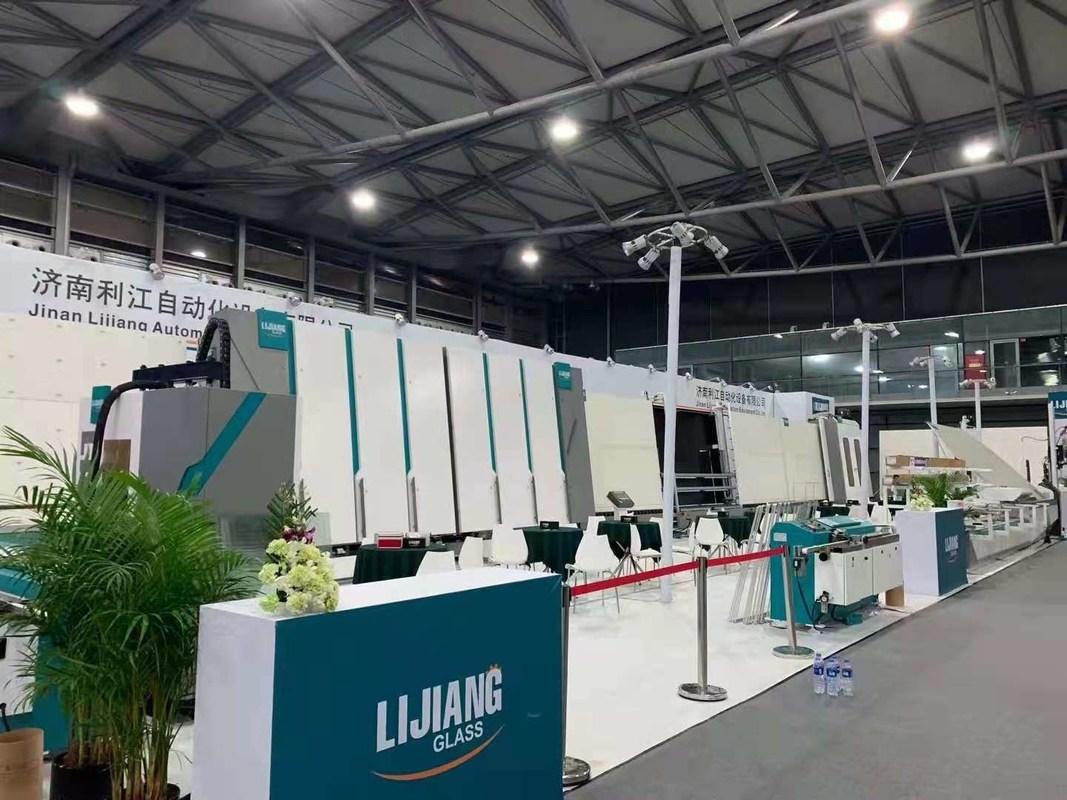

Double Glazed Insulating Glass Production Line Jumbo Size 3300*7000mm

Double Glazing Insulating Glass Production Line Jumbo size 3300*7000mm For Insulating glass processing





Main feature of Double Glazing Insulating glass Processing Line

●Germany Siemens PLC control system,touch screen interface

●Automatic identification of coated and Low-E glass

●3pair soft brushes can wash online and offline Low-E glass

●The washing machine adopts SS material and waterproof device

●Adjustable pressing board to keep the plate pressing surface straight

● Connection mode of aviation plug

●Water tank with automatic temperature control and water washing system

● Air heating system

●Air Fan automatic start and stop setting

●Noise reduction system

●Applicable to produce triple IG and shaped IG

●Online display of washing speed

●Intelligent intermittent work, saving energy



Options of Automatic Jumbo size double gas filling insulating glass line



1.Pre-washing

2.Automatically accurate positioning for 3 or 4 side step IG

3.Automatic gas filling can set gas value and display the processing of filling online with high gas concentration



1. What is the IG line ?

The types of the IG line are without filling argon and with filling argon gas. There are also two special IG lines, air floating IG line and super fast IG line (washing and pressing two IG units together).

The IG line is calles insulating glass processing line, it includes glass washing machine, spacer frame installation and glass pressing machine. We normally have 2000*2500, 2500*3500, 2500*4000 ,2500*4500 and 3300*7000 IG line.

2. What does our company do ?

LIJIANG GLASS is the manufacturer in Jinan city, China since 2012 year. We make the IG line, Insulating glass sealing robot, spacer bending machine, butyl extruder machine desiccant filling machine and so on, porviding machines for all over the world with after sale service.



3. How to provide after-sales service ?

For India and the market aroud India, we have two Indian loal engineers, they can provide service in time.



For South America market, we have one engineer there to provide service.



For other market, we have the engineer team with 10 - 20 years experience, they will go to foreign customers' factory to install machine, train workers and provide after sale service in time.



Since the virus of the whole world, Our engineers are restricted to many countries in the world. So we provice installation service and trainning work online by Wechat, Whatsapp and so on. Once the world has a better suitation, our engineer will go to check our machines again.



4. How to package production line ?

One set of IG line normally needs two containers when shipping to foreign country, 2 pieces of 40HQ containers.





Details of Automatic Insulating glass production line :





• Vertical Insulating glass production line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.





• 01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

• 02 washing machine

Main feature:

• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material



• 03 discharge section

• Storage glass

• 04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass.

• 05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

• 06 pressing and filling section



Main feature:

• Ultra-long glass can be compressed by twice

• Adopts conveyor belt to transfer glass, use servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

• 07 discharge section

• Storage glass

• Can be connected to sealing machine



Parameter of Vertical Automatic Insulating Glass Production Line



Unit		LJBZ3370
Voltage		380V50Hz3P
Total power	KW	54.5
Washing speed	m/min	2-10
Maximum working speed	m/min	45
Minimum glass size	mm	450*280
Maxmum glass size	mm	3300*7000 3000*3000 (Double press)
Flat glass thickness	mm	3-30
Washing brushes	Pieces	6
Maximum thickness of insulating glass	mm	80
Total gas consumption	L/min	1500
Conveyer roll height	mm	520
Dimension (L*W*H)	mm	47200*3500*4500

Electrical parameters

NAME	ORIGIN	BRAND
PLC	Germany	SIEMENS
Low voltage electrical appliance	Germany	SIEMENS
Frequency converter	Germany	SIEMENS
Servo motor for step glass	Japan	FUJI
Photoelectric switch	Germany	SICK
Micro Switch	Taiwan	TEND
Button and indicator light	France	SCHNEIDER
Touch screen	Taiwan	WEINVIEW
Intermediate relay	Japan	OMRON
Brush motor	China	QINGHUA
Water pump	China	LINGXIAO
Guide	Taiwan	HIWIN
Pneumatic Components	Taiwan	AIRTAC

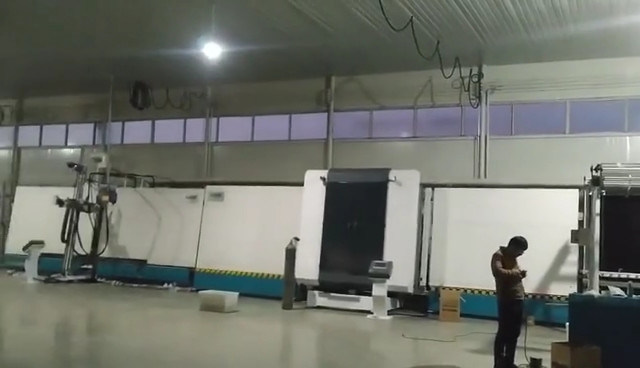

Pictures of automatic insulating glass production line
