Product Details:
|
| Voltage: | 380V 50Hz 3P | Condition: | NEW MACHINE |
|---|---|---|---|
| After-sales Service Provided: | Engineers Service | Product Name: | Automatic Butyl Extruder Machine |
| Warranty: | 1 Year | Application: | Making Double Glazing Glass Products Machine |
| Heating Time: | 15 Mins | ||
| High Light: | Spacer Bar Cutting And Bending Machine,Double Glazing Bar Cutting And Bending Machine,Double Glazing Double Glazing |
||

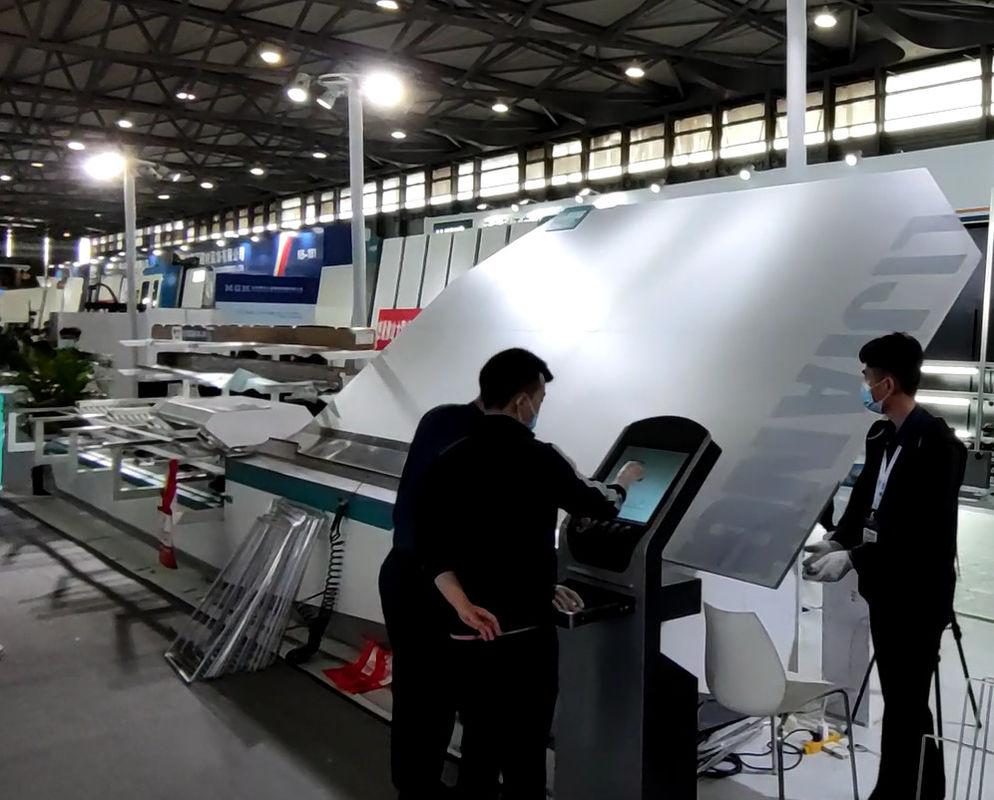

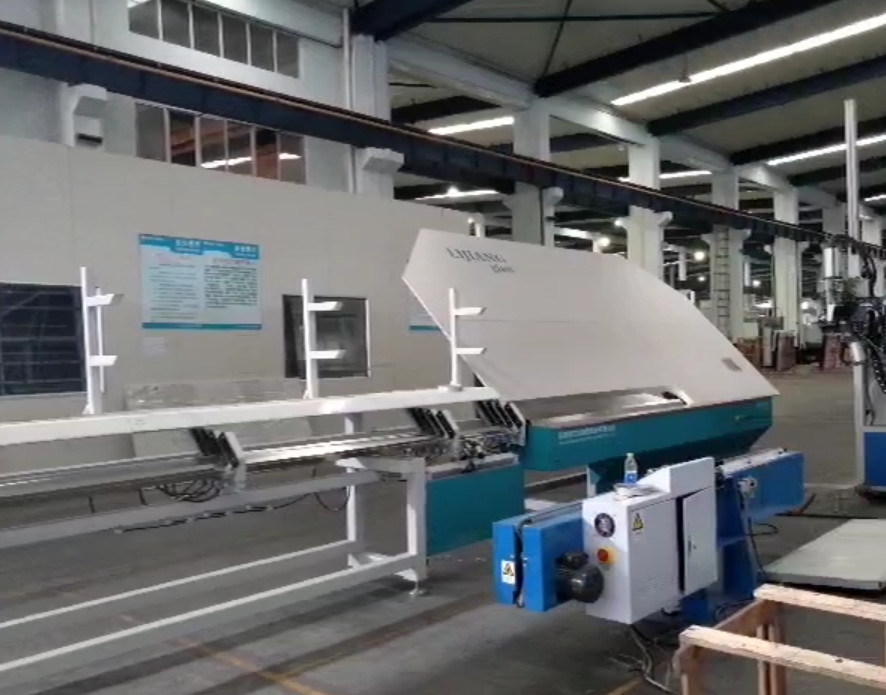

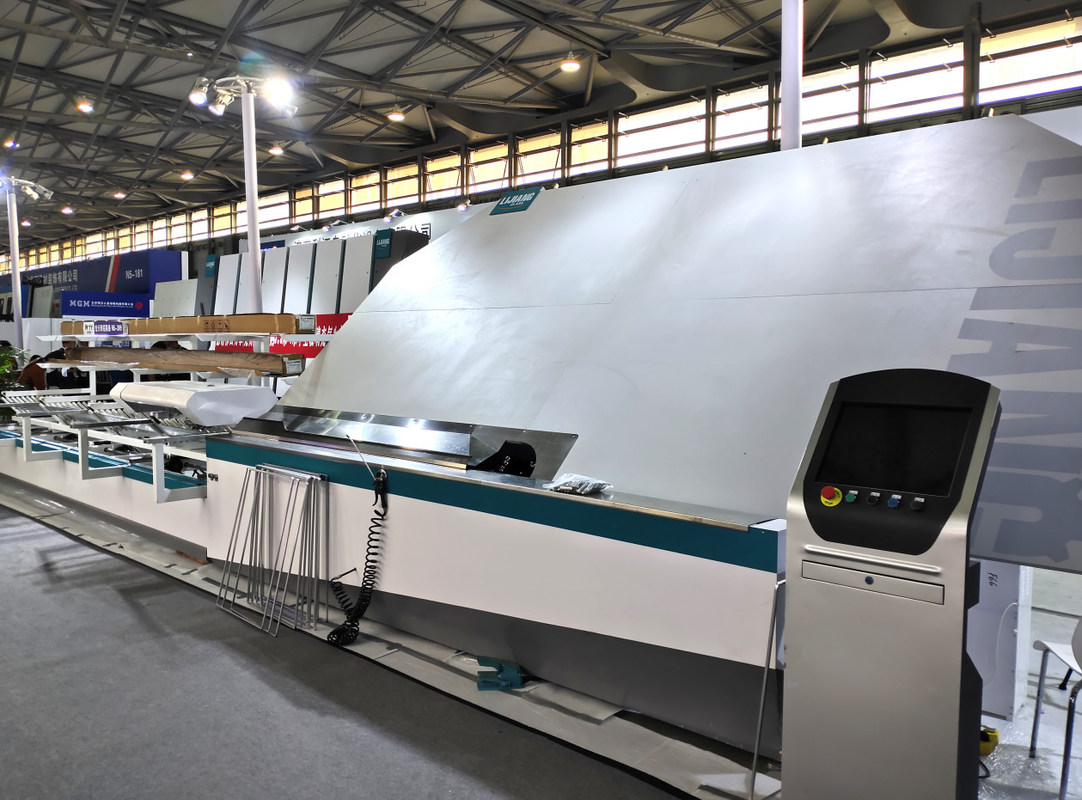

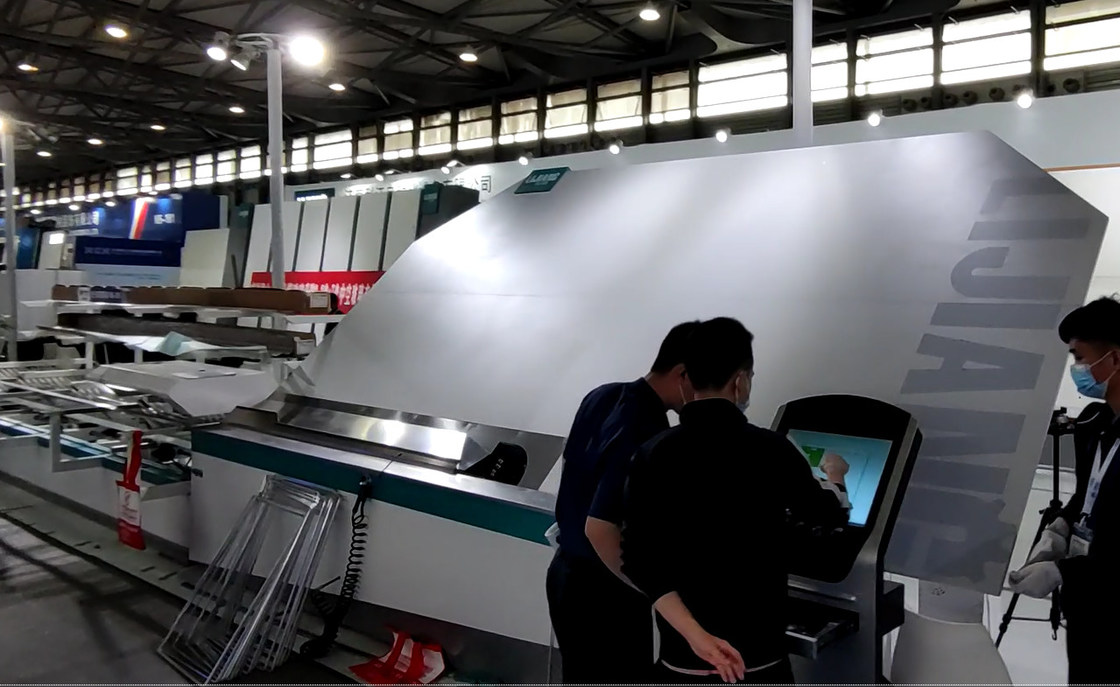

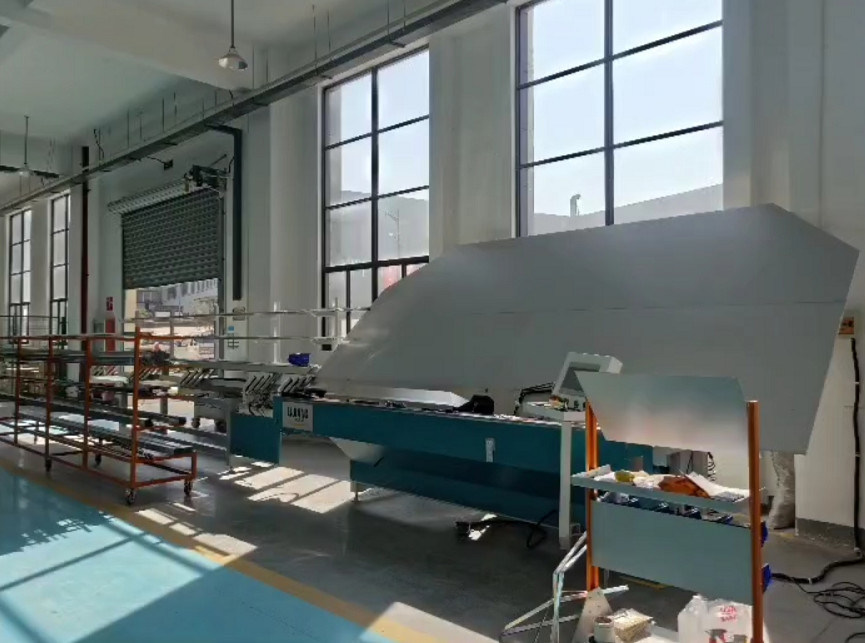

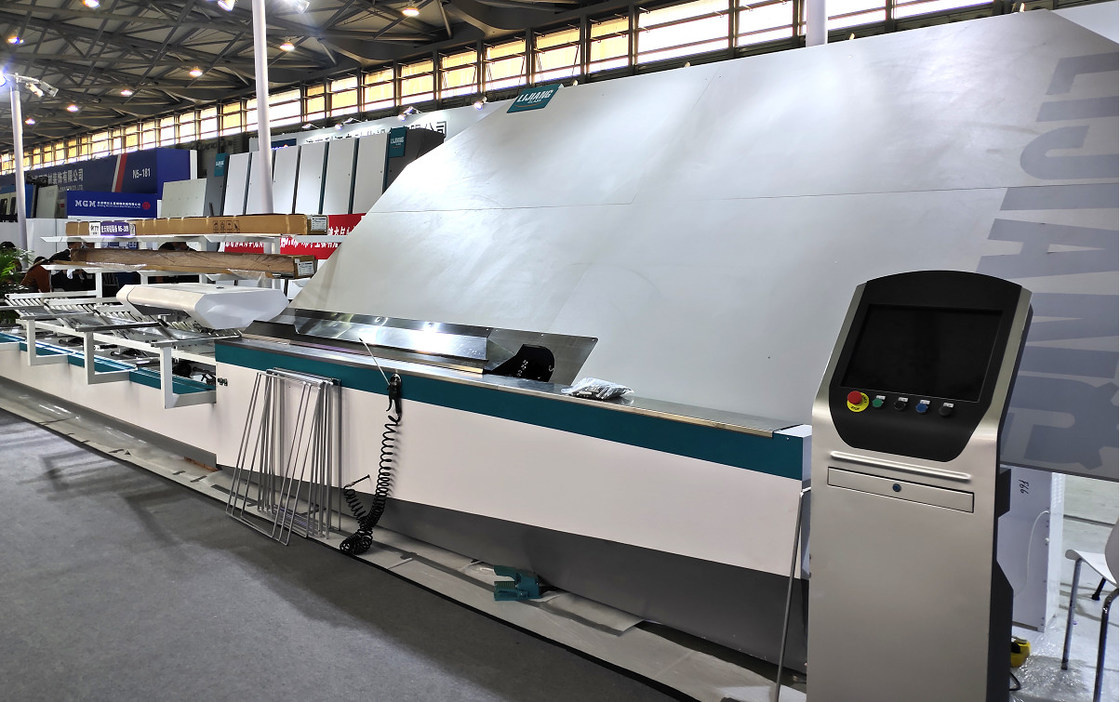

Automatically PLC Controlled Aluminum Spacer Bars Cutting And Bending Machine
l 1*1m spacer frame was bend w 20s.
The error of spacer frame angle is within withib 10 um ,1mm=100 um
Size error 1mm
Shaped
l Can bend aluminum spacer /technoform /Alupro /thermix/
l Spacer automatically connect and cut.
l Machine automatically stop when the spacer use up.
l Support continuous bending , automatically avoid spacer connection while bending and cutting
l Automatically connect the spacer -connector
l Remote control function
l USB input function ,it can read the excel data directly
l Spare parts of all machine have ID code ,convenient for after-sale service
l Heavy duty connectors ,convenience and safety for installation and debugging
l Magnetic valve use Taiwan Airtac
l German Siemens plc control systerm
l Japan Fuji servo control system
l 12 storage spacer units (option)
l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)
(Stainless steel and warm edge spacer can not exist at one time )
l Drill hole for gas filling(option)
l Spacer inkjet printing ,various color is available for company logo or production date(option)
l Laber printing (option)
l Scanner scan two-dimension code ,bar code (option)
l Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
l ERP (optional)
Remark : Bending tool
*For rectangle frame there have three size (6A/9A/12A)was complimentary
Other size need pay extra 42$/per size
* For Circle ,Hexagon and Octagon frame , 300$/per size
Main technical parameter of spacer bending machine
| Max.bending size | 2000*2000mm |
| Min.bending size | 250*200mm |
| Aluminum spacer width | 6-27A |
| Arc Radius | 60°-150° |
| 6A-16A | |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| 1m*1m aluminum spacer | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Spacer Bending machine main components
| NAME | BRAND |
| PLC | GERMAN SIEMENS |
| Low voltage electrical apparatus | GERMAN SIEMENS |
| Servo motor | GERMAN SIEMENS |
| Servo driver | GERMAN SIEMENS |
| Relay | JAPAN OMRON |
Main features of the automatic spacer bending machine :
• Siemens 1200 PLC control system with fast working speed
• 4 groups of storages (2 or 12 groups of storages can be optional)
• Automatically cut and feed aluminum spacers
• Automatically avoid the pins while bending and cutting
• Bend spacer frames continuously
• Aluminum spacers are available in sizes of 6A-27A
• Different bending tools for different sizes of spacers
• Pause and Reset device for handling equipment failures
• Bend aluminum spacer, smooth stainless steel, warm spacer
• Connect to ERP system (Optional)
• USB input function, read the excel format file directly
• Automatically drill holes for filling argon gas (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)
Technical data of spacer bending machine :
| Max. bending size | 2000mm*2000mm |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of spacer bender machine :
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
Related product of LIJIANG GLASS
Butyl Extruder Machine With Adjustable Gluing Nozzle
LJTB01 Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.
Optional functions:
Main performance features:
1. Glue application speed can reach 47m / min
2. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m
3. Unique design structure, with automatic exhaust function, to ensure continuous glue application
4. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning
5. The main accessories are German brands. PLC program control, stable performance
6. It is convenient and practical to use movable vertical and horizontal sealant
7. Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing
8. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently
9. Touch screen operation, simple and practical
10. Automatically adjust the glue output according to the speed change
12. The hydraulic system imported from Germany is adopted to ensure even and full glue delivery
14. The rubber cylinder adopts pull-up structure, which is convenient for operation
Specification parameters:
| Squeeze pressure | 10-18MPa |
| Temperature | 110~140℃ |
| Glue thickness | 0.3-0.5mm |
| Glue width | 3.5mm |
| Aluminum spacer width | 6A - 27A |
| Speed | 5-47m/min |
| Diameter of butyl cylinder | 200mm |
| Air supply | 0.4m³/min |
| Air pressure | ≥0.6MPa |
| Total power | 380V, 5.7KW,50HZ |
| Dimension | 2800×700×900mm(L×W×H) |
| weight | 650kg |
Electrical parameters :
| Name | Original | Brand |
| PLC | China | KINCO |
| Valve | German | HAWE |
| Low voltage electrical apparatus | German | SIEMENS |
| Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
| Frequency converter | China | KINCO |
| Pneumatic components | Taiwan | ARTAC |
| Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
| Travel light | Japan | OMRON |
| Optical fiber | Japan | OMRON |
