Product Details:
|
| Name: | Molecular Sieve Of Insulating Glass | Size: | Diameter 0.3cm |
|---|---|---|---|
| Characteristics: | High Strength,High Adsorption Capacity,Particle Uniformity | Optional: | Diameter Needed |
| Function: | Automatic Drilling Filling Sealing | The Mode Of Transportation: | Air Freight |
| High Light: | 3A Automatic Desiccant Filling Machine,Molecular Sieve desiccant filling machine,Molecular Sieve glass filling machine |
||
General description
MOLECULAR SIEVE, also named synthetic zeolite, this 3a molecular sieve has tetrahedron aluminosilicate and micropore with same internal surface area size, so that the molecular sieve was made the excellent selective absorbent.
Main specification
Characteristic of the selective shows up at absorbing due to 1st molecule size; 2nd molecule polarity; 3rd molecule unsaturation; 4th molecule boiling point. With the strong ability of absorbing in low absorate concentration and high absorption temperature, MOLECULAR SIEVE is used for deeply dehydration and purification the gas and liquid. Also it has good catalytic activity to uniformly and highly disperse the catalytic metal on the skeleton surface.
Main application fields
3A MOLEDULAR SIEVE works for the gas and liquid drying and unsaturated hydrocarbon dehydration in ethylene and propylene and oil&gas deep drying.
Main parameter
| Shape | Strip | Sphere | |||
| Dia(mm) | 1.5-1.7 | 3.0-3.3 | 2.0-3.0 | 3.0-4.0 | 5.0-6.0 |
| Wearing rate(w/w,%) | ≤0.20 | ≤0.25 | ≤0.20 | ≤0.20 | ≤0.20 |
| Compressive strength(KN/PC) | 30000 | 70000 | 30000 | 70000 | 80000 |
| Static water absorb rate(%) | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 |
| Package water percent(%) | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 | ≤1.5 |
| Bulk density(g/ml) | ≥0.7 | ≥0.7 | ≥0.7 | ≥0.7 | ≥0.7 |
Shipping
1. confirm order
2. receive deposit
3. start manufacurting: 12 working days
4. deliver to port
Sample
1. Free sample: no more than 300g or 10 pcs
2. Charged sample: 300g to 1000g
3. Courier

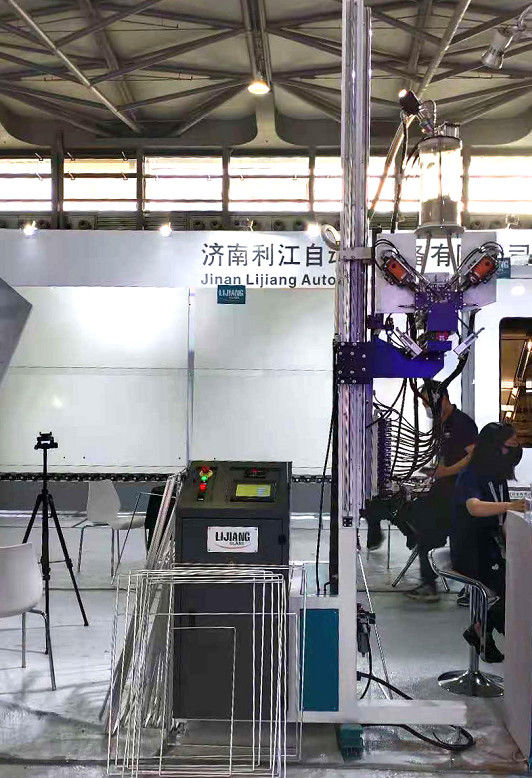

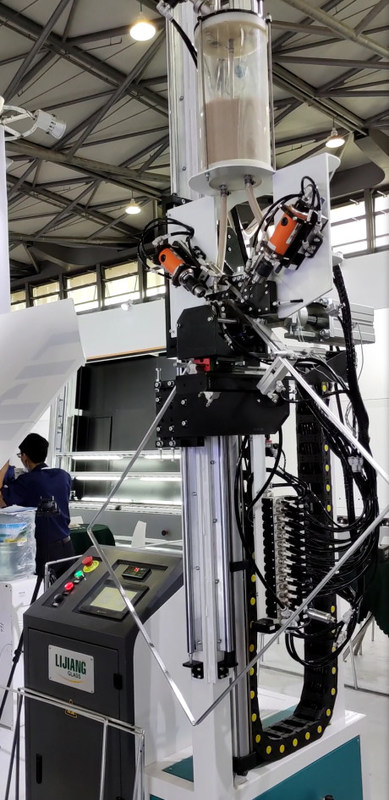

Automatic Desiccant Filling Machine can automatically achieve actions of drilling holes automatically in the spacer frames, filling desiccant and sealant.
Automatic Desiccant Filling Machine control system adopts Germany Siemens, so the speed of filling is quick and stable operation ensure the valid closure property of sealant.
Automatic Desiccant Filling Machine improves quality of insulating glass, it’s a necessary equipment in the process of insulating glasses.
Main technical parameter of desiccant filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Product overview of Desiccant Filling Machine
1. Machine height can be adjusted according to the size of spacer frame
2.Electrical component are all Germany Brand-Siemens.
3.Protection device for machine head.
4.Auto drilling, filling and sealing function
5.Desiccant automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )
6.All spare parts have ID Number for offering the convenience in after sales service.
7.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
8.Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
9. This model has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.
10.Easy and safe for adding glue.
Feature of Automatic Desiccant Filling Machine
* Automatic desiccant filling machine can Automatically loading and replenish molecular sieve,Filling time can be adjusted.
* Touching screen interface, simple and visible;Filling time can be adjusted according to the size of spacer frame in the touch screen
* Automatic desiccant filling machine Adopt Siemens PLC control system,Touch screen interface, easy operation.Electrical component are all Germany Brand-Siemens.
* The filling height of head can be adjusted according to the size of spacer frame.
* Desiccant automatically loading from the Materials bucket.
*Automatic desiccant filling machine can Automatically drilling, filling and sealing
(When the material was used up the sensor will alarming, desiccant will automatically loading )
*Automatic desiccant filling machine can Fill large particle molecular sieve (Optional)
* Automatic desiccant filling machine Can fill arc Arc-shaped aluminum frame (New function)
* It has a vacuum pump to load desiccant,more quickly and improving efficiency.
* This model has a big barrel to storage desiccant ,no need to put desiccant frequently,increasing efficiency.
Related products
Manula Molecular sieve filling machine LJGJ03
Manula Molecular sieve filling machine used for filling molecular sieve into spacer frame to improves quality of insulating glass
Main technical parameter
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
1.Can effectively fill desiccant and keep dry
2.Manually filling desiccant into spacer frame
3.The desiccant can be recyclable
4.Easy operating, simple and flexible
