Product Details:
|
Name: | Automatic Spacer Bending Machine | Dimensional Error: | ±0.5mm |
---|---|---|---|
Dimension: | 10500mm*2200mm*2600mm | Air Supply: | ≥0.65MPa |
Processing Speed: | ≤26s | ||
High Light: | Auto Aluminium Spacer Bending Machine,2500mm*2500mm Spacer Bending Machine,Insulating Glass Spacer Bending Machine |

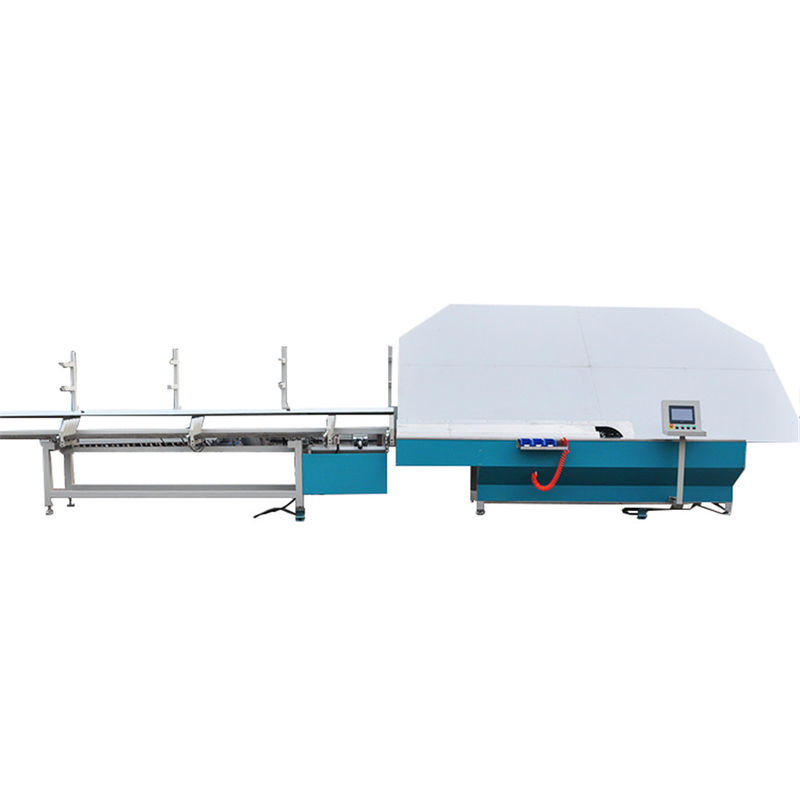

Auto aluminum spacer bending machine bending aluminium bar machine aluminum spacer shape bending machine
² Application of aluminum bending machine
Automatic spacer bending machine is a special equipment for making aluminum frames of
insulating glass, which replaces the traditional fabrication technology. Automatic spacer bending
machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one
time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating
glass more better.
Technical data of automatic bending machine
Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
Min.bending size | 250mm*200mm |
Aluminum spacer width | 5.5-27mm |
Dimensional error | ±0.5mm |
Angle error | ±1º |
Processing speed | ≤26s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of glass bending machine
NAME | BRAND | NAME | BRAND |
PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
² Equipment details of industrial bending machine
l Adopt Siemens PLC control system
l There are 4 Siemens servo

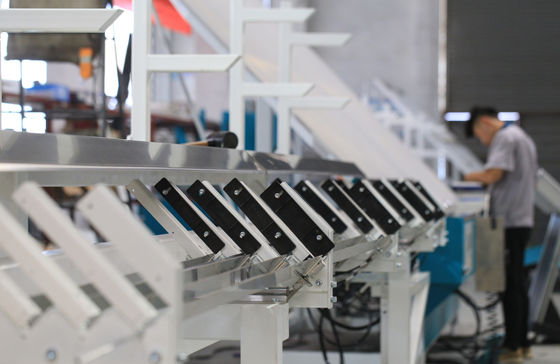

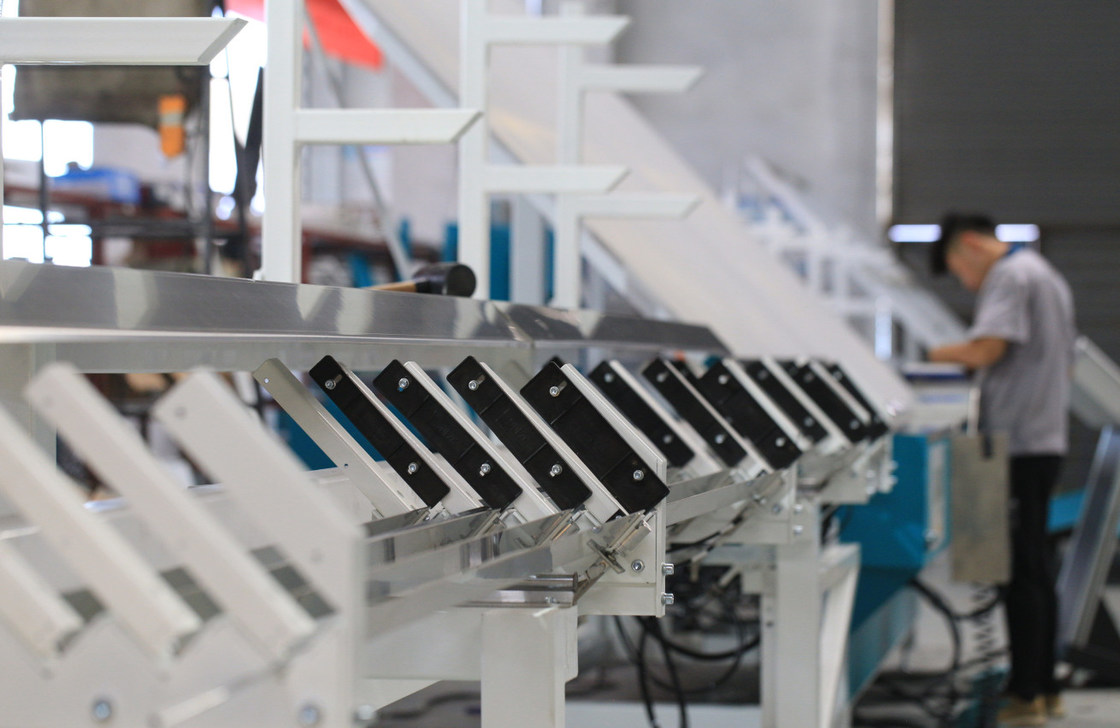

l Adopt 12 sets of racks which could storage more different sizes of spacers. Use Siemens servo
to change different racks.
l Automatically cut and feed aluminum spacers
l Bend shaped spacer frames continuously
l Automatically avoid the connecting corner while bending and cutting
l The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving
the old-fashioned reversing problem.
l Using industrial computer technology which could realize the on-site drawing by workers on the
industrial computer and directly bending the drawn graphics.
l The special machine hand device is used to bend big spacer frame
company profile
Jinan Lijiang Automation Equipment Co., Ltd. is located in the beautiful spring
city------Jinan. It is an enterprise which integrated glass processing equipment research and
development, sales and service into a whole. As it is close to Beijing-Shanghai high-speed rail,
the transportation is very convenient.
The company is committed to building high-end insulating glass machinery and equipment by
learning from famous experts, establishing the research and development centers, cooperating
with domestic and foreign well-known enterprises, importing advanced technology and so on.
Now, our friendly partners include North Glass, Xin Fuxing, Yaohua, Dalian Huaying, Beijing
Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the
establishment of the company, our products have been exported to Europe, America, South
America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. At the same
time, our company worked with the well-known domestic research institutes, such as the North
China Industrial Group, Shandong University and others, to constantly improve the level of technical
research. So far, we have independently produced the vertical automatic IG production line with filling
gas on line, the vertical IG sealing robot, the automatic spacer bending machine, the automatic desiccant
filling machine and the new fully automatic butyl extruder machine, its technology and quality have reached
the highest leading level in China.
With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for
win-win situation and jointly creating a new world.
