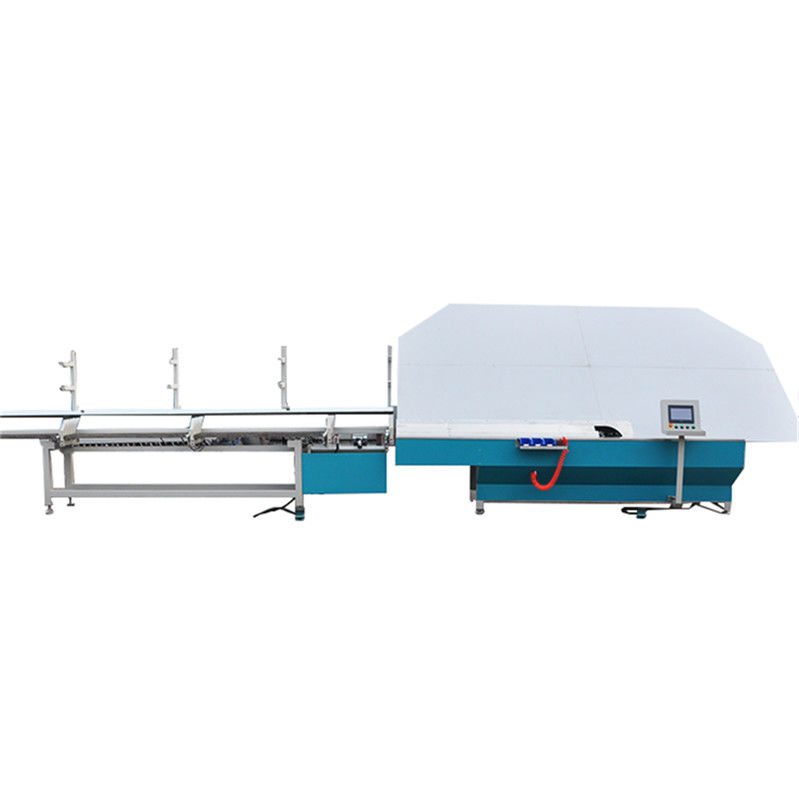

Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor

Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor

Large Image :  Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020A
Payment & Shipping Terms:
Minimum Order Quantity: 3 sets minimum order
Price: $ 35000 per unit
Packaging Details: Containers and wooden boxes
Delivery Time: 10-28 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 20 units per month
Contact Now

Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor

Description
Power: 2.5KW Voltage: 380V50HZ
Weight: 1680KG Glass Thickness: 1-40mm
Marketing Type: New Product 2020 Dimension(L*W*H): 10500mm*2200mm*2600mm
High Light:

Single Screen Aluminum Bar Bending Machine

,

Visualized Aluminum Bar Bending Machine

,

Single Screen glass bending machine

Single-screen operation, visualized operation, save labor, easy to operate aluminum bar bending machine

Get extra 2000usd worth of goods on payment more than 20000usd.
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 0
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 1




Automatic Warm Spacer Bar Bending Machine LJZW 2020A

Main feature: • Germany Siemens PLC control system, touch screen interface • Japan FUJI CNC servo control system • Four spacer size storage units • Using servo system to control feeding mechanism • Automatically cut and feed aluminum spacers • Auxiliary function of adjustment for bending large aluminum frame • Aluminum spacers are available in different sizes and sizes • Bend shaped spacer frames continuously • Separated guard board outside of bender • Automatically avoid the connection while bending and cutting • Pause and Reset device for handling equipment failures • Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 2
Item.
Spec.
Max. bending size
2000mm*2000mm (2500mm*2500mm)
Min. bending size
250mm*200mm
Aluminum spacer width
5.5-27mm
Dimensional error
±0.5mm
Angle error
±1º
Processing speed
≤26s
Air supply
≥0.65MPa
Total power
AC220/380V 50Hz 2.5KW
Dimension
10500mm*2200mm*2600mm
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 3
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 4
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 5
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 6
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 7
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 8
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 9
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 10
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 11



•Separated guard board outside of bender •Automatically avoid the connection while bending and cutting •Pause and Reset device for handling equipment failures •Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
Single Screen Aluminum Bar Bending Machine Visualized Operation Save Labor 12



• USB input function, read the excel format file directly etc (Optional) • Stainless steel (Optional) • Automatic drill gas filling hole (Optional) • Connect to ERP system (Optional) • Spacer printing code function (Optional)
