Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

Large Image :  Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: 3 sets minimum order
Price: $ 30000 per unit
Packaging Details: Containers and wooden boxes
Delivery Time: 10-28 working days
Payment Terms: L/C, T/T, D/P
Supply Ability: 20 units per month
Contact Now

Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes

Description
Power: 2.5KW Voltage: 380V50HZ
Weight: 1680KG Glass Thickness: 1-40mm
Marketing Type: New Product 2020 Dimension(L*W*H): 10500mm*2200mm*2600mm
High Light:

Aluminum Bar Bending Robot

,

Integrated Bar Bending Robot

,

Integrated robot bending machine

Automatic measurement, can handle special shapes, integrated automatic aluminum bar bending robot
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 0
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 1

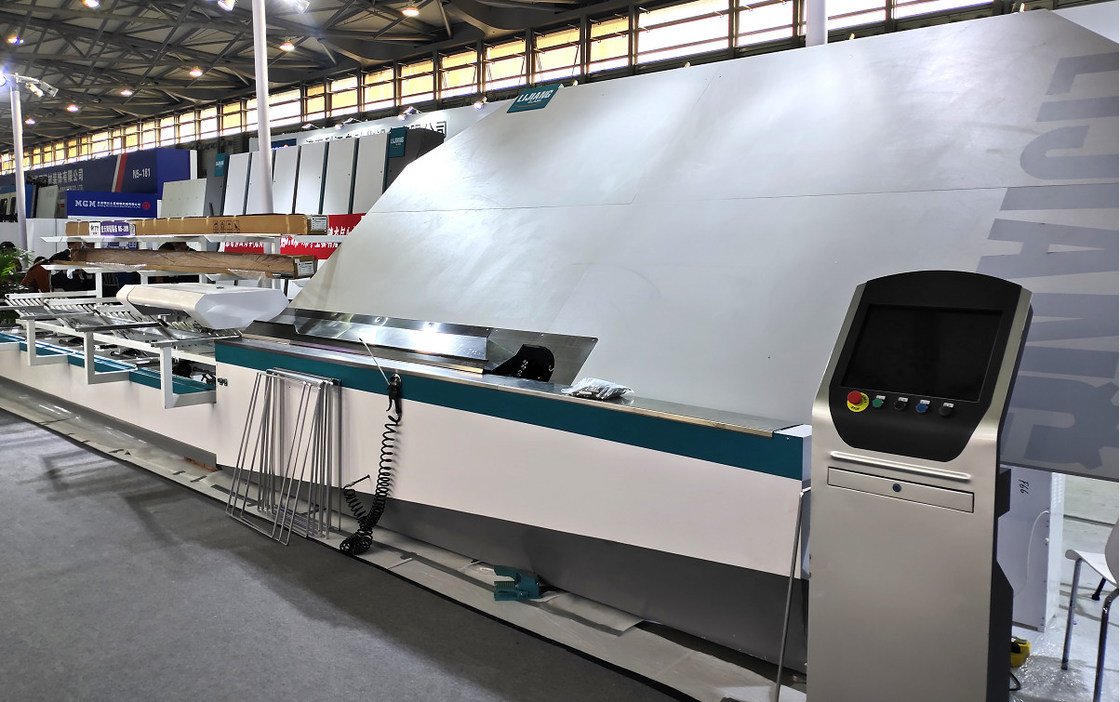

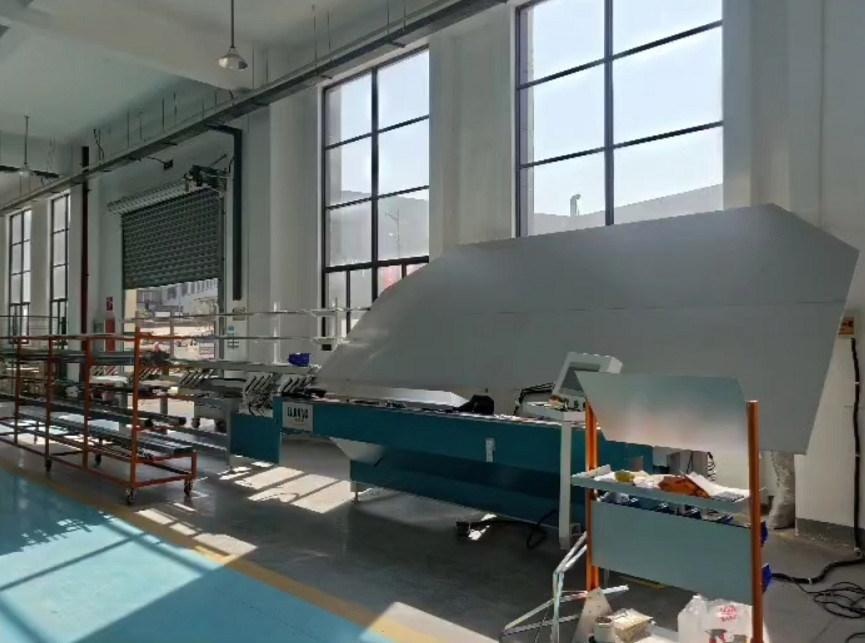

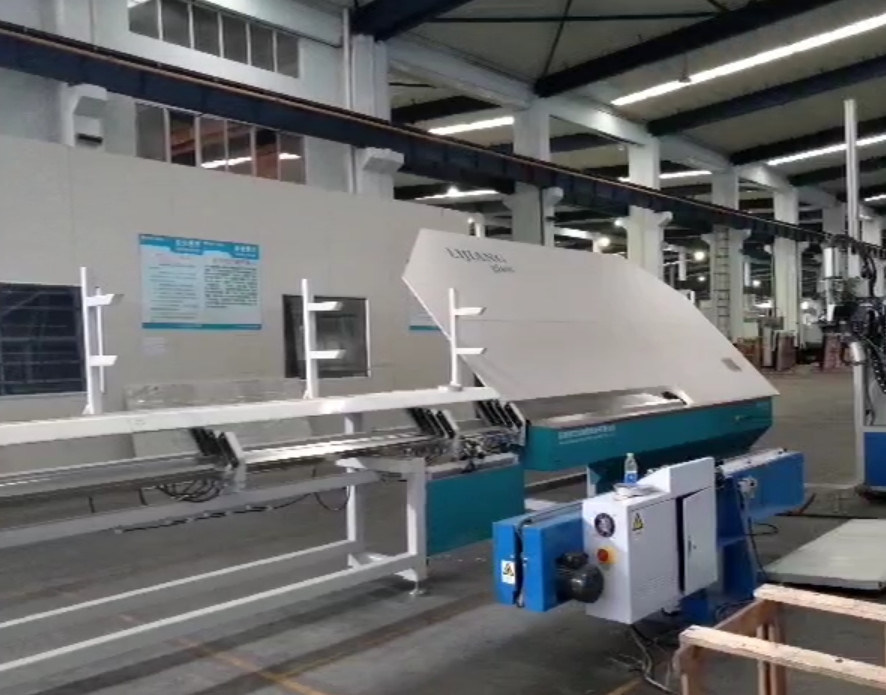

Automatic spacer bending machine LJZW2020

Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. Automatic spacer bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 2
Max.bending size
2000mm*2000mm (2500mm*2500mm)
Min.bending size
250mm*200mm
Aluminum spacer width
5.5-27mm
Dimensional error
±0.5mm
Angle error
±1º
Processing speed
≤26s
Air supply
≥0.65MPa
Total power
AC220/380V 50Hz 2.5KW
Dimension
10500mm*2200mm*2600mm
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 3
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 4



l Automatically avoid the connecting corner while bending and cutting l The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
Item.
Spec.
Max.bending size
2000mm*2000mm (2500mm*2500mm)
Min.bending size
250mm*200mm
Aluminum spacer width
5.5-27mm
Dimensional error
±0.5mm
Angle error
±1º
Processing speed
≤26s
Air supply
≥0.65MPa
Total power
AC220/380V 50Hz 2.5KW
Dimension
10500mm*2200mm*2600mm
Above information is the Specification. from Jinan LIJIANG Glass Standards.
If customers want to change the Spec., please let us know.
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 5
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 6
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 7
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 8
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 9
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 10
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 11
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 12




Benefits & Advantages

Adopt Siemens PLC control system
There are 4 Siemens servo
Adopt 12 sets of racks which could storage more different sizes of spacers.
Use Siemens servo to change different racks. Automatically cut and feed aluminum spacers
Bend shaped spacer frames continuously
Automatically avoid the connecting corner while bending and cutting
The machine grabs the spacer from the top instead of grabbing the spacer from bottom, solving the old-fashioned reversing problem.
Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics.
Integrated Automatic Aluminum Bar Bending Robot Can Handle Special Shapes 13



l Using industrial computer technology which could realize the on-site drawing by workers on the industrial computer and directly bending the drawn graphics. l The special machine hand device is used to bend big spacer frame
