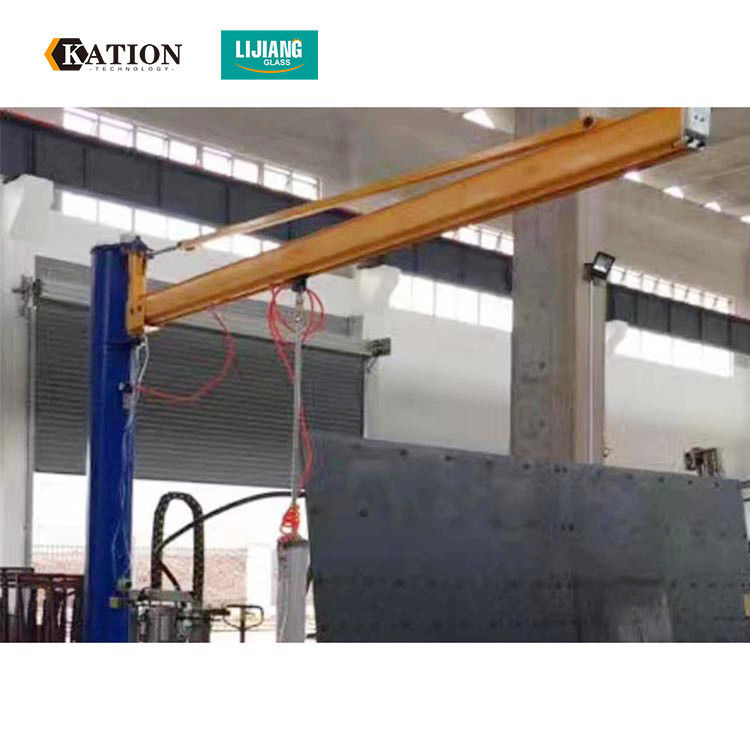

260 500 800 KG Glass Cantilever Jib Crane And Glass Loading Unloading Machine

Glass 260KG500kg800kg Cantilever Jib Crane for insulating glass lamilated glass

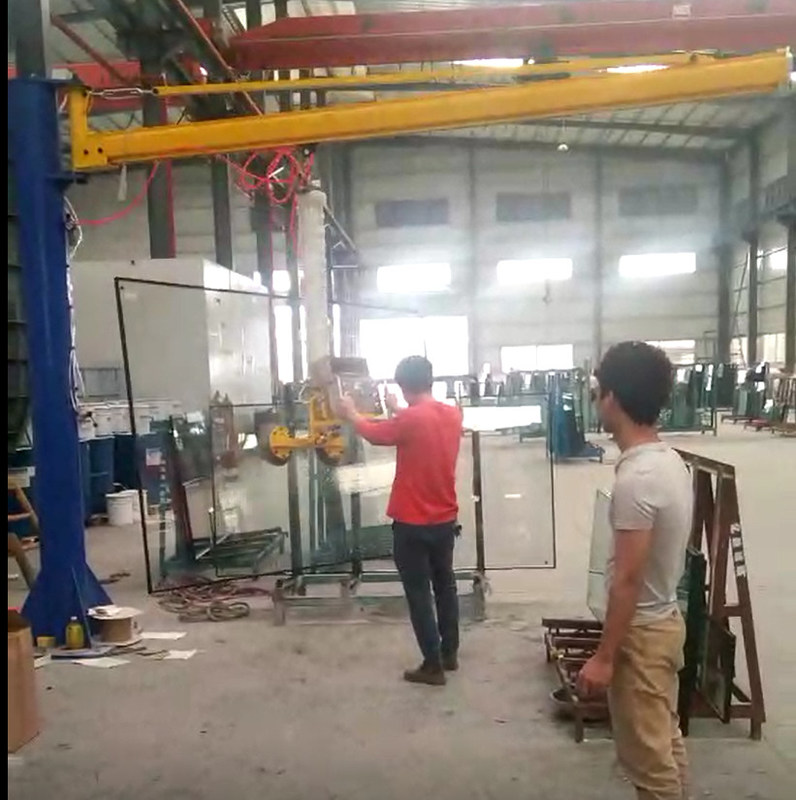

Glass Cantilever Crane with lifting sucker

1.Suitable for moving insulating glass, tempered glass, glass curtain wall, on-site construction of glass deep processing and
solar photovoltaic glass.
2.Maximum bearing capacity is 300Kg, Max. glass size can reach to 8m (Length)×4m(width).
3.It can turn the glass with various degree.
4.Equipped with gas storage function, the machine can continue working 20 minutes without gas.

Parameters:

Useing For
- Insulating Glass Production line,
- Installing Glass Curtain Wall System,
- Loading and Unloading glass sheet on glass cutting table,
- Instaling car windscreen.

Vacuum glass electric suction cup lifter KX4

As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.

Automatic Glass Loading Machine for Insulating glass processing

LJASP3525 vertical loading table of insulating Glass Machine

A.Technical performance:

1. All main frames of equipment use quality rectangle steel pipe groups of national standard welded and fitted with bolt.

2.Electric control system of equipment use Schneider brand modules of electric; Program control uses imported SIMENS programmable controller, fitted with touch panel.

3.The machine was designed with concise appearance and conforms to the modern factory with safe signs, and reference to the Euro IEC standard from design until manufacture and installation.

B.Mainly technical parameter:

1.Loading max glass size: L X W = 3500 x 2500 mm

Loading min. glass size: L X W = 800 x 600 mm

Glass thickness: (3-10mm)

2.Dimension of loading table approx.:　

L X W X H= 3700mm x 2800mm x 2500mm+ bottom support 530mm(±30mm)

3.The vertical loading table uses Servo motor as drive system and all motors with infinitely variable speeds, the transfer speed of this table is 2-35m/min;Loading cycle time: 35S

4.Adopts full-closed loop control system for accurate positioning for the machine and stable running system;Configuration description

5.The tilting arm horizontal movement controlled by Servo motor and precise gear box, gear rack drive;

6.Lifting structure: Servo motor and precise gear box control and synchronous belt drive;

7.The suction cups frame tilting structure: Servo motor and precise gear box control and crank connecting rod drive;

8.Bottom transfer structure, Servo motor and precise gear box control and chain drive.

9. 4 axis all-digital control with precise positioning and speedy flexibility; All speed can be

adjustable according to production line speed.

10.Super HMI monitor the equipment running status and system parameters; It can set data according to different glass rack height and angle and also pre-setting or recording the current shift of production.

11.Vacuum pump system: highly effective mono-block rotary blade type vacuum pump;

Suction cups: Uses imported PF suction cups ￠120MM type

12. Air compress supply:5—7bar,30L/min;Compressed air supply: 5—7bar, 30L / min;

13.Power supply: 380V, 50HZ, 3 phases,

As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.
