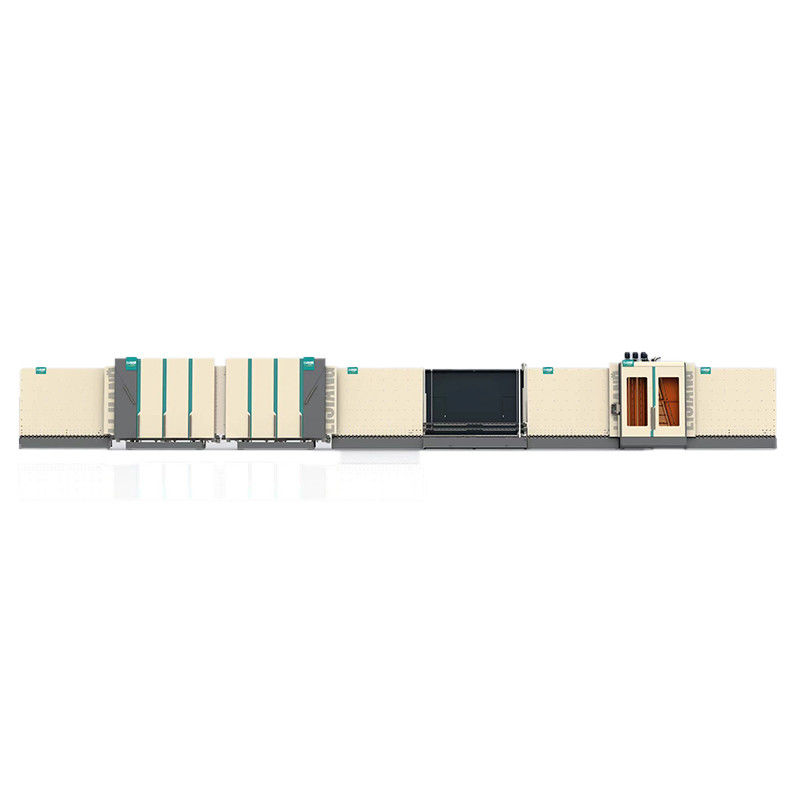

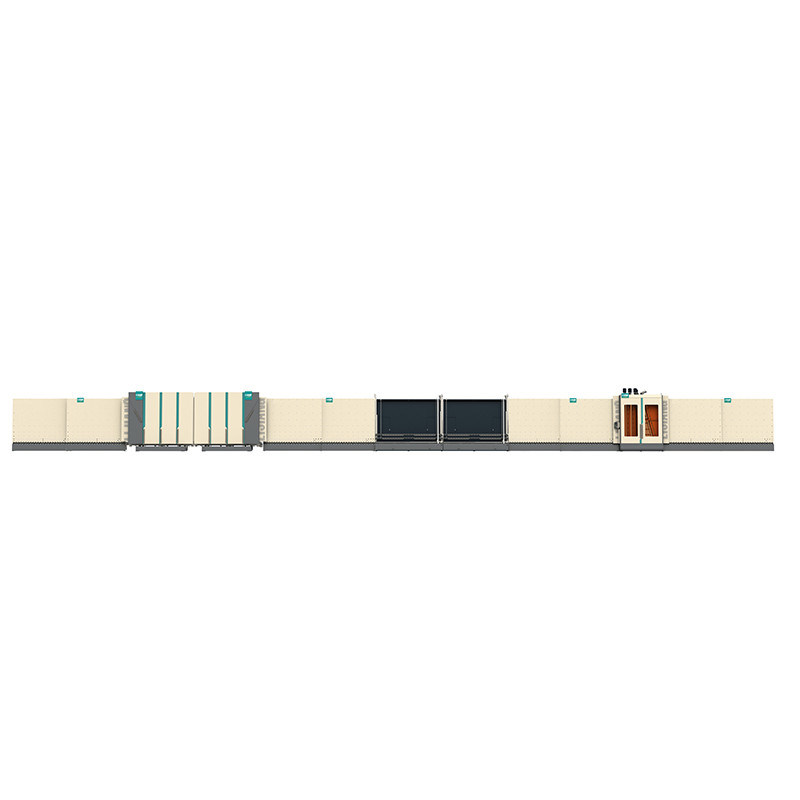

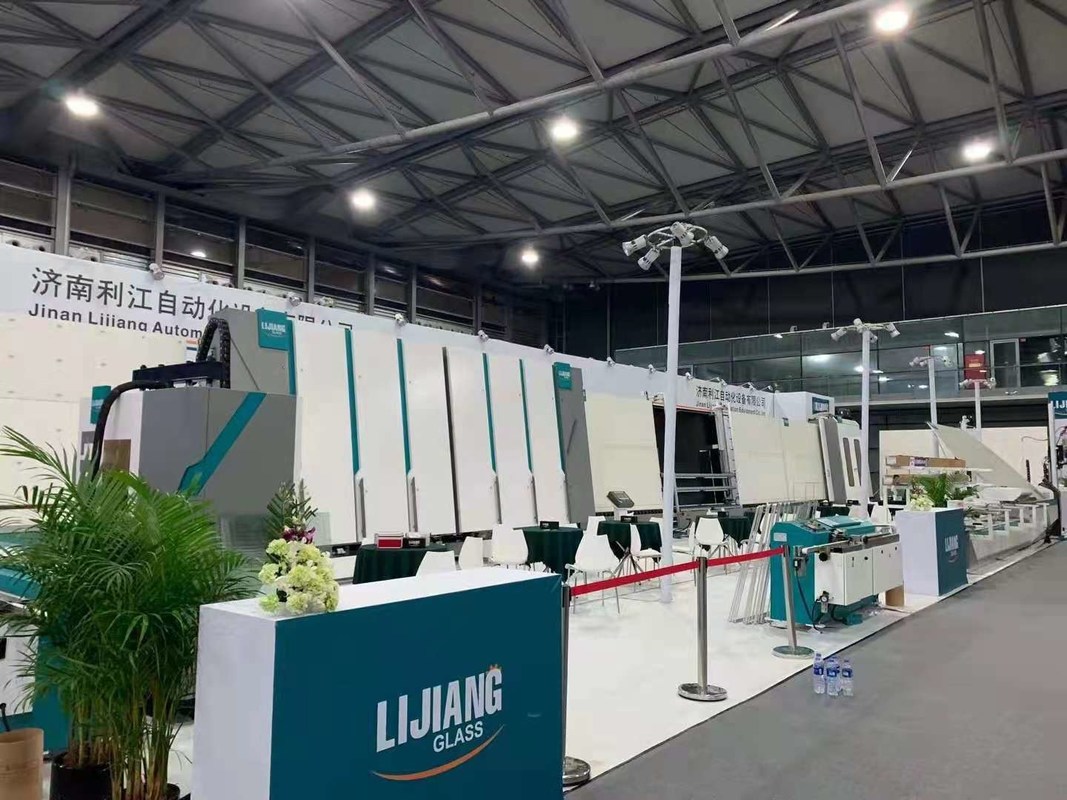

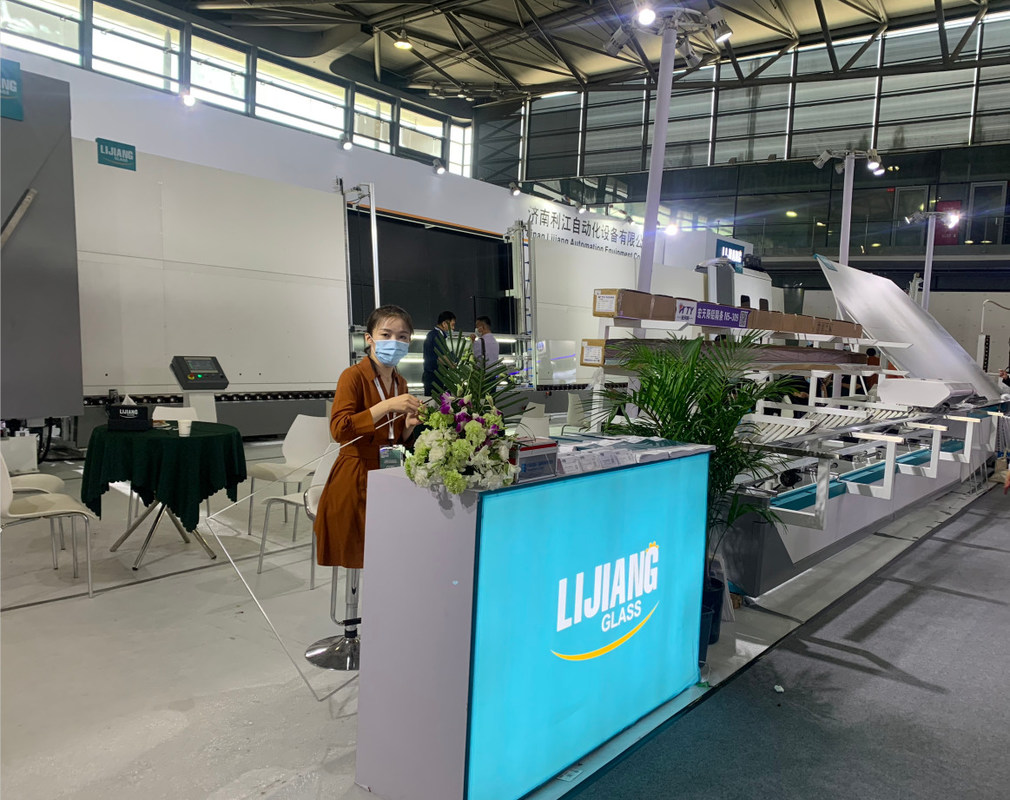

Product Details:
|
| Brand Name: | Jinan Lijiang Glass | Insulating Glass Thickness: | 50mm |
|---|---|---|---|
| Dimension(L*W*H): | 23500mm*3500mm*3700mm | Max.glass Size: | 2500*4500mm |
| Min.glass Size: | 300*450mm | Glass Thickness: | 3-12mm |
| Weight: | 7000Kgs | Voltage: | 380V 50Hz |
| High Light: | Vertical Insulating Glass Production Line,Curtain Wall Insulating Glass Production Line,Vertical insulating glass machine |
||
Aluminum Spacer bending machine
l 1*1m spacer frame was bend around 17s.
The error of spacer frame angle is within 0.1mm.
l Can bend aluminum spacer /technoform /Alupro /thermix/
l Spacer automatically connect and cut.
l Machine automatically stop when the spacer use up.
l Support continuous bending , automatically avoid spacer connection while bending and cutting
l Automatically connect the spacer -connector
l Remote control function
l USB input function ,it can read the excel data directly
l Spare parts of all machine have ID code ,convenient for after-sale service
l Heavy duty connectors ,convenience and safety for installation and debugging
l Magnetic valve use Taiwan Airtac
l German Siemens plc control systerm
l Japan Fuji servo control system
l 12 storage spacer units (option)
l Swisspacer/ Stainless Steel /Allmetal Stainless Steel /option)
(Stainless steel and warm edge spacer can not exist at one time )
l Drill hole for gas filling(option)
l Spacer inkjet printing ,various color is available for company logo or production date(option)
l Laber printing (option)
l Scanner scan two-dimension code ,bar code (option)
l Separate Pressing Wheel for arc frame, more accurate than the bending tool
Especially for Hexagon and Octagon frame (optional )
l ERP (optional)
Remark : Bending tool
*For rectangle frame there have three size (6A/9A/12A)was complimentary
Other size need pay extra 42$/per size
* For Circle ,Hexagon and Octagon frame , 300$/per size
Main technical parameter
| Max.bending size | 2000*2000mm |
| Min.bending size | 250*200mm |
| Aluminum spacer width | 6-27A |
| Arc Radius | 60°-150° |
| 6A-16A | |
| Dimensional error: | ≤±0.5mm |
| Angle error | ≤±1º |
| 1m*1m aluminum spacer | 17s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Spacer Bending machine main components
| NAME | BRAND |
| PLC | GERMAN SIEMENS |
| Low voltage electrical apparatus | GERMAN SIEMENS |
| Servo motor | GERMAN SIEMENS |
| Servo driver | GERMAN SIEMENS |
| Relay | JAPAN OMRON |
| Triplet | Taiwan AIRTAC |
| Cylinder | Taiwan AIRTAC |
| TOUCH SCREEN | Taiwan WEINVIEW |
| Switch power | Taiwan TEND |
| GUIDE | Taiwan TBI |
| Solenoid valve | Taiwan AIRTAC |
| Sensor | KOREA AUTONICS |

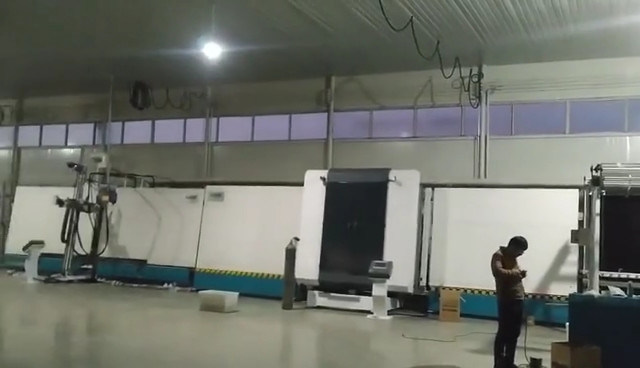

Sealing robot
² Application
LJTJ2535/LJTJ2025 is the latest automatic vertical insulating glass sealing robot. It is used to coat double glazed glass through mixing the A component and B component together according to a certain percentage. Applied to double/triple/shaped and stepped glasses (Optional) with stable performance and easy operation.
1, Mechanical head is placed in front
Achieve the real connection with IG line when doing stepped glass.
2, Storage Function
It can store three pieces of insulating glasses on the three belts ( less than 1.8m.), it need 2 more sets servo motors, control systems.
3, Eight Servos
The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and Forward & backward movement and rotating.
Single Glue System
Equipped with single A component and single B component.
Double Glue Systems(option )
Equipped with two sets of A components and two sets of B components, which can be used for two kinds of sealants, such as silicone rubber, polysulfide rubber and silicone structural adhesive.
Double /triple Shaped / stepped glass Function (Optional)
With the development of updating technology, the sealing robot can coat eight shaped glasses according to the glass market.(but it’s optional function , before order this function should confirm manufacturer)
Electric proportional valve: the rubber nozzle fit the glass gap is more perfect and stable.
Pump A &Pump B
Use Taiwan-Airtac
The glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner
Synchronous belt transmission
to make the glass being transferred smoothly with accurate positioning
Electric and compressed air switch valve: Ensure electrical automatic switch, stable performance and uniform coating.
