Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling

Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling
Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling

Large Image :  Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTJ2540D
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Container
Delivery Time: 45 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling

Description
Production Name: Double Glazing Glass Processing Line Application: Processing Double / Triple / Step Glazing Glass
Maximum Glass Size: 2500mm*3500mm/3300*7000mm Minimum Glass Size: 400mm*280mm
Washing Speed: 2-10m/min Working Speed: 45 M/min
High Light:

45 m/min double glazing glass making machine

,

Argon Gas double glazing glass making machine

,

Argon Gas double glazing machinery

Automatic Double Glazing Glass processing line with Argon Gas Filling



Main performance features:

  • On board automatic filling gas function
  • On line automatic detection system argon gas content
  • High strength polymer spray back plate, folding structure
  • PLC control system, human-machine interface touch screen
  • Automatic identification coating and Low-E glass
  • The online and offline Low-E glass can be washed
  • Water tank with automatic temperature control and water washing system
  • Noise reduction system with stainless steel materials and air drying system
  • Display the washing speed
  • Intelligent intermittent work, good energy saving effect
  • Digital display glue depth adjustment device
  • Adjustable matrix separated plate pressure system
  • Automatic external rotary positioning system of glass
  • Connection mode of aviation plug
  • Automatic cooling system of electric cabinet
  • The automatic positioning system of triple insulating glass, shaped glass and step glass

Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling 0

•The line has 7 sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
•PLC control system, touch screen interface
•Using Siemens servo motors
•Applicable to produce double glass, triple glass

Optional functions:
•Step glass with optional edges
•Shaped glass
•Filling argon gas automatically
•Air-floating technology to transfer glass
To prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality.

Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling 1

Technical data

Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg

Main details of the gas filling features:

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen

• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas



NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON

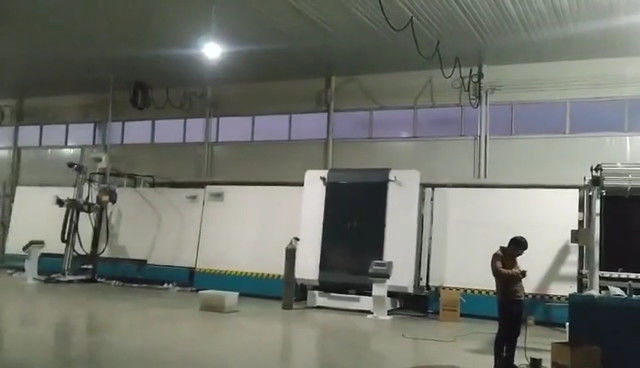

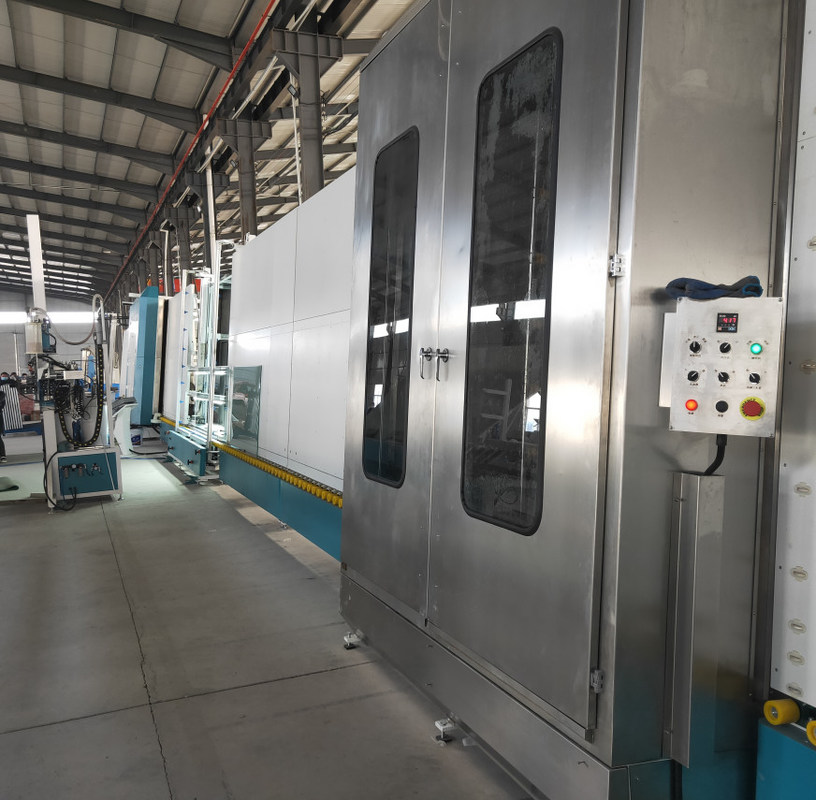

IG line with gas filling online



Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling 2

Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling 3

Related product of LIJIANG GLASS

Automatic Two Pumps Sealants Sealing Robot For Double Glass Coating Machine

Sealing machine : Automatic sealing robot / Manual sealants spreading machine with two pumps for silicone sealants, polysulfide sealnats, silicone structure sealants, Polyurethane sealants.

Optional functions and specifications:

1. 2000mm*2500mm / 2500mm*3500mm / 2500mm*4000mm (Large size can be customerized)

2. Triple glass

3. Step glass ( 3 or 4 sided step glass )

4. Shaped glass

5. Two sets of sealing pumps with dual gluing head

6. Colors can be changed

7. Machine length can be changed

8. With code scanning function

Main features of the sealing machine:

Single / double glue supply system can be selected. The single glue supply system is equipped with one set of A pump and B pump, which is suitable for a kind of sealant. Double glue supply system is suitable for two different kinds of sealant. Polysulfide, silicone, silicone structural and polyurethane sealants are all suitable for this machine.



Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling 4



• Japan Yaskawa servo system control, 8 sets of servo control system, full automatic and high-efficiency sealing machine

• 4 sections, can storage glass

• Adopt timing belt, smooth transfer and accurate position

• Automatically repair glass corners with scraper and roller

• Automatically measure glass size, glue depth (30mm)

• Every auto-function is with manual operation

• Can use silicone, polysulfide and silicone structural sealants

• Glue head is in the front of the machine, which is easy for coating step glass

• Can be connected with insulating glass processing line

The glue head can ne in front of the machine, which is easy to seal step glass and connest with IG line



Automatic Double Glazing Glass Making Machine Processing Line With Argon Gas Filling 5



Max. glass size 2500*4000mm
Min. glass size 400*300mm
Glass thickness 12-50mm
Working speed 5-40m/min
Air pressure ≥0.6MPa
Squeeze pressure 32MPa
Voltage power 380V 15kw
Overall dimension 11000*2000*3500mm
