Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass

Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass
Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass

Large Image :  Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJTB01
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 85000 - 11000 per set
Packaging Details: container
Delivery Time: 15 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass

Description
Voltage: 380V 50Hz 3P Condition: NEW MACHINE
After-sales Service Provided: Engineers Service Product Name: Automatic Butyl Extruder Machine
Warranty: 1 Year Application: Making Double Glazing Glass Products Machine
Heating Time: 15 Mins
High Light:

Spacer Bar Cutting And Bending MachineBar Cutting And Bending Machine

,

Insulated Glass Bar Cutting And Bending Machine

,

Aluminum Spacer bar bending cutting machine

Automatically PLC Controlled Aluminum Spacer Bars Cutting And Bending Machine


Common specifications for aluminum spacer bars: 4mm, 5mm, 5.5mm, 6mm, 6.5mm, 7mm, 8mm, 8.5mm, 9mm, 10mm, 11mm, 11.5mm, 12mm, 14mm, 14.5mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 21mm, 25mm, etc.

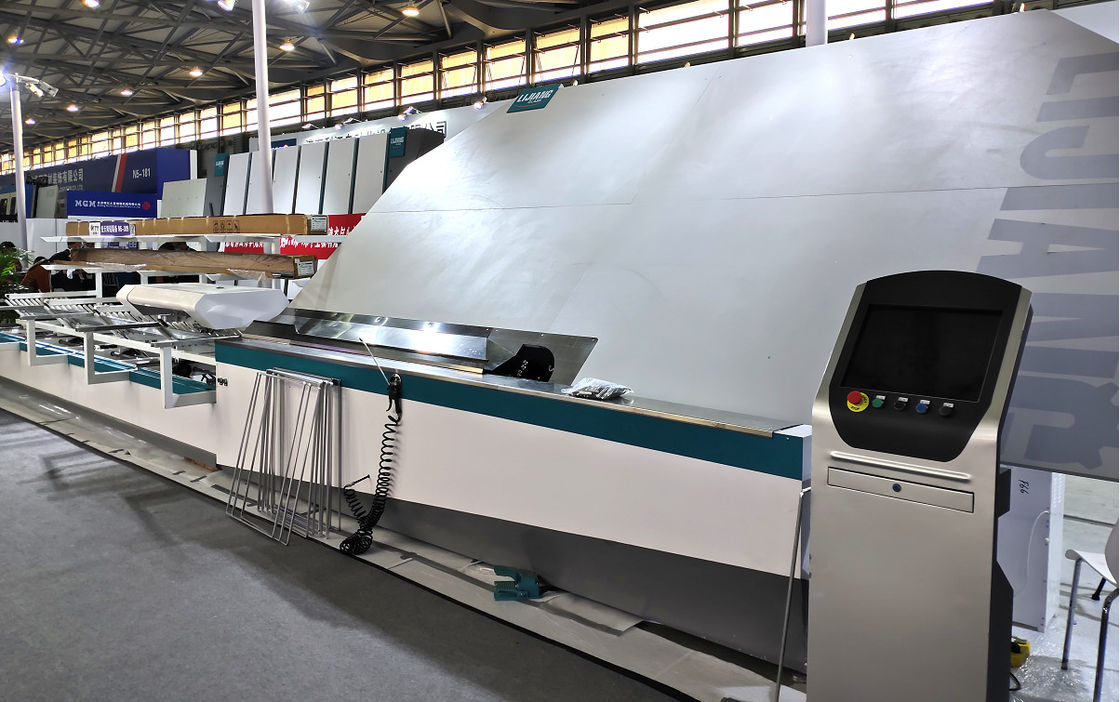

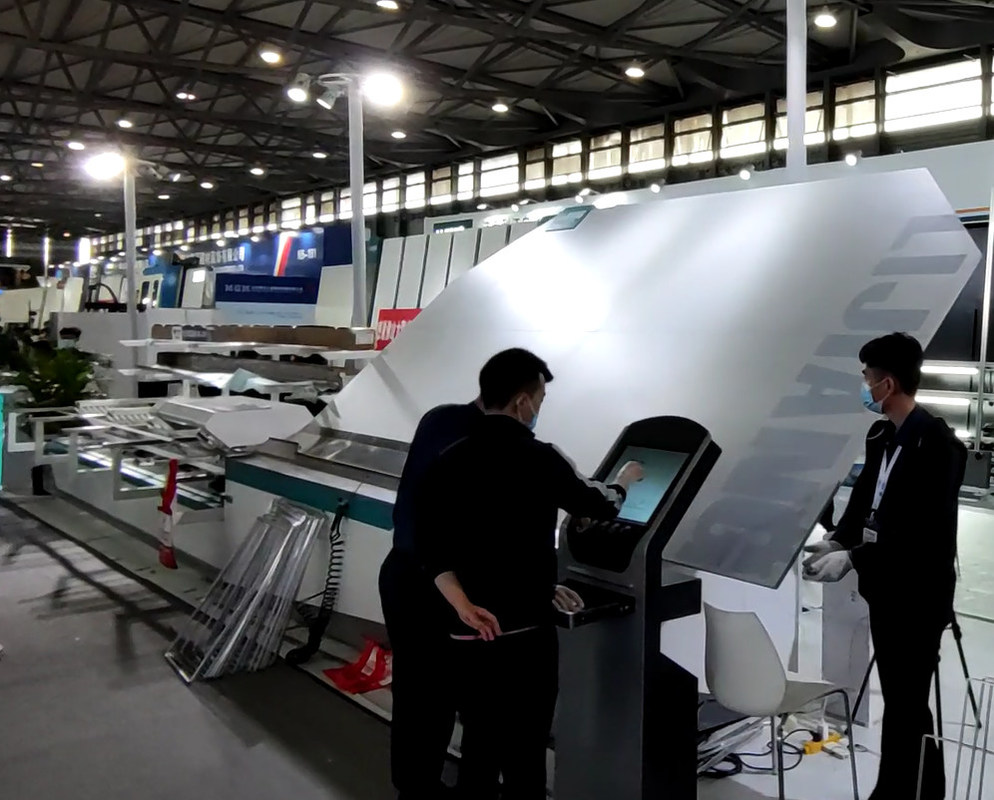

Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass 0 Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass 1


Main features of the automatic spacer bending machine :

• Siemens 1200 PLC control system with fast working speed

• 4 groups of storages (2 or 12 groups of storages can be optional)

• Automatically cut and feed aluminum spacers

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously



• Aluminum spacers are available in sizes of 6A-27A

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm spacer

Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass 2

• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass 3

• Printing label sticker function (Optional)

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)



Technical data of spacer bending machine :



Max. bending size 2000mm*2000mm
Min. bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed 17s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



Electrical parameters of spacer bender machine :



NAME ORIGIN BRAND
PLC Germany SIEMENS
Servo driver Germany SIEMENS
Servo motor Germany SIEMENS
Low voltage component Germany SIEMENS
Triplet Taiwan AIRTAC
Cylinder Taiwan AIRTAC
Relay Japan OMRON
Sensor KOREA AUTONICS
Touch screen Taiwan WEINVIEW
Guide Taiwan TBI
Solenoid valve Taiwan AIRTAC
Switch power Taiwan TEND




Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass 4



The automatic spacer bars bending machine is used to make spacer frame into the inside of aluminum spacer bars. The spacer bars can be aluminum spacer bars, stainless steel bars, warm edge spacer bars ( plastic spacer bars).
Insulating aluminum spacer is one of the necessary materials for the production of insulating glass. Its quality is directly related to the use effect, service life and heat insulation function of insulating glass. The main function of the insulating glass is to evenly separate the two sides or multiple pieces of glass and effectively support it.



Related product of LIJIANG GLASS



 Butyl Extruder Machine With Adjustable Gluing Nozzle



LJTB01 Butyl extruder machine is a special equipment for the production of making double glazing glass. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.

Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass 5

Optional functions:

200L glue cylinder is optional

Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass 6

Main performance features:

1. Glue application speed can reach 47m / min

2. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m

3. Unique design structure, with automatic exhaust function, to ensure continuous glue application

4. Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning

5. The main accessories are German brands. PLC program control, stable performance

6. It is convenient and practical to use movable vertical and horizontal sealant

7. Automatically adjust the width of glue head, and the integrated control of quick opening valve ensures the consistency of double-sided gluing

8. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently

9. Touch screen operation, simple and practical

10. Automatically adjust the glue output according to the speed change

12. The hydraulic system imported from Germany is adopted to ensure even and full glue delivery

14. The rubber cylinder adopts pull-up structure, which is convenient for operation

Specification parameters:

Squeeze pressure 10-18MPa
Temperature 110~140℃
Glue thickness 0.3-0.5mm
Glue width 3.5mm
Aluminum spacer width 6A - 27A
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg

Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass 7

Electrical parameters :

Name Original Brand
PLC China KINCO
Valve German HAWE
Low voltage electrical apparatus German SIEMENS
Hydraulic and pneumatic supercharging system German MAXIMATOR
Frequency converter China KINCO
Pneumatic components Taiwan ARTAC
Quick exhaust valve/Vacuum generator Japan SMC SMC
Travel light Japan OMRON
Optical fiber Japan OMRON

More details :
•PLC control system, KINCO touch screen interface
•Hydraulic system using German brands

•Alarm system, reminding adding butyl glue
•The sensor can automatically measure the width of frame, the distance of nozzle can be adjustable
•Exhaust function
•Short preheating time, improve work efficiency
•Coating shape frames, the roller device can be selected at will

•Fast coating speed, can up to 47m/min
•Stable pressure and even coating
•Saving glue. The amount of glue on both sides can reach 4g / m

Optional function :

This machine with big glue barrel with 200L butyl glue, the new butyl extruder machine will save a lot time of adding glues.
Aluminum Spacer Bar Cutting And Bending Machine For Processing Insulated Glass 8
