IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine

IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine
IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine

Large Image :  IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine

Product Details:
Place of Origin: China
Brand Name: LIJIANG
Certification: CE
Model Number: LJBZ2535G
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: 90000-120000
Packaging Details: container
Delivery Time: 30-40
Supply Ability: 20

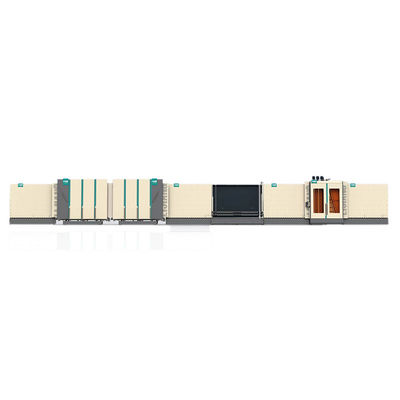

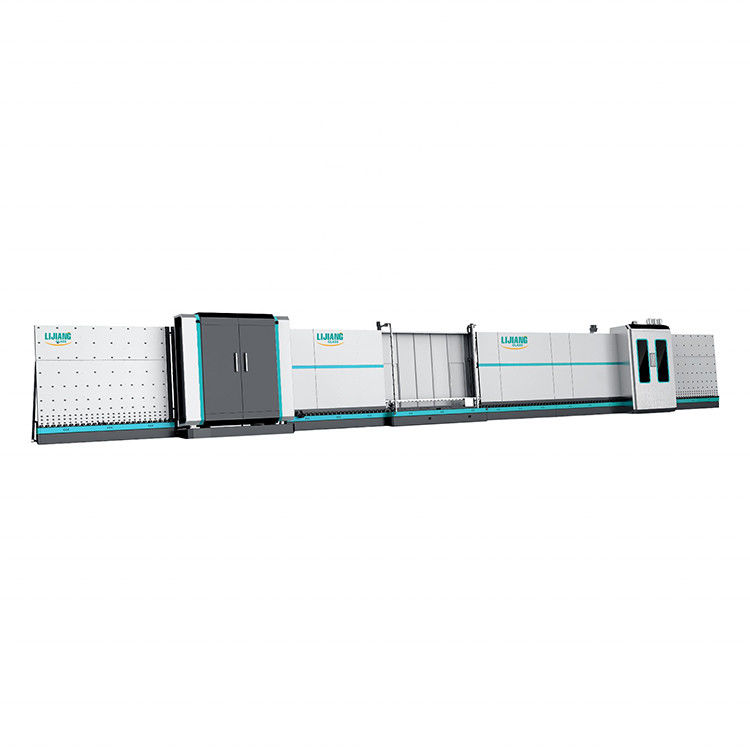

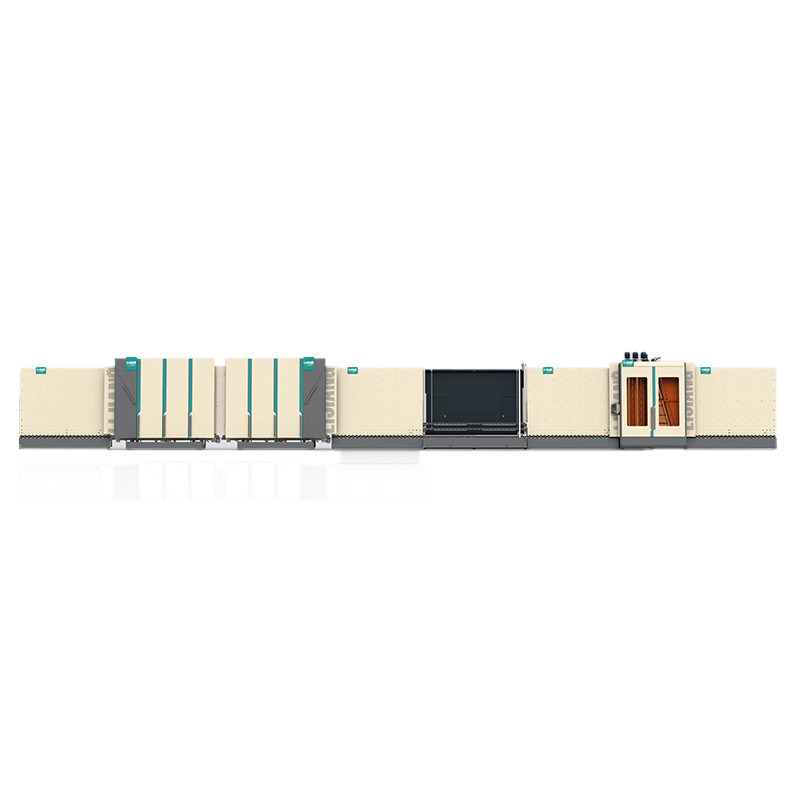

IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine

Description
Name: Vertical Insulating Glass Production Line Max. Glass Size: 2500mm*3500mm
Glass Thickness: 3-15mm Min. Glass Size: 280mm*450mm
Glass Conveyor Speed: 45m/min Washing Brushes: 3 Pairs Of Soft Brushes With 0.1mm Hair
High Light:

IGU Assembly Insulating Glass Machine

,

Gas Filling Insulating Glass Machine

,

IGU insulated glass manufacturing equipment

Vertical Insulating Glass Production Line



Main Features of washing machine production line

• The line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.

• PLC control system, touch screen interface

• Using Siemens servo motors

• Applicable to produce double glass, triple glass



Optional functions of  insulating glass equipment

• Step glass with optional edges

• Shaped glass

• Filling argon gas automatically

• Air-floating technology to transfer glass

To prevent the glass from being contaminated by wheels and leaving traces to improve the IG

production’s high quality.



  Pressing and filling 2 pieces of IG units, totally 8 sections



Main Features of  glass production machinery



• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time.

  Can reach 27s for each 1m*1m double glass, improving work efficiency highly

• High-speed IG processing line, we have obtained patent rights in China in 2019

• Solving the problem of waiting for working on the sealing robot. Installing two spacer frames for two IGU

  by one workman

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing)

 with ERP system (Optional)

• From transfer part to pressing part, each part is divided

• Suitable for mass production in a factory. Ultra-fast speed



Technical data of  glass arising machines



Max. glass size 2500mm*3500mm
Max glass size for filling gas 2500mm*3200mm
Min. glass size 280mm*450mm
Glass thickness 3-15mm
Insulating glass thickness 60mm
Glass washing speed 2-10m/min
Glass conveyor speed 45m/min
Washing brushes 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption:0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure ≥0.8MPa
Total power 3P 380V 50HZ 40KW
Dimension 23500*3500*3700mm
Weight 6500kg



IGU Assembly And Pressing Line With Online Gas Filling Insulating Glass Machine 0



Jinan Lijiang Automation Equipment Co., Ltd specializes in the R & D and manufacturing of automatic

insulating glass machinery, with a registered capital of 20 million RMB. Domestic friendly partners include

nearly one thousand customers, such as North glass, Xinfuxing, Yaohua, etc. The products have been

exported to Europe, the United States, the Middle East, Southeast Asia, South America,Romania, Bulgaria,

Span and other countries (about 30 countries) of the world. There are about ten agencies, such as North America,

South America, Europe, Southeast Asia, the Middle East, South Korea, etc. At the same time, we have set up

branches in New Delhi, India. At present, the export of products accounts for more than 50% of the company's

total sales.
