Double Glazing Insulating Glass Production Line Jumbo Size 3300*7000mm

Description
Name: Insulating Glass Processing Machine Voltage: 380V 50Hz 3P
Condition: New Machine Certification: CE
Warranty: 1 Year Min. Glass Size: 280*400
IG Thickness: 60mm Max. Glass Size: 2500*3500
Washing Brushes: 6 Pieces Flat Glass Thickness: 3-15mm
High Light:

Double Glazing Insulating Glass Production Line

,

3300*7000mm Insulating Glass Production Line

,

3300×7000mm double glazing machine

Jumbo size 3300*7000mm Double Glazing Insulating Glass Production Line For Washing And Pressing



Options of Automatic Jumbo size double gas filling insulating glass line



1.Pre-washing

2.Automatically accurate positioning for 3 or 4 side step IG

3.Automatic gas filling can set gas value and display the processing of filling online with high gas concentration



Main feature of Jumbo Size Double Gas Filling Insulating Glass Processing Line



●Germany Siemens PLC control system,touch screen interface

●Water tank with automatic temperature control and water washing system

● Air heating system

●Air Fan automatic start and stop setting

●Noise reduction system

●Automatic identification of coated and Low-E glass

●3pair soft brushes can wash online and offline Low-E glass

●The washing machine adopts SS material and waterproof device

●Adjustable pressing board to keep the plate pressing surface straight

● Connection mode of aviation plug

●Applicable to produce triple IG and shaped IG

●Online display of washing speed

●Intelligent intermittent work, saving energy



PARAMETER of Jumbo Size Automatic Double Gas Filling Insulating Glass Production Line



Unit LJBZ3370
Voltage   380V50Hz3P
Total power KW 54.5
Washing speed m/min 2-10
Maximum working speed m/min 45
Minimum glass size mm 450*280
Maxmum glass size mm 3300*7000 3000*3000 (Double press)
Flat glass thickness mm 3-30
Washing brushes Pieces 6
Maximum thickness of insulating glass mm 80
Total gas consumption L/min 1500
Conveyer roll height mm 520
Dimension (L*W*H) mm 47200*3500*4500



1. What is the IG line ?



The types of the IG line are without filling argon and with filling argon gas. There are also two special IG lines, air floating IG line and super fast IG line (washing and pressing two IG units together).

The IG line is calles insulating glass processing line, it includes glass washing machine, spacer frame installation and glass pressing machine. We normally have 2000*2500, 2500*3500, 2500*4000 ,2500*4500 and 3300*7000 IG line.



2. What does our company do ?



LIJIANG GLASS is the manufacturer in Jinan city, China since 2012 year. We make the IG line, Insulating glass sealing robot, spacer bending machine, butyl extruder machine desiccant filling machine and so on, porviding machines for all over the world with after sale service.



3. How to provide after-sales service ?



For India and the market aroud India, we have two Indian loal engineers, they can provide service in time.



For South America market, we have one engineer there to provide service.



For other market, we have the engineer team with 10 - 20 years experience, they will go to foreign customers' factory to install machine, train workers and provide after sale service in time.



Since the virus of the whole world, Our engineers are restricted to many countries in the world. So we provice installation service and trainning work online by Wechat, Whatsapp and so on. Once the world has a better suitation, our engineer will go to check our machines again.



4. How to package production line ?



One set of IG line normally needs two containers when shipping to foreign country, 2 pieces of 40HQ containers.



5. Details of Insulating glass production line :



• Insulating glass production line has 7 sections:

01 transfer section;

02 washing machine;

03 discharge section;

04 inspection and installation section;

05 transfer section;

06 pressing and filling section;

07 discharge section.





01 transfer section

Coating detection mechanism, automatic detection of offline Low-e film

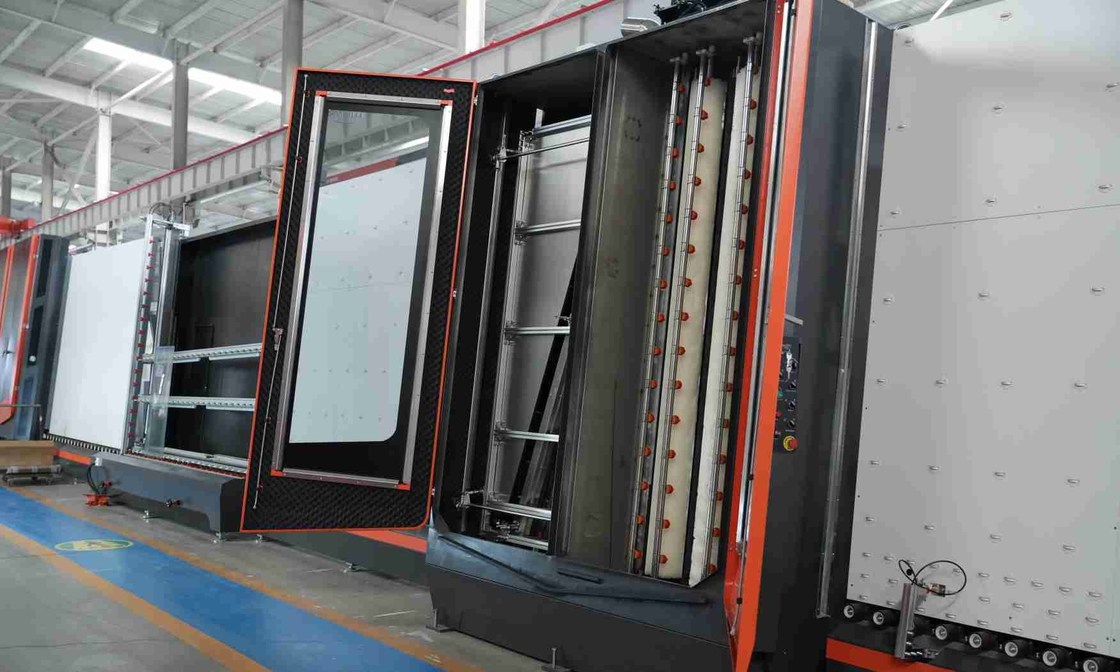

02 washing machine



Main feature:



• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material



03 discharge section



• Storage glass



04 inspection and installation section



The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass.



05 transfer section



• Automatic measurement of glass thickness. It can be used according to actual needs when working.



06 pressing and filling section



Main feature:



• Ultra-long glass can be compressed by twice

• Adopts conveyor belt to transfer glass, use servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life



07 discharge section



• Storage glass

• Can be connected to sealing machine




Electrical parameters



NAME ORIGIN BRAND
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Servo motor for step glass Japan FUJI
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
Touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON
Brush motor China QINGHUA
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC

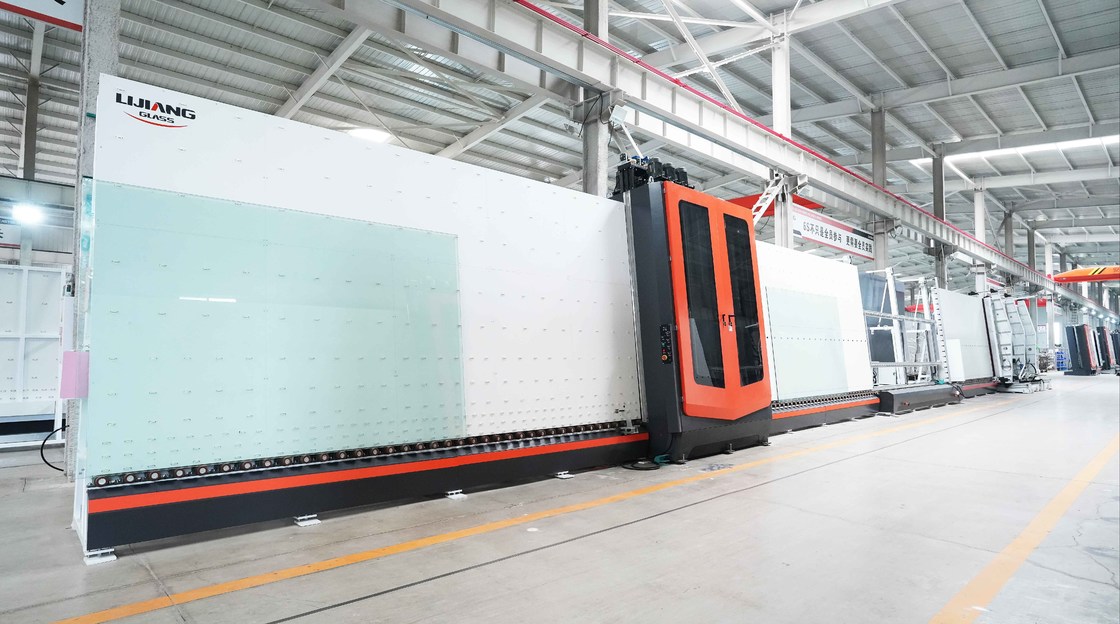

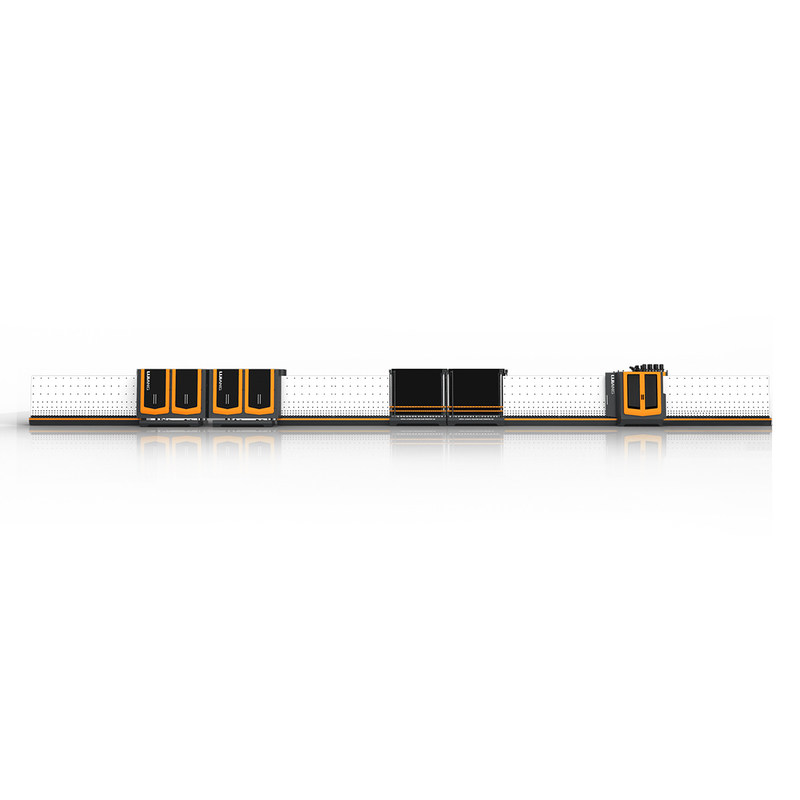

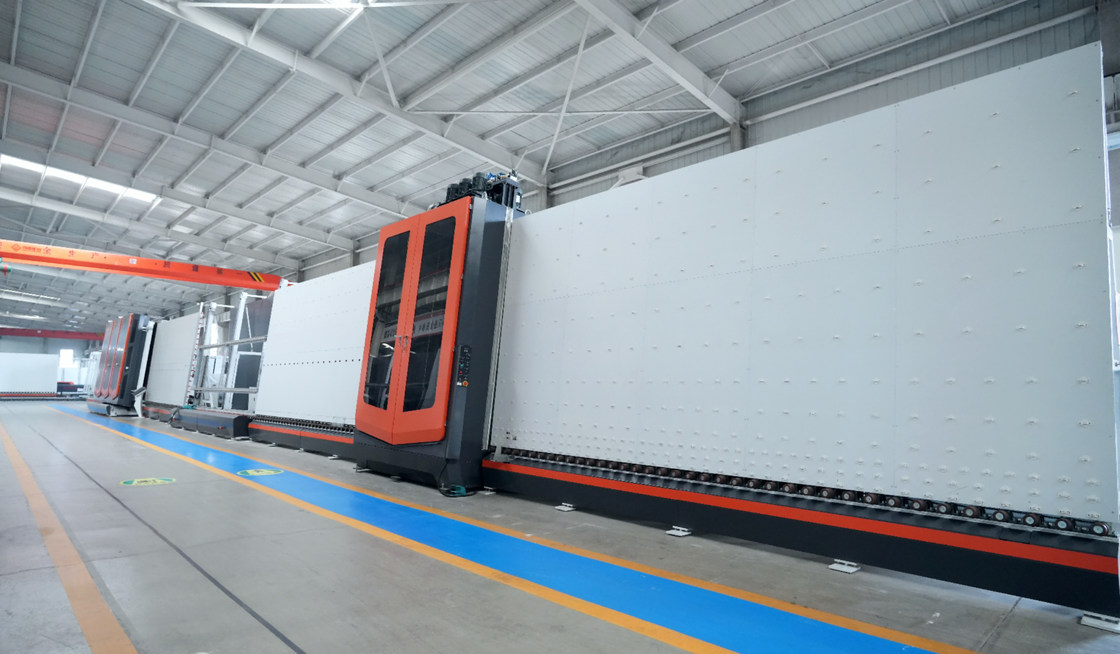

Pictures of Jumbo size automatic insulating glass production line
