Product Details:
|
Certification: | CE ISO | Name: | Spacer Bending Machine |
---|---|---|---|
Weight: | 1580 Kg | Dimension(l*w*h): | 10500*2200*2600 Mm |
Voltage: | 380V 50HZ 3p | Product Name: | Aluminum Spacer Bending Machine |
Automation: | Automatic | Machine Type: | Insulating Glass Production Line |
Color: | Optional | Function: | Insulating Glass Spacer Bending |
Warranty: | 1 Year | Max Bending Size: | 1800*2000 Mm |
Spacer Width: | 5.5-26.5mm | Usage: | Insulating Glass Making |
Min.bending Size: | 150*300 Mm | ||
High Light: | Ig Processing Spacer Bar Bending Device,Insulated Glass Spacer Bar Bending Device,Insulated Glass Spacer Bar Bending Machine |
Automatic spacer bending machine LJZW2020
1.4 different spacer size storage units
2.Can bend aluminum spacer Spacer auto connecting and cutting ,auto avoid spacer connection while bending and cutting
3.Support continuous bending , Auto-connect with next spacer.
4.machine auto stop when no spacer supplied
5.USB input function ,it can read the excel data directly
6.Spare parts of all machine have code ,convenient for after-sale
7.Heavy duty connectors ,convenience and safety for installation and debugging
8.German siemes plc control systerm &servo control system
9.Magnetic valve use Taiwan Airtac Main feature 19.Magnetic valve use Taiwan Airtac
Paramater :
Max.bending size | 2000*2000mm |
Min.bending size | 250*200mm |
Aluminum spacer width | 6-27A |
Dimensional error: | ≤±0.5mm |
Angle error | ≤±1º |
1m*1m aluminum spacer | 17s |
Air supply | ≥0.65MPa |
Total power | AC220/380V 50Hz 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
PLC | GERMAN SIEMENS |
Low voltage electrical apparatus | GERMAN SIEMENS |
Servo motor | GERMAN SIEMENS |
Servo driver | GERMAN SIEMENS |
Relay | JAPAN OMRON |
Triplet | Taiwan AIRTAC |
Cylinder | Taiwan AIRTAC |
TOUCH SCREEN | Taiwan WEINVIEW |
Switch power | Taiwan TEND |
GUIDE | Taiwan TBI |
Solenoid valve | Taiwan AIRTAC |
Sensor | KOREA AUTONICS |

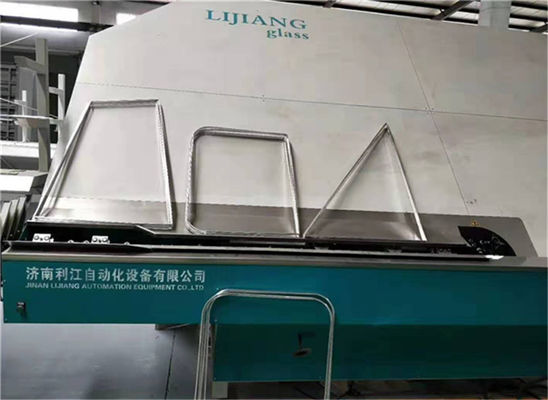

Product details :

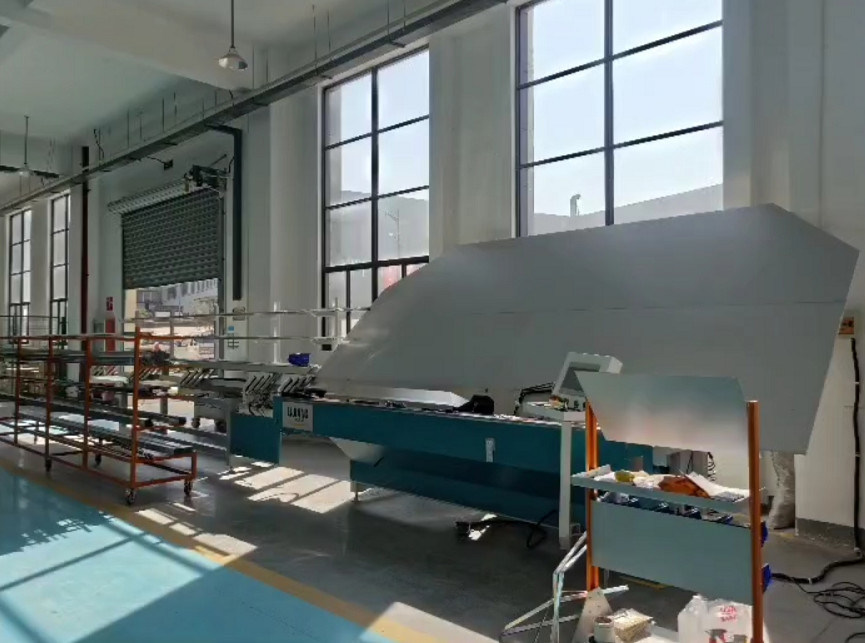

Factory display :

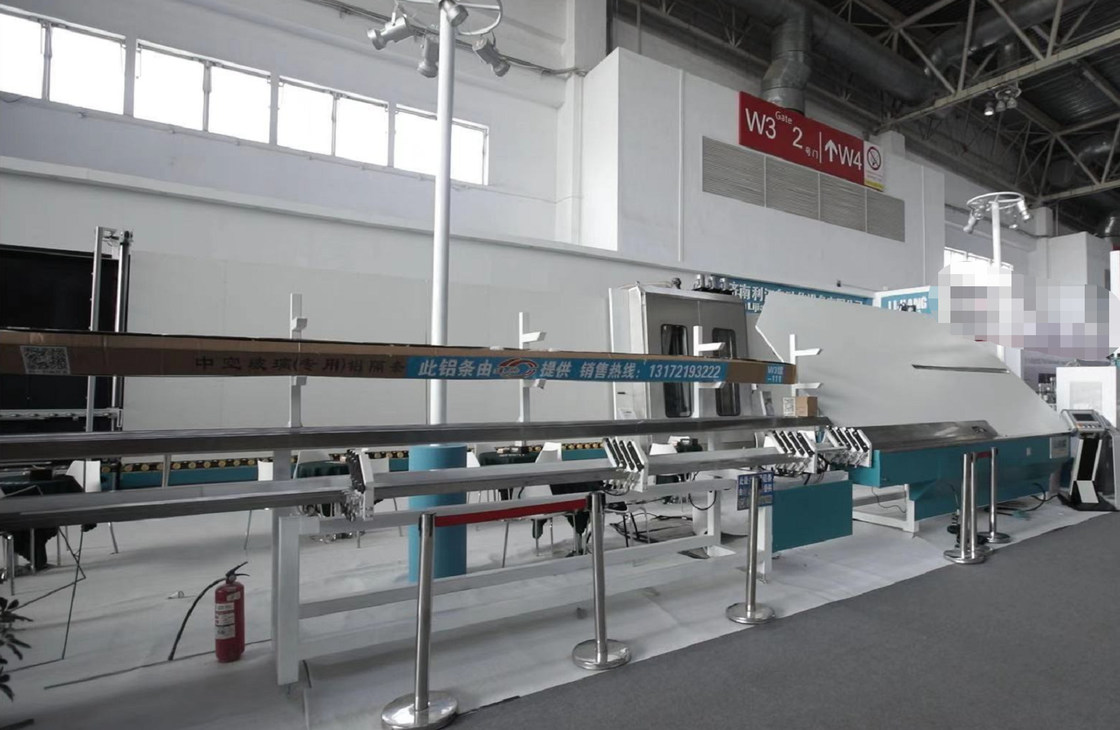

National Expo :
Glass Expo National Glass Expo :Glasstec in Germany , CAM Eurasia Glass in Istanbul, India Zak, India Glasspro, Glasstech Aisa , Glass build in America, Mexico glass expo .Big Five In Dubai, Egpyt. Domestic glass expo : China glass , (Beijing /shanghai), Guangzhou.Glass
