Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function

Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function
Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function

Large Image :  Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJBZ2535G
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 80000 - 100000 per set
Packaging Details: 2 * 40HQ containers
Delivery Time: 90 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets

Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function

Description
Production Name: Insulating Glass Processing Line With Argon Gas Brand: LIJIANG GLASS
Max Glass Size: 2500mm*3500mm Min Glass Size: 280*400
Glass Thickness: 3 - 15 Mm IG Thickness: 60 Mm
IG Types: Double / Triple / Step Glass Washer Machine: Stainless Steel Material
Brushes: 6 Pieces Of Soft Brushes Warranty: 1 Year
High Light:

15 Mm Insulating Glass Production Line

,

3Mm Insulating Glass Production Line

,

15mm insulated glass manufacturing equipment

Automatic 2500*3500 Insulating Glass Line With Filling Argon Gas Function



Automatic Insulating glass production line is the main equipment for making insulated glass products. IGU line has the normal sizes of 2000*2500 and 2500*3500 IG lines and also has jumbo size IGU line of 2500*7000 and 3300*7000.  LJBZ2535G vertical insulating glass production line with filling argon gas can complete the following functions: glass washing machine, aluminum frame installation,  double glass, ordinary triple glass, shaped glass. LJBZ2535G insulated glass processing line is a special equipment in the production of aluminum strip insulating glass, which has the advantages of siemens servo, high efficiency, convenient maintenance and reliable performance .



LJBZ2535G Automatic vertical insulating glass production line includes:

1. LJBZ2535G conveying section
2. LJBZ2535G washing and drying section
3. LJBZ2535G discharging section
4. LJBZ2535G inspection and frame installation section
5. LJBZ2535G flat press  section
6. LJBZ2535G glass pressing and filling argon gas section
7. LJBZ2535G flat press discharging section

Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function 0



Details  of the insulating glass production line LJBZ2535G

01 transfer section

Coating detection machine, automatic detection of offline Low-e film

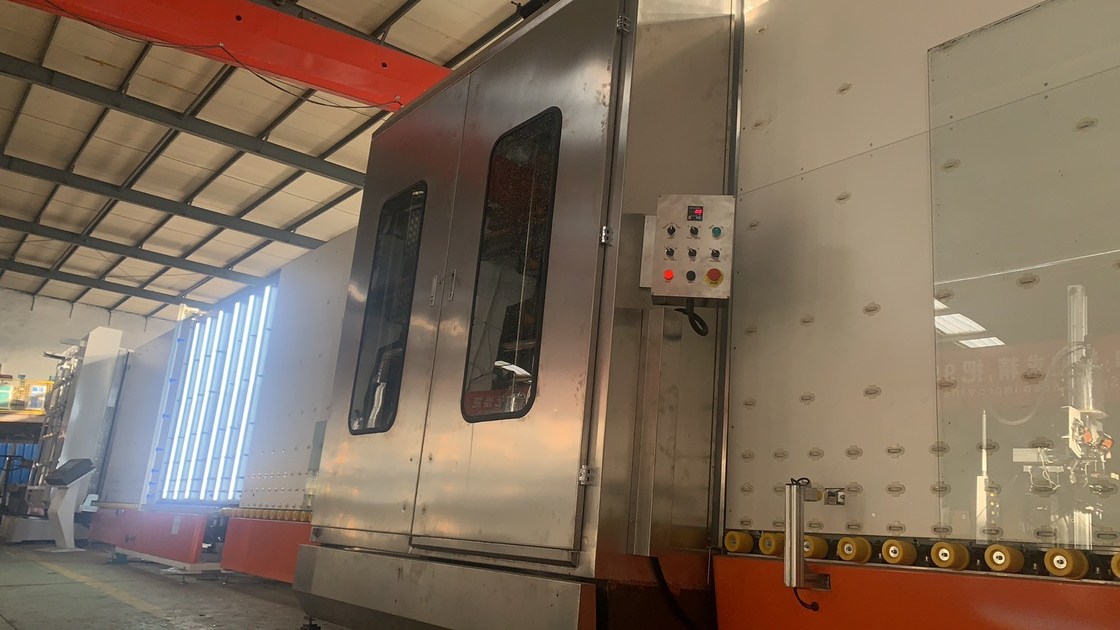

02 washing machine

Main feature:

• Using 3pairs of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• The air knife can automatically adjust the width of the air knife according to the thickness

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• Water tank automatic temperature control, water replenishing system

• Stainless steel material

• European silencer system



03 discharge section

• Storage glass



04 inspection and installation section

It is easy to inspect and wipe the glassThe new structure of this section is changed to an inline beam lifting structure (double beam).

05 transfer section

•  It can be used according to actual needs when working.Automatic measurement of glass thickness.

06 pressing and filling section



Main feature:

• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice

• Adopts conveyor belt to transfer glass, uses servo motor to press glass

• The pressing plate can be opened for easy maintenance

• Pressing board with adjustable structure to guarantee long-lasting service life

• Automatically fill argon gas with significant sealing effect, higher argon content

• Set zones to fill different size of glass with follow-up sealing method reduces argon loss

• Can set gas value and show the process of filling gas on the touch screen



• Fast reacting sensor for permanent control of gas filling process

• Gas concentration can reach more than 90%

• No need to drill holes on the spacer frame

• Standard gas is Argon gas

07 discharge section

• Storage glass

• Can be connected to sealing machine




Tech Parameters of Automatic insulated glass processing line

Max. glass size: 2500mm*3500mm
Max glass size for filling gas: 2500mm*3200mm
Min. glass size: 280mm*450mm
Glass thickness: 3-15mm
Insulating glass thickness: 60mm
Glass washing speed: 2-10m/min
Glass conveyor speed: 45m/min
Washing brushes: 3 pairs of soft brushes with 0.1mm hair
Water supply Water consumption: 0.5t/h conductivity:40μs/cm
Air supply Flow: 0.8m/min
Air pressure: ≥0.8MPa
Total power : 3P 380V 50HZ 40KW
Dimension : 23500*3500*3700mm
Weight: 6500kg
NAME ORIGIN BRAND
Servo motor Germany SIEMENS
PLC Germany SIEMENS
Low voltage electrical appliance Germany SIEMENS
Frequency converter Germany SIEMENS
Transfer motor Taiwan LINHAI
Brush motor Taiwan LINHAI
Water pump China LINGXIAO
Guide Taiwan HIWIN
Pneumatic Components Taiwan AIRTAC
Electric gauge China MIRAN
Photoelectric switch Germany SICK
Micro Switch Taiwan TEND
Button and indicator light France SCHNEIDER
touch screen Taiwan WEINVIEW
Intermediate relay Japan OMRON

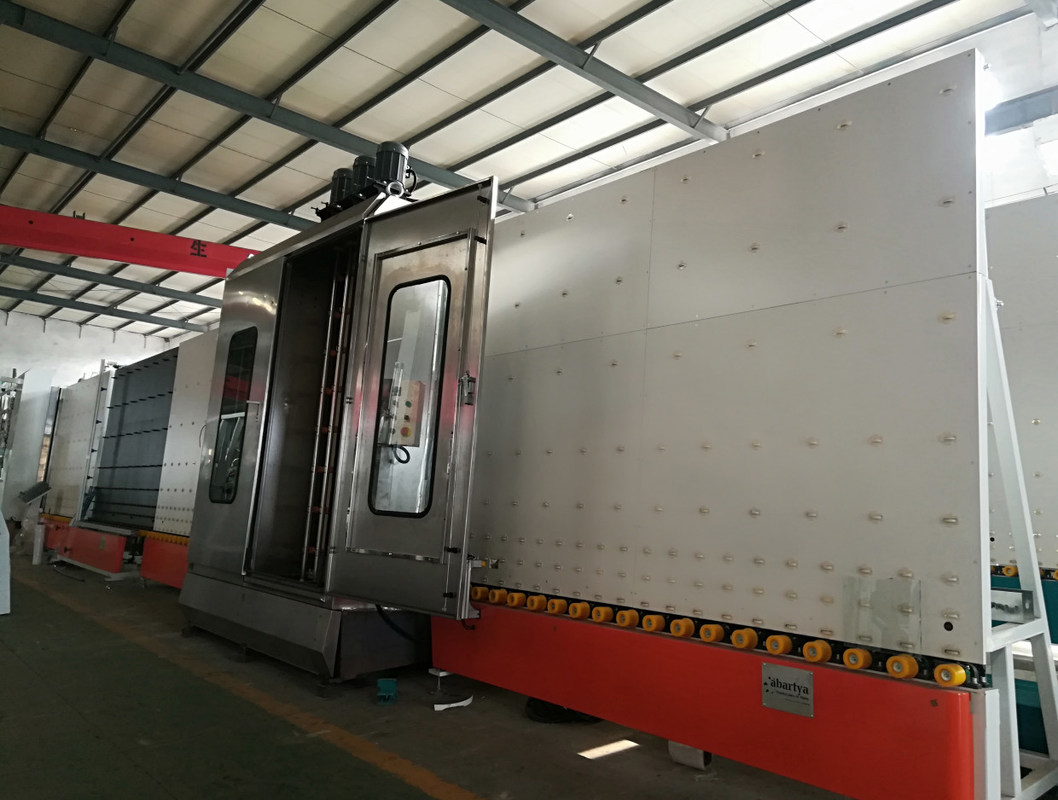

IG line with gas filling online

Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function 1



Other related product of LIJIANG GLASS





Automatic Desiccant Filling Machine

Automatic desiccant filling machine is one of the auxiliary machine for making insulated glass. The new desiccant filling machine can fill the spacer frame with two heads, which can two spacer different spacer frame together.



Main feature of Automatic Desiccant Filling Machine :

• Adopt Siemens PLC control system

• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes

• Touch screen interface, simple and visible

• The machine height can be adjusted according to the size of spacer frame

• Automatically loading and replenish molecular sieve

• Double tubes for unloading to increase filling speed

• Filling time can be adjusted

• Automatically drilling, filling and sealing

• Core parts are imported brands

• Using big plastic barrel, save feeding time and improve efficiency (Optional)

• Protection device for machine head (Optional)

• Filling arc frame (Optional)

• Fill large particle molecular sieve

Double filling heads for filling two different spacer frames



Spares of the desiccant filling machine

PLC: Germany Brand Siemens

Low voltage electrical apparatus: Germany Brand Siemens
Sensor:Korea Brand Autonics
Guide:Taiwan Brand TBI
Triplet:Taiwan Brand Airtac
Solenoid valve:Taiwan Brand Airtac
Gas driller:Taiwan Brand
Switch power:Taiwan Brand Tend

Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function 2Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function 3



Technical data of Automatic Desiccant Filling Machine



Max. frame size 2000mm*2000mm (2500mm*2500mm)
Min. frame size 300mm*250mm
Aluminum specifications 6A- 27A
Air source ≥0.65MPa
Power supply and power consumption AC220V 50Hz 1KW
Molecular sieve diameter needed 0.5-0.9 mm or 1.0 – 1.5mm
Dimension 1100mm*1100mm*3600mm



Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function 4

Molecular sieve filling machine LJFGJ 03

Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function 5Thick 3 - 15 mm Insulating Glass Production Line With Filling Argon Gas Function 6

Main feature

  • Can effectively seal the desiccant,to keep dry
  • Manual filling desiccant into spacer frame
  • Recyclable
  • Easy operating, simple and flexible

Technical data



Power supply 220V 50Hz
Total power 1kw
Dimension 2490*400*2200mm



After sale service of the desiccant filling machine

Ⅰ.Warranty : 1 year
Wearing parts and equipment damage caused by customer's reasons are not included in the free warranty.
Ⅱ. LIJIANG has the own system for after sale service, which including three parts.
1. When LIJIANG equipment arrive customer’s factory, LIJIANG can send engineers to customer’s factory for installation, adjustment and personnel train with free commission. However, customers should bear the engineer’s round-trip air tickets and accommodation.
2. During the warranty year, if there is problem with LIJIANG equipment, LIJIANG will provide timely technology support online firstly. However, if engineer has to go to customer’s factory repair machines, the customer should bear the round-trip air tickets and accommodation. Please notes, if there is damaged spare because of LIJIANG, LIJIANG will prepare them in advance (Except wearing parts).
3. Beyond the warranty period, if LIJIANG equipment has problem, LIJIANG will provide timely technology support online firstly. However, if customers request LIJIANG engineer, the customer should bear the engineer’s round-trip air tickets and accommodation, also the customer should pay LIJIANG 150 dollars per day as service commission.
Note: Before LIJIANG engineers go to customer’s factory, the customer should send the air tickets and hotel details in advance. LIJIANG will arrange the engineer's itinerary and maintenance items ASAP.
