Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment
Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment

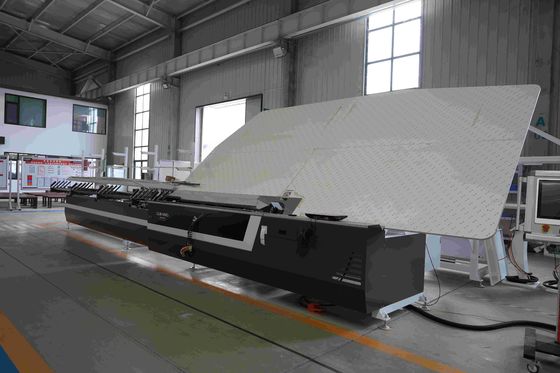

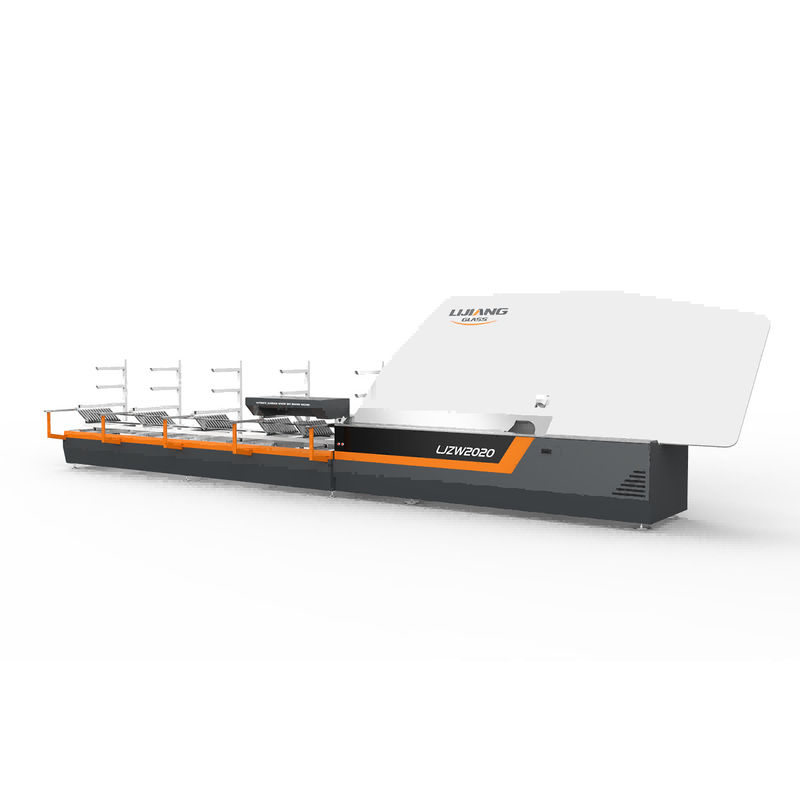

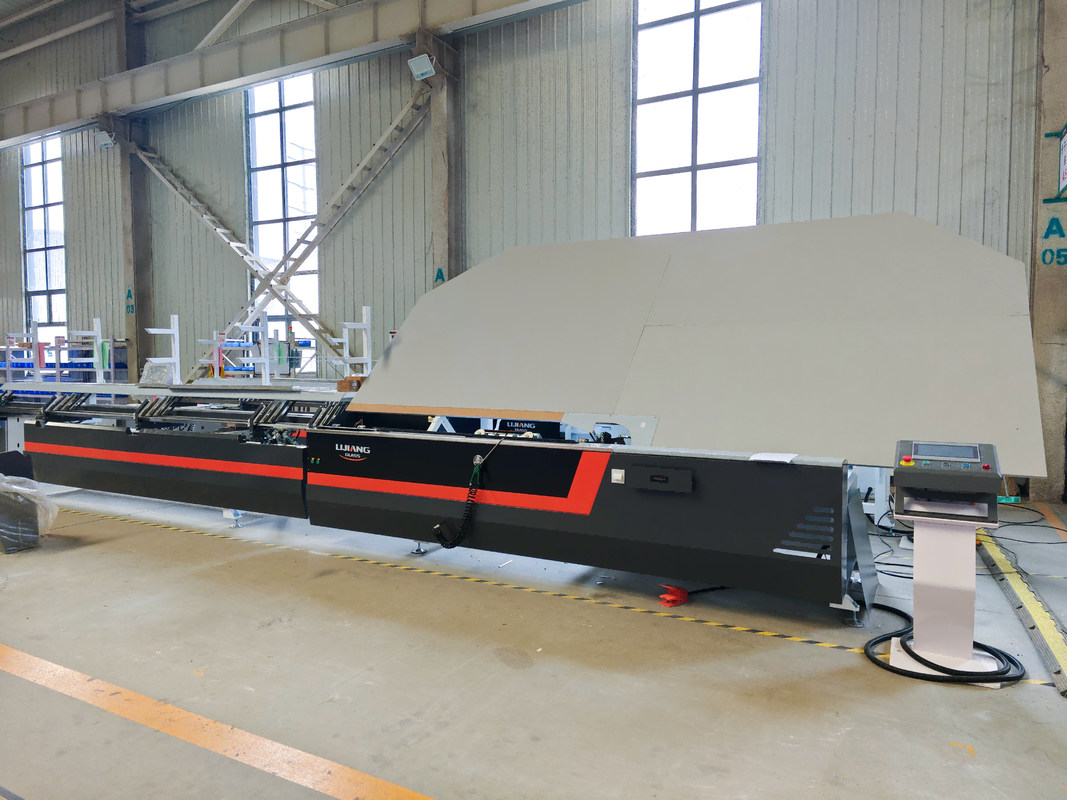

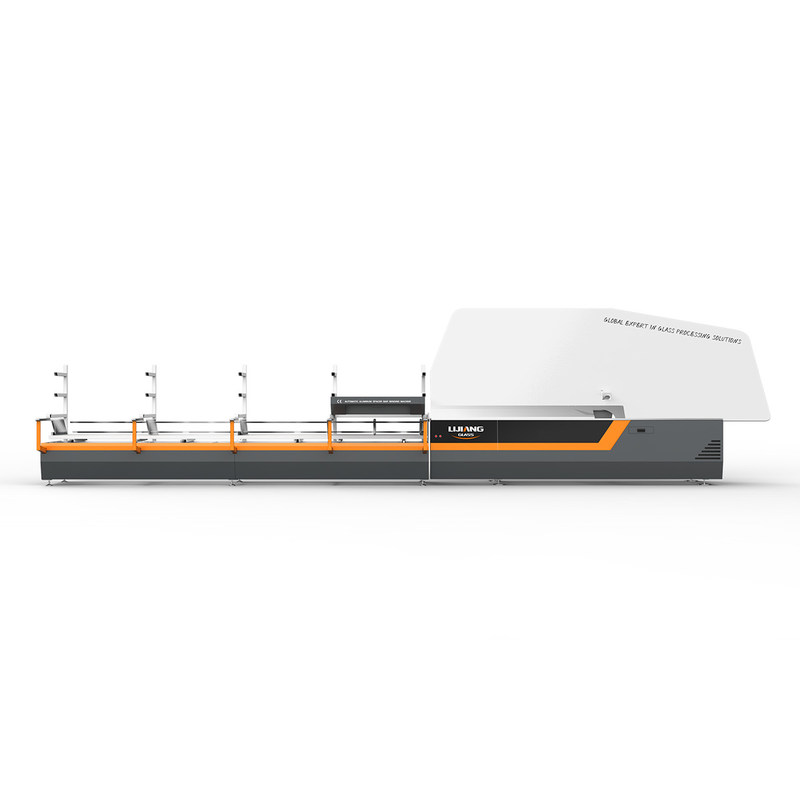

Large Image :  Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment

Product Details:
Place of Origin: CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Container
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment

Description
Production Name: Automatic Aluminum Alu-spacer Bending Machine Max Spacer Size: 1800mm*2000mm(in Once)/2500*4000(in Twice)
Min.bending Machine: 150*300mm Aluminum Spacer Width: 5.5-26.5mm
Spacer Types: Aluminum Space/warm Edge Spacer Servo Motor: Servo Motor
Machine Type: Beading Machine, Usage: Aluminum Spacer Bar Bending, Bend Aluminum Spacer Bar Into Required Shape
Certification: CE Automation: Automatic
High Light:

Glass Processing Spacer Bending Machine

,

1800mm*2000mm Spacer Bending Machine

,

Aluminum Spacer Glass Bending Equipment

Automatic Aluminum Spacer Glass Bending Equipment For Glass Processing



Production Overview of aluminum alu-spacer bending machine

Automatic Spacer bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.Double glazing glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). Insulating glass will be effectively protect radiation when coated Low-E film.Automatic Aluminum spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology.



Main feature of  Automatic Aluminum Spacer Bending Machine



●Automatic Spacer bending machine adopt the servo control feeding system, spacer frame size can be adjusted with an

accuracy of 0.1 mm/m

● CNC bending angle control system with adjustable accuracyof 0.1°

●No material prompt, sleep prompt, fault prompt, work prompt,unreasonable data

refuse processing and prompt Support arc-shaped aluminum frame and special. shaped aluminum frame bending

●Set up four groups of spacers storage units

●Automatically adjust the bending speed according to the size of the aluminum frame

to avoid the deformation of the large frame and ensure the high speed and continuity of the small frame

●Aluminum bar with multiple sizes can be selected at will

●Automatic continuous connection of spacer, cutting spacer,avoldance of spacer bar joint

● USB function, which can read excel directly

● Connect with ERP (optional)





Technical parameter of  Aluminum spacer bending machine

Max. bending size



1800mm*2000mm(in once)/2500*4000(in twice)

Min. bending size



150mm*300mm

Aluminum spacer width



5.5-26..5mm

Spacers racks 4 Racks

Spacer size error



±0.5mm

Angle error



±1°

Processing speed



< 25s (1000mm*1000mm)

Air supply



≥0.65MPa
Voltage 380V50Hz 3P
Total power 2.5KW
Dimension 10500mm*2200mm*2600mm





Detail of Automatic spacer bending machine



1.German siemens plc control system,touch screen interface.Siemens 1200PLC control system with fast working speed.

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 0

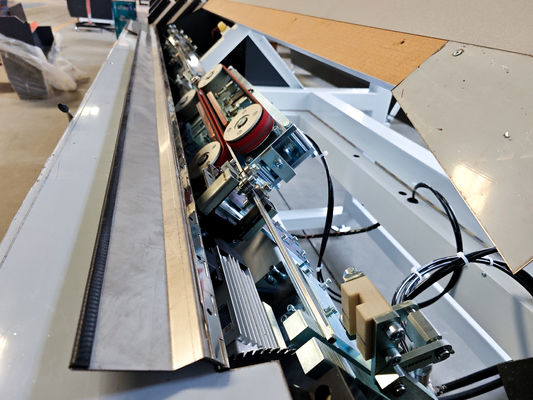

2.Automaticlly cut and feed Aluminum spacers

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 1



3.Automatic Aluminum spacer bending machine have Four or Twelve different spacer size storage units can choose

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 2



4. Aluminum spacers are available in different specifications and in sizes of 5.5-26.5mm

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 3





5.Heavy duty connectors ,convenience and safety for installation and debugging

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 4





6.Support continuous bending , it automatically avoid spacer -connection while bending and cutting

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 5



7.Spare parts of all machine have ID codes.

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 6



8.The special machine hand device is used to bend big spacer frame

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 7





9.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 8

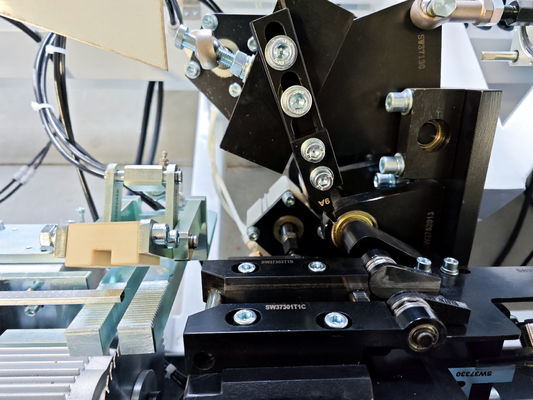

10.Precise bending effect, corner error less than 0.1mm.

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 9Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 10



11.USB input function ,it can read the excel data directly



12.Printing paper label sticker function (Optional),could remove it easily.

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 11

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 12



Related Product




1.Two pump Sealant-spreading Machine LJST02A





Main featureGlass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 13

• Imported motor system to improve equipment efficiency

• Imported sealant gun,stainless steel mixer

• High pressure protect device

• Anti-back flow control structure

• Mixed rate detector can control the rate of two kinds of glue

Technical data



Working air pressure 0.3-0.6MPa
Sealant spreading pressure 15-20MPa
Sealant volume 4L/min
Diameter of A/B sealant 570mm/280mm
Sealant spreading air pressure ratio 50:1
Mixed rate 6:1-14:1
Air supply Flow 0.8m3/min
Air pressure ≥0.8MPa
Overall dimension 1100*950*1630mm



2.Butyl Extruder Machine LJTB 01

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 14



Main feature

• PLC control system, touch screen interface

• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust

• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full

• Fast preheat, improve work efficiency

• with preheating function

• With exhaust inflatable function, improve the quality of sealing and save time for plastic

• Quickly coating speed,can up to 47m/min

• Saving the amount of glue



Technical data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 5.5-26.5mm
Speed 5-47m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5.7KW,50HZ
Dimension 2800×700×900mm(L×W×H)
weight 650kg



3.Butyl Extruder Machine LJTB 03

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 15

Main feature

• PLC control system, touch screen interface

• Frequency control system

• Arc frame coating structure

• Imported pneumatic and hydraulic supercharging system

• Automatic centering and clamping structure

• Loading capacity up to 14KG, saving time for feeding glue

• Adopt five steps to control convey

• Preheating function,glue cylinder limit function,alarm system

• Covey and gluing mechanism adopts the latest design

Technical data



Squeeze pressure 10-18MPa
Temperature 110~140℃
Aluminum spacer width 5.5-26.5mm
Speed 0-40m/min
Diameter of butyl cylinder 200mm
Air supply 0.4m³/min
Air pressure ≥0.6MPa
Total power 380V, 5KW,50HZ
Dimension 2600×680×1100mm(L×W×H)
weight 650kg



4.Smart Vertical Edge Deleting Machine LJCM2545

Glass Processing Spacer Bending Machine Aluminum Spacer Glass Bending Equipment 16



Main feature

• Two-way glass access

• Automatically measure size

• Automatically distinguish low-e surface

• The head can be rotated 360°

• Safe and full automatic device

• PLC control system, touch screen interface

• Six servos control system

• Edge deletion is adjustable

• Intelligent control system, can recognize batch processing





Technical data



Max. glass processing size 2500*4500mm
Min. glass processing size 400*280mm
Glass thickness 3-15mm
Diameter of grinding wheel 200mm
Conveyor height 500mm
Edge deleting width 10-50mm
Transmission speed 1. 29m/min
Edge deleting speed 2-29m/min
Abrasive wheel width 10/12/15mm
Glass thickness 3 - 15mm
Grinding wheel speed 0~3000r/min
Total air consumption 100L/ min
Air pressure ≥0.8MPa
Total power 3P 380V 50Hz 3.35KW
Dimension Dimensions :9700×2500×3400mm
Total weight 3700KG
