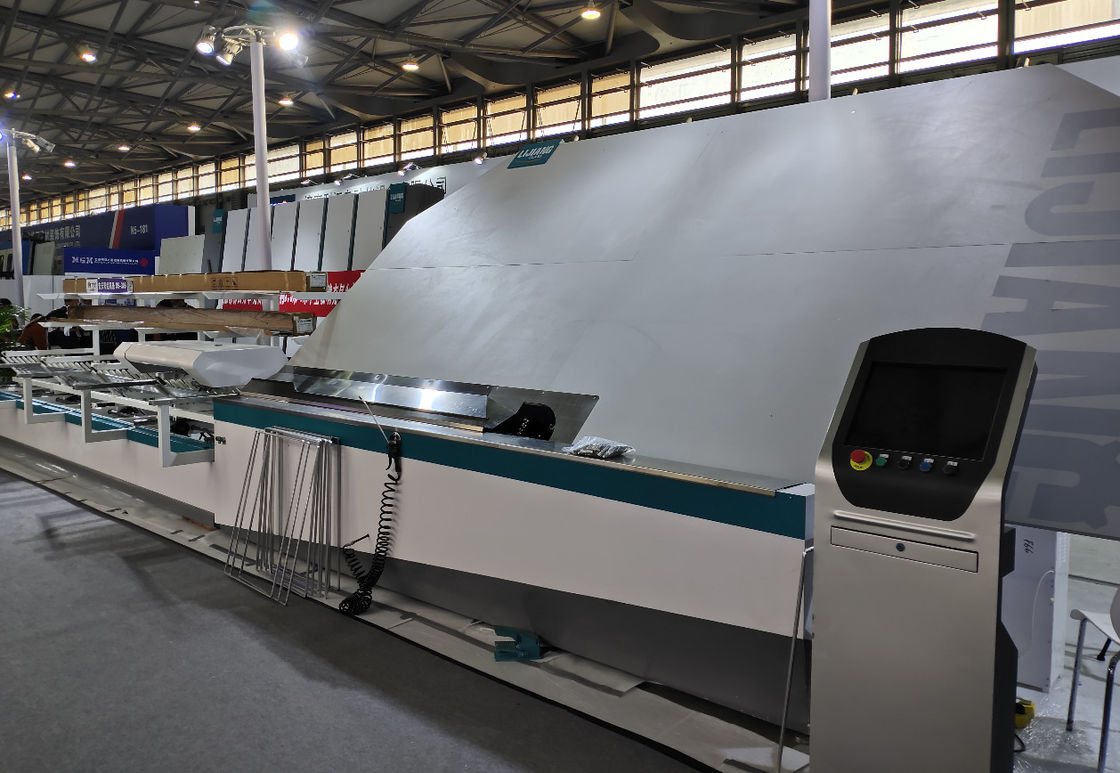

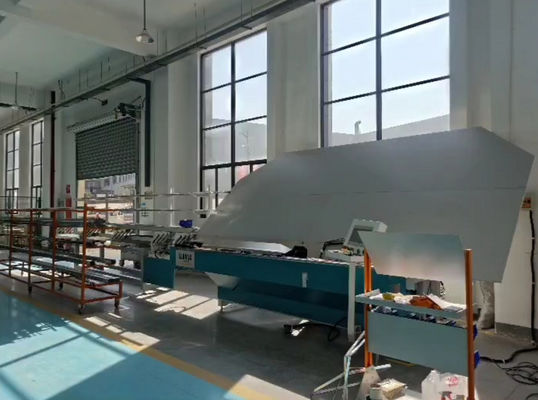

Automatic Insulating Glass Aluminum Spacer Bending Machine for Deep Processing Machine
Production Overview of aluminum spacer bending machine
Insulated glass is made by 2pcs or more float glasses which filled with desiccant of Argon gas with Aluminum frame.Primary seal(butyl)between insulating glass and Aliminum frame, secondry seal(polysulfide or structure). Insulated glass will be effectively protect radiation when coated Low-E film.Automatic Aluminum spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. Aluminum spacer bending machine can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Detail of Automatic Aluminum spacer bending machine
1.Automatic Aluminum spacer bending machine have Four or Twelve different spacer size storage units can choose
2.Automaticlly cut and feed Aluminum spacers
3.Heavy duty connectors ,convenience and safety for installation and debugging
4.Siemens 1200PLC control system with fast working speed.German siemens plc control system,touch screen interface.
5. Aluminum spacers are available in different specifications and in sizes of 6A-27A.
6.Support continuous bending , it automatically avoid spacer -connection while bending and cutting
7.Spare parts of all machine have ID codes.
8.The special machine hand device is used to bend big spacer frame
9.Precise bending effect, corner error less than 0.1mm.
10.Automatic spacer bending machine can bend aluminum spacer /technoform /Alupro /swisspacer/ stainless steel /thermix (optional)
11.Printing paper label sticker function (Optional),could remove it easily.
11.USB input function ,it can read the excel data directly
Main Features of Aluminum spacer bending machine
1.Bending and cutting automaticlly avoid the connection, the roundness,auto matically cut after bending.
2.It can make triangle ,rectangle,positive five squareness,positive hexagon,roundness shap and so on.
3.Pause and Reset device for handling equipment failures
4.PLC control, touch screen simple operation.Siemens 1200 PLC control system with fast working speed
5.Four material strage slots for four different specifications of spacers.
6.Bend aluminum spacer, smooth stainless steel, warm spacer,Automatically avoid the pins while bending and cutting
7.Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 5.5-26.5). Different sizes of aluminum bars require different size tools
Technical parameter of Automatic spacer bending machine
Max. bending size
|
2000mm*2000mm |
Min. bending size
|
250mm*180mm |
Aluminum spacer width
|
6A - 27A |
Spacers racks | 4 Racks |
Spacer size error
|
±0.5mm |
Angle error
|
±1° |
Processing speed
|
< 25s (1000mm*1000mm) |
Air supply
|
≥0.65MPa |
Voltage | 380V50Hz 3P |
Total power | 2.5KW |
Dimension | 10500mm*2200mm*2600mm |
Related Product
Smart Vertical Edge Deleting Machine LJCM2545
Main feature
• Two-way glass access
• Automatically measure size
• Automatically distinguish low-e surface
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Edge deletion is adjustable
• Intelligent control system, can recognize batch processing
Technical data
Max. glass processing size | 2500*4500mm |
Min. glass processing size | 400*280mm |
Glass thickness | 3-15mm |
Diameter of grinding wheel | 200mm |
Conveyor height | 500mm |
Edge deleting width | 10-50mm |
Transmission speed | 1. 29m/min |
Edge deleting speed | 2-29m/min |
Abrasive wheel width | 10/12/15mm |
Glass thickness | 3 - 15mm |
Grinding wheel speed | 0~3000r/min |
Total air consumption | 100L/ min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50Hz 3.35KW |
Dimension | Dimensions :9700×2500×3400mm |
Total weight | 3700KG |
Electrical parameters
NAME | ORIGIN | BRAND |
Servo motor | Taiwan | TAIDA |
PLC | Taiwan | TAIDA |
Pneumatic component | Taiwan | AAIRTAC |
Low pressure electricity | Germany | SIEMENS |
Circuit breaker | Germany | SIEMENS |
Sensor switch | Korea | AUTONICS |
Approach switch | Korea | AUTONICS |
Limit switch | Taiwan | TEND |
Connector | Germany | SIEMENS |
Frequency converter | France | SCHNEIDER |
Main Button | France | SCHNEIDER |
Intermediate relay | Japan | OMRON |
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
Working air pressure | 0.3-0.6MPa |
Sealant spreading pressure | 15-20MPa |
Sealant volume | 4L/min |
Diameter of A/B sealant | 570mm/280mm |
Sealant spreading air pressure ratio | 50:1 |
Mixed rate | 6:1-14:1 |
Air supply | Flow 0.8m3/min |
Air pressure | ≥0.8MPa |
Overall dimension | 1100*950*1630mm |
Butyl Extruder Machine LJTB 01
Main feature
• PLC control system, touch screen interface
• Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust
• The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
• Fast preheat, improve work efficiency
• with preheating function
• With exhaust inflatable function, improve the quality of sealing and save time for plastic
• Quickly coating speed,can up to 47m/min
• Saving the amount of glue
Technical data
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Aluminum spacer width | 6A - 27A |
Speed | 5-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5.7KW,50HZ |
Dimension | 2800×700×900mm(L×W×H) |
weight | 650kg |
Electrical parameters
Name | Original | Brand |
PLC | China | KINCO |
Valve | German | HAWE |
Low voltage electrical apparatus | German | SIEMENS |
Hydraulic and pneumatic supercharging system | German | MAXIMATOR |
Frequency converter | China | KINCO |
Pneumatic components | Taiwan | ARTAC |
Quick exhaust valve/Vacuum generator | Japan SMC | SMC |
Travel light | Japan | OMRON |
Optical fiber | Japan | OMRON |
Manual Gas Filling Machine LJCJ02N
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full,it will alarm and stop automatically
• Can set and display the data of gas value
Technical data
Power supply | 220V 50Hz |
Total power | 0.1kw |
Dimension | 620*439*700mm |
Glass loading lifting table LJ2510P-09
Main feature
Technical data
Dimension of table-board | 2500*600mm |
Load | 2500*600mm |
Height of lifting | 1200mm |
Color | Yellow |
