Product Details:
|
| Name: | Automatic Warm Spacer Bending Machine LJZW 2020 | Processing Speed: | ≤26s |
|---|---|---|---|
| Air Supply: | ≥0.65MPa | Total Power: | AC220/380V 50Hz 2.5KW |
| Dimension: | 10500mm*2200mm*2600mm | Angle Error: | ±1º |
| High Light: | 2000mm*2000mm Spacer Bar Bending Machine,Insulating Glass Spacer Bar Bending Machine,2000mm*2000mm aluminum bending machine |
||

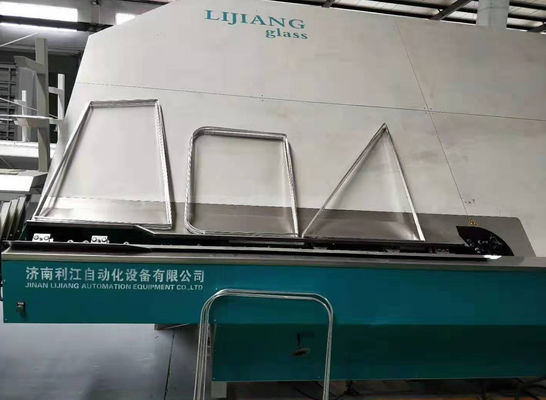

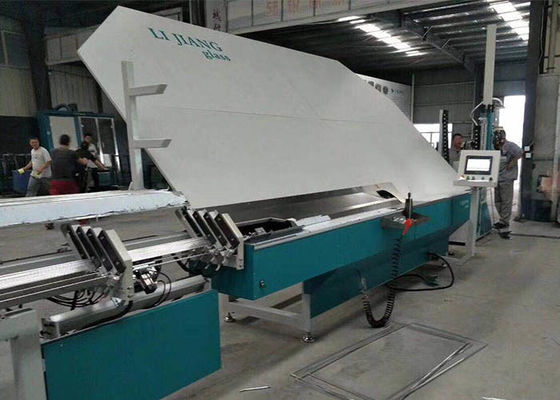

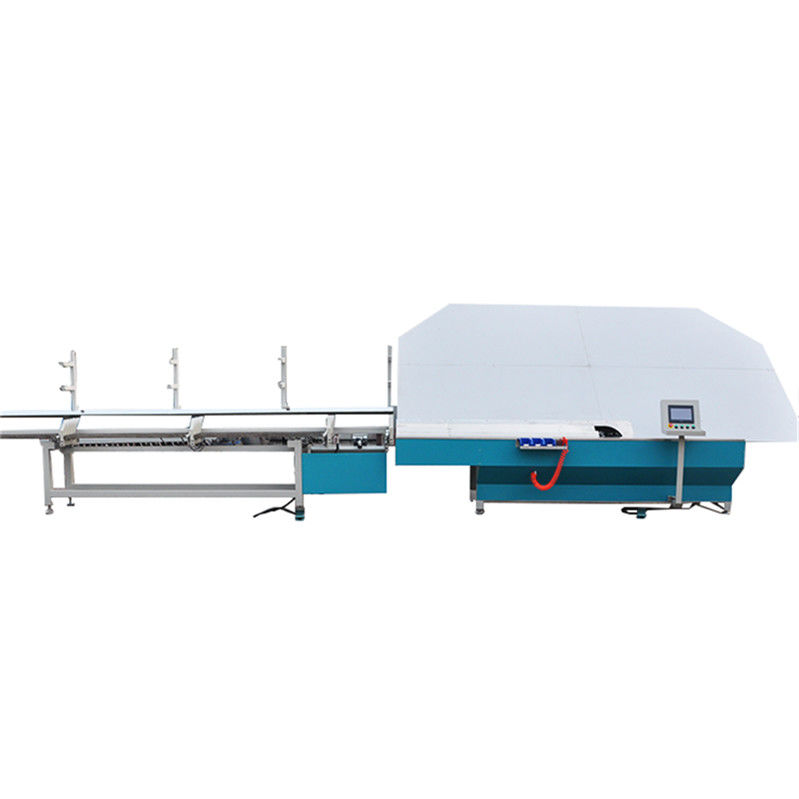

Auto aluminum spacer bending machine bending aluminium bar machine aluminum spacer shape bending machine
Main feature of edge bending machine
• Germany Siemens PLC control system, touch screen interface
• Japan FUJI CNC servo control system
• Four spacer size storage units
• Using servo system to control feeding mechanism
• Automatically cut and feed aluminum spacers
• Auxiliary function of adjustment for bending large aluminum frame
• Aluminum spacers are available in different sizes and sizes
• Bend shaped spacer frames continuously
• Separated guard board outside of bender
• Automatically avoid the connection while bending and cutting
• Pause and Reset device for handling equipment failures
• Can bend aluminum spacer, Technoform, Alupro, Thermix, warm spacer (Swisspacer)
• USB input function, read the excel format file directly etc (Optional)
• Stainless steel (Optional)
• Automatic drill gas filling hole (Optional)
• Connect to ERP system (Optional)
• Spacer printing code function (Optional)
• Printing label sticker function (Optional)
Technical data of frame bending machine
| Max. bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min. bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters of manual bending machine
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | JAPAN FUJI | Solenoid valve | Taiwan AIRTAC |
| Servo driver | JAPAN FUJI | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
FAQ of aluminum spacer bars
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
Q: About this Machine,What’s the guarantee ?
A:1)Our guarantee for 12 months.
2)24 hour’s technical support by email or calling
3)English manual and video tutorial
4)We will provide the consumable parts at an agency price
5)24 hours on line service each day, free technical support.
Q:How about your warranty?
A:Generally, our warranty is one year. Within the warranty period, we can offer technique
support, Feedback to you within 24 hours and help you to repair your problem controller
freely, even it's not from our factory
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will
help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A:At most of time, we have stock in the factory. If there is no stock, normally, the delivery time
is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making
special arrangement for you.
