thickness 3 - 15mm Glass Grinding And Polishing Machine For Glass Processing

Glass Grinding and polishing the edge of Glass for glass processing

Glass Grinding and polishing of edges

In the glass process, extra processing of edges is commonly used for tempered glass. Grinding of edges is also done in order to increase the safety of using the glass, e.g. in walls and ‘frameless doors’, where the danger of injury exists.

Low-E glass, also known as Low-E glass, is a kind of film product composed of multilayer metal or other compounds coated on the surface of glass. The coating layer has the characteristics of high transmittance to visible light and high reflection to mid far infrared ray, which makes it have excellent heat insulation effect and good transmittance compared with ordinary glass and traditional coated glass for building.

Main feature of Low-E glass grinding and polishing:

Low-E glass edge deletion contains 3 sections: glass loading section, deleting section and glass unloading section. The deletion machine has 4 kinds of different directions. Online low-e and outline low-e glass.

The vertical low-e film edge deletion machine can delete the double or triple low-e film.

• Two-way glass access
• Edge deletion is adjustable
• Delete double and triple silver low-e glass
• Automatically measure glass size
• Automatically distinguish low-e surface
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing

Electrical parameters

Specification :

Low-e glass types:

Single silver Low-E glass

Single silver Low-E coated glass usually contains only one functional layer (silver layer). In addition to other metal and compound layers, the total number of coating layers reaches 5.

Double silver Low-E glass

The double silver Low-E coated glass has two functional layers (silver layer), plus other metal and compound layers, the total number of coating layers reaches 9. However, the technical process control of double silver Low-E glass is much more difficult than that of single silver.

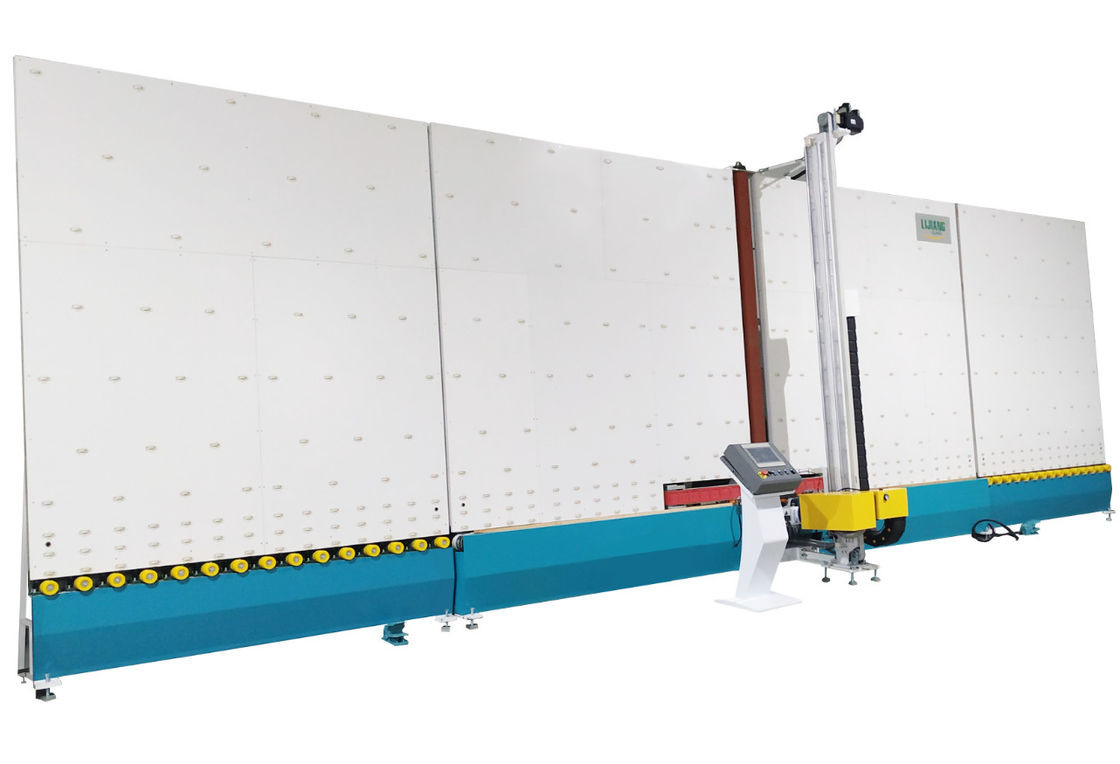

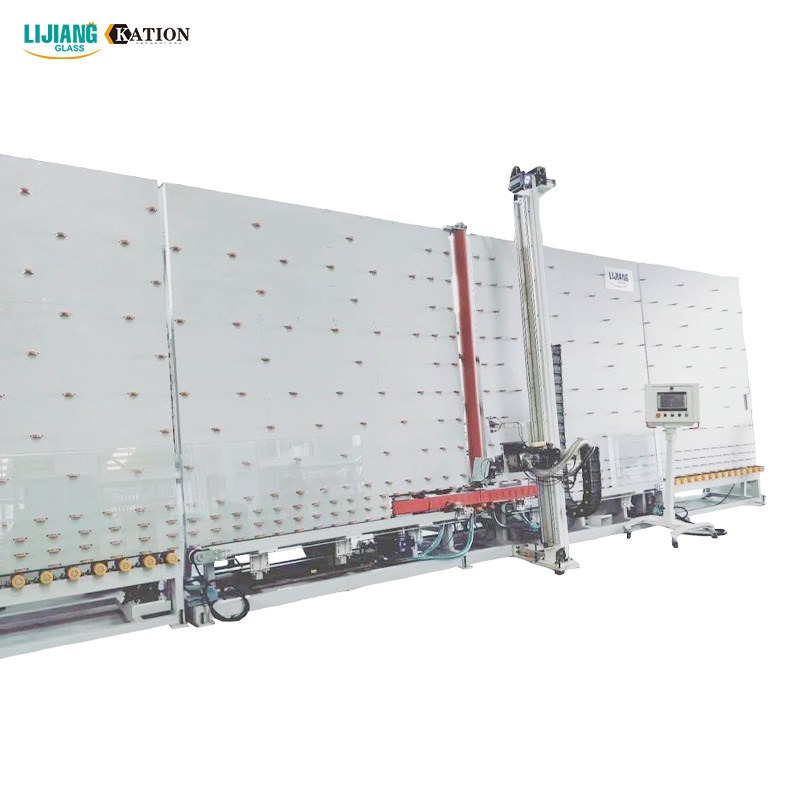

Details of Low-E glass deleting machine

1.Glass processing machine adopt PLC control system,touch screen interface



2.Glass Grinding machine can Auto distinguish coating side of low-e glass.

3. Two-way glass access

4.Low-e Glass deleting machine can Auto measure the size and the thickness


5.Safety protection device auto-dedusting function

6.The head can be rotated 360°

7.Control system intelligently memorize batch processing function
8.Auto-modified function,The pressure of edge deleting is stable and adjustable

Jinan Lijiang Automation Equipment Co., Ltd. iis an enterprise which integrated glass processing equipment research and development, sales and service into a whole.our products have been exported to Europe, America, South America, the Middle East, Southeast Asia, India, nearly 30 countries and regions. With the rapid development of insulating glass industry, LIJIANG is looking forward to working with you for win-win situation and jointly creating a new world.
