Product Details:
|
| Machine Name: | Low-e Glass Film Deletion Machine | Low-e Glass: | Off Line / Online |
|---|---|---|---|
| Max Size: | 2500*4000 | Grinding Wheels: | 8 10 12 Normally |
| Warranty: | 1 Year | Using: | Connect IG Line |
| High Light: | E Glass Film Edge Deletion Machine,Servo Film Edge Deletion Machine,Low E Glass Film Deletion Machine |
||

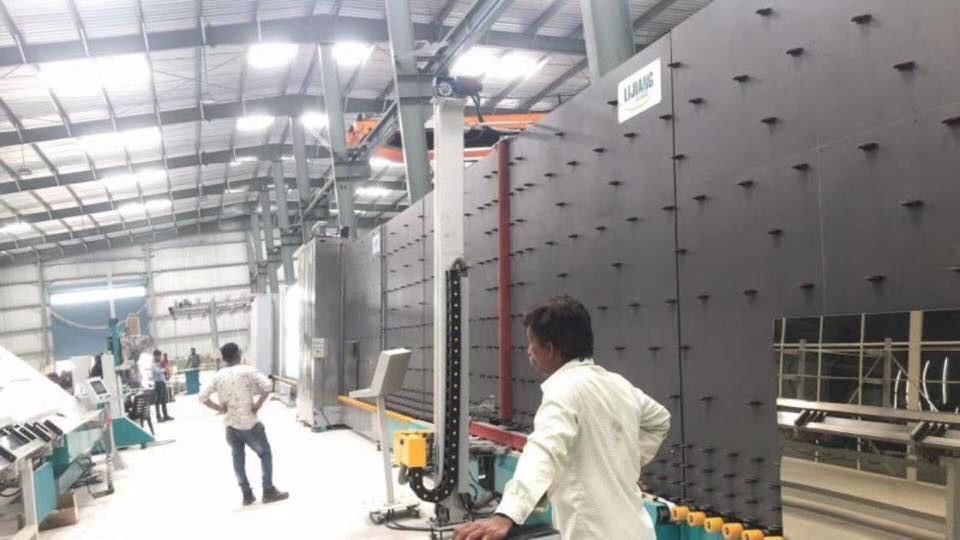

Automatic vertical Low-e glass film edge deletion machine with servo motor control
Vertical Edge Deleting Machine LJCM2545can be connected to the insulating glass production line and it is the necessary equipment in hollow glass processing. Speed of transmission and grinding are adjustable, and the machine is equipped with automatic cleaning system. The device has a small footprint, high efficiency, reliable performance, easy maintenance and so on.
Machine Parameters:
| Power Supply | Voltage(V) | 380V |
| Hertz(Hz) | 50 | |
| Total Power | kw | 3.35 |
| Transmission speed | m/min | 2~29 |
| Edge finish speed | m/min | 2~29 |
| Glass thickness | mm | 3~19 |
| Edge finish width | mm | 10~150 |
| Diameter of grinding wheel | mm | 200 |
| Width of grinding wheel | mm | 10,12,15 |
| Grinding wheel speed | r/min | 0~3000 |
| The smallest glass size | mm | 350×500 |
| The largest glass size | mm | 2500×4500 |
| Height of conveyor roller | mm | 500 |
| Total air consumption | L/ min | 100 |
| Total weight | kg | ≈3700 |
| Dimensions | L×W×H(mm) | 8000×2500×3400 |

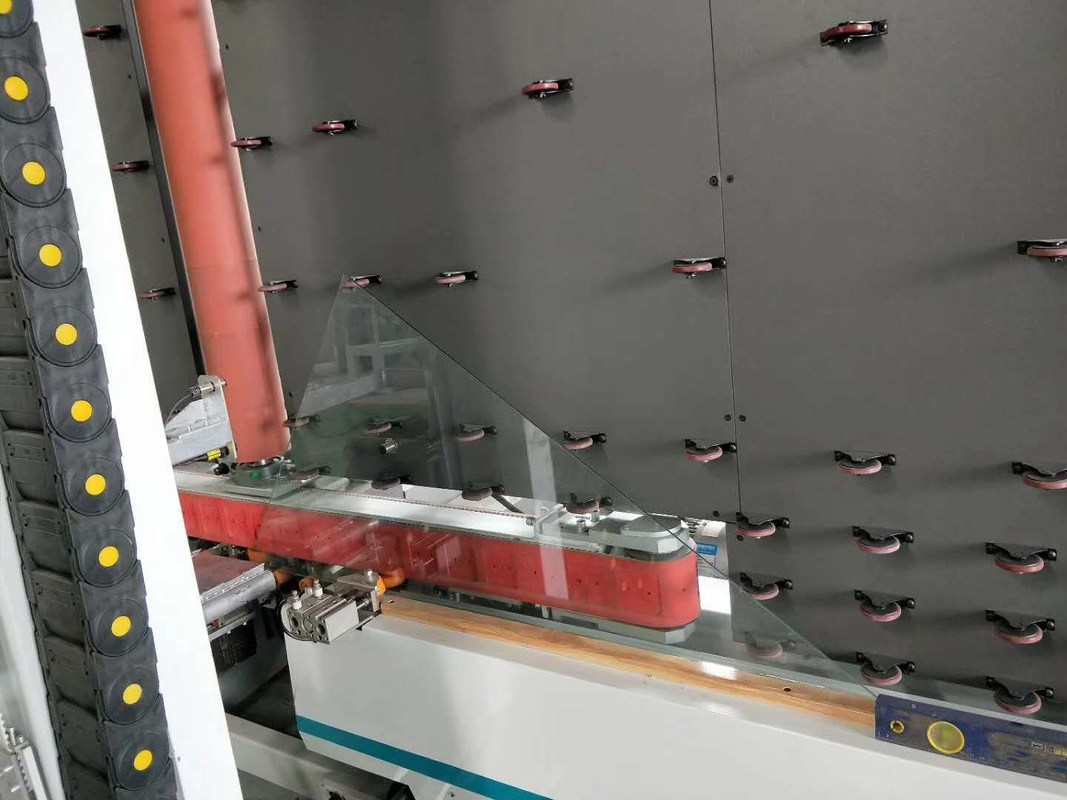

The Vertical Edge Deleting Machine LJCM2545 is composed of roller, column, transmission, grinding wheel calibration and dressing institutions, gas system, and vacuum suction system.
The edge deleting machine LJCM2545is inclined vertical structure, with the back board of MDF and foldable rack ,so it is easy to transport.All the mechanical design including transmission, column and vacuum sucker are used servo motor control. The transferring speed of timing belt can be adjusted according to need, the glass can run at the appropriate speed stably.
Main feature
• Two-way glass access
• Delete double and triple silver low-e glass
• Automatically measure glass size
• Automatically distinguish low-e surface
• Edge deletion is adjustable
• The head can be rotated 360°
• Safe and full automatic device
• PLC control system, touch screen interface
• Six servos control system
• Intelligent control system, can recognize batch processing
Technical data
| Max. glass processing size | 2500*4500mm |
| Min. glass processing size | 400*280mm |
| Glass thickness | 3-15mm |
| Diameter of grinding wheel | 200mm |
| Conveyor height | 500mm |
| Edge deleting width | 10-50mm |
| Transmission speed | 29m/min |
| Edge deleting speed | 2-29m/min |
| Abrasive wheel width | 10/12/15mm |
| Glass thickness | 3 - 15mm |
| Grinding wheel speed | 0~3000r/min |
| Total air consumption | 100L/ min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 15KW |
| Dimension | Dimensions :9700×2500×3400mm |
| Total weight | 3700KG |
Electrical parameters
| NAME | ORIGIN | BRAND |
| Servo motor | Taiwan | TAIDA |
| PLC | Taiwan | TAIDA |
| Pneumatic component | Taiwan | AAIRTAC |
| Low pressure electricity | Germany | SIEMENS |
| Circuit breaker | Germany | SIEMENS |
| Sensor switch | Korea | AUTONICS |
| Approach switch | Korea | AUTONICS |
| Limit switch | Taiwan | TEND |
| Connector | Germany | SIEMENS |
| Frequency converter | France | SCHNEIDER |
| Main Button | France | SCHNEIDER |
| Intermediate relay | Japan | OMRON |
