Product Details:
|
| Name: | Low-e Glass Film Remover | Application: | Glass Processing |
|---|---|---|---|
| Usage: | Insulating Glass Processing | Max Glass Size: | 2500*4500mm |
| Min Glass Size: | 300*350mm | Edge Deleting Width: | 10-150mm |
| Edge Deleting Speed: | 0-15m/min | Glass Thickness: | 3-15mm |
| Air Pressure: | >0.8MPa | Conveyor Speed: | 30m/min |
| Grinding Wheel Width: | 10/12/15mm | Servo Control System: | 6 |
| High Light: | glass grinding equipment,glass edge polishing machine,Film Remover Glass Edge Grinding Machine |
||
Vertical grinding machine is used to delete the edge film of the Low-e glass. High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
Technical data of edge deleting machine
| Max.glass processing size | 2500*4500mm |
| Min.glass processing size | 350*500mm |
| Glass thickness | 3-15mm |
| Edge deleting width | 10-50mm |
| Glass conveyor speed: | 30m/min |
| Edge deleting speed | 0-15m/min |
| Abrasive wheel width | 10/12/15mm |
| Air supply | Flow 0.2m3/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50Hz 3.35KW |
| Dimension | 8000*2500*3400mm |
Main feature of glass grinding equipment
1.PLC control system,touch screen interface
2.Two-way glass access
3.Automatically distinguish low-e surface
4.Edge deletion is adjustable,High quality grinding wheels are durable, can produce neat and beautiful grinding crack. The distance can be set among 10 ~ 150 mm arbitrarily.
6.Intelligent control system, can recognize batch processing
7.The glass edge deleting machine adopts imported servo control system, positioning accurately with smooth operation
8.The head can be rotated 360°

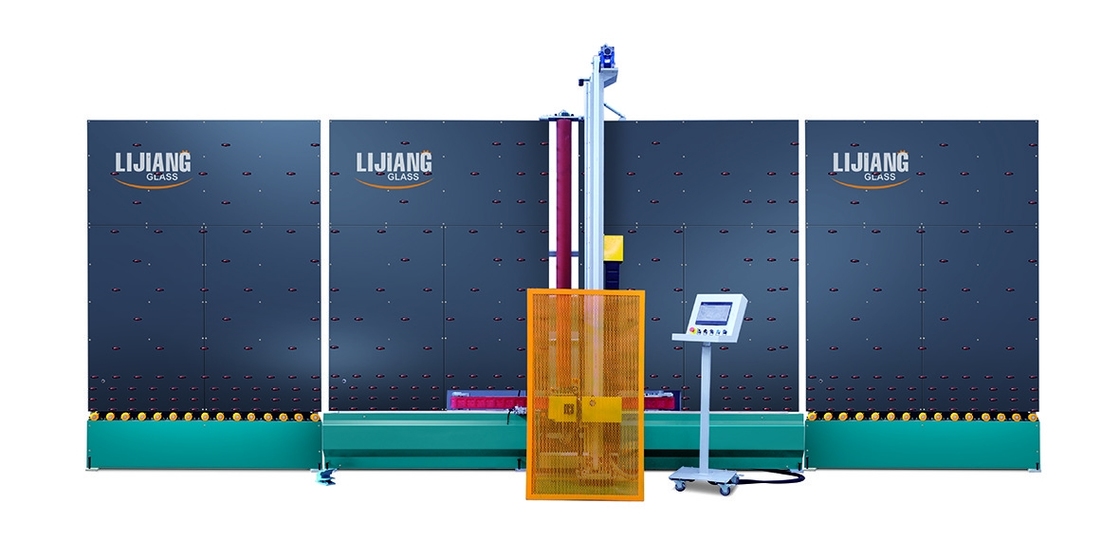

Product picture
Related products
Main feature of Insulating glass sealing machine
1.Min & Max glass sizes can be optional
2.Adopt 8 servo motors,l Adopt Japan ANCHUAN servo control system with stable performance
3.Adopt timing belt to keep smooth convey with accurate position
4.Automatically measure glass size, glue depth and glue speed with linear adjustment
5.Full automatic and high-efficiency machine
6.Spares are produced with high standardization and high precision, ensure the machine can be used with long-term working
7.The glass corners are full without air bubbles, smooth surface, no need to
8. Could seal eight shapes of IG units.
9.The robot uses eight YASKAWA servos, four of them control transmission parts, in the another four servos, they control sucker, lifting, driving and revering mechanism and rotating.
Technical data
| Max.glass size | 2500mm |
| Min.glass size | 170mm*400mm (2000mm machine) |
| Glass thickness | 12-56mm |
| Working speed | 5-40m/min |
| Air pressure | 0.6-0.8MPa |
| Squeeze pressure | <350kg/m³ |
| Plane angle | 6°- 9° |
| Max glass weight | 400kg |
| Voltage power | 380V 12kw |
| Overall dimension | 8700mm*2000mm*3500mm |
Main components list
| Name | Brand |
| Switch | SIEMENS |
| Servo motor | Japan YASKAWA |
| I/O model | Japan MSYSTEM |
| Lower voltage component | Siemens |
| CPU | Japan YASKAWA |
| Frequency converter | Japan OMRON |
| Switching power supply | Taiwan MW |
| Pneumatic component | Japan SMC |
| PLC | Siemens |
| Guideway | Siemens |
