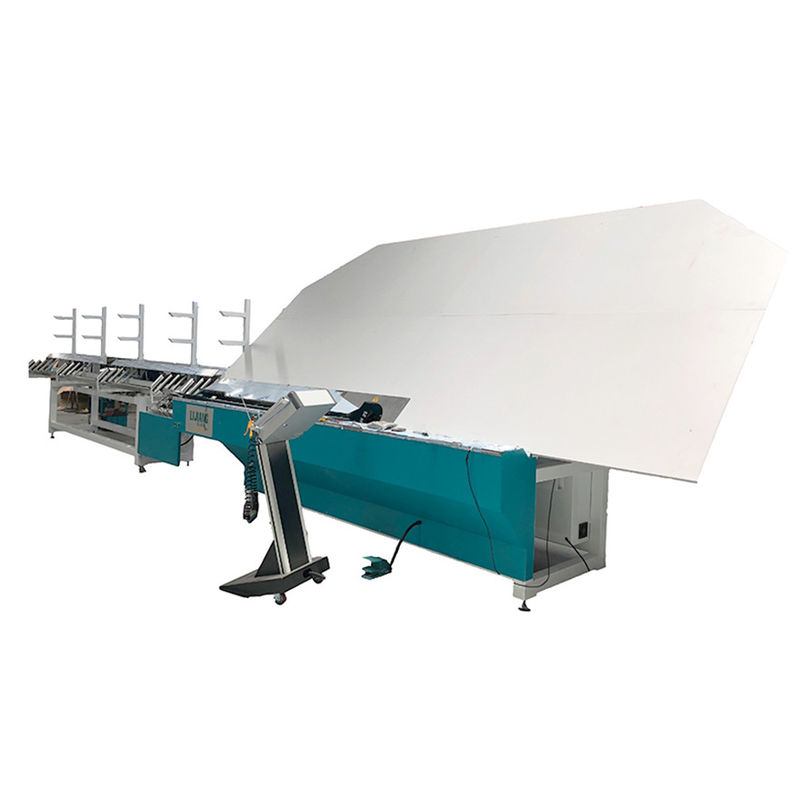

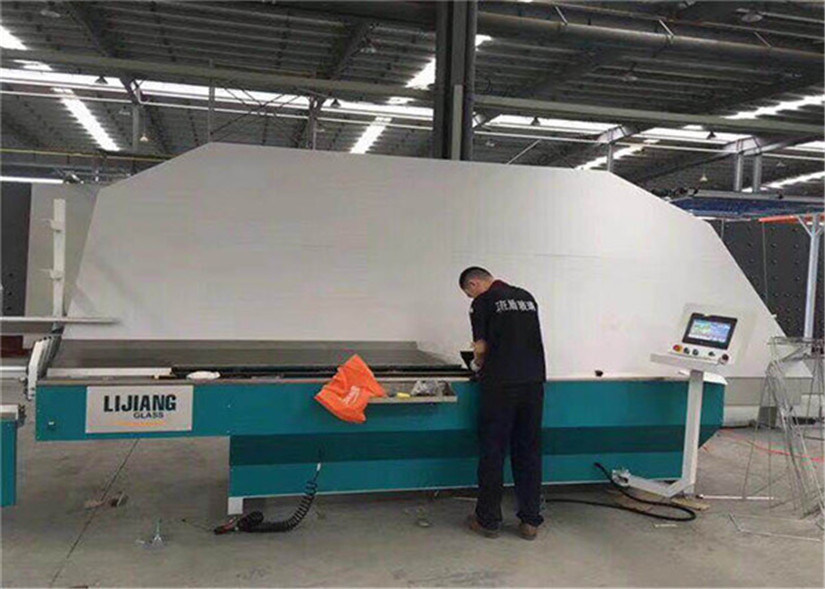

Product Details:
|
| Max.bending Size: | 1800*2000mm(once)/2500*4000 Mm (twice) | Min.bending Size: | 150*300 Mm |
|---|---|---|---|
| Aluminum Spacer Width: | 5.5-26.5 Mm | Spacer Racks: | 4 |
| Spacer Size Error: | ±1° | Angle Error: | ±0.5mm |
| Conveying Speed: | 1250mm/s | Voltage: | 380v |
| Total Power: | 2.5kw | Dimension: | 10500mm*2200mm*2600mm |
| Weight: | 1580kg | ||
| High Light: | Aluminum Frame Spacer Bending Machine,150*300 Mm Spacer Bending Machine,150*300 Mm frame bending machine |
||
1. It can set 4 specifications and 32 sizes (8 for each specification) of the original glass sheet size data. The bending machine automatically calculates the aluminum frame data according to each size for sorting, continuous processing, greatly improving efficiency and speed.
2. In addition to start stop operation, all operations are completed on the touch screen, and the mobile operation platform is available. Chinese / English or other languages operation interface, easy to operate, natural, easy to understand.
3. The CNC bending angle control system is adopted, with an adjustable accuracy of 0.1 °.
4.The CNC servo feeding system is adopted, and the adjustable precision of aluminum frame size is 0.1M m/m
5. There is no tailing design, except for cutting loss, zero head processing can be realized.
6. There are four automatic storage tanks, which can store 4-6m aluminum strip materials of four specifications.
7. It has the function of high-speed automatic continuous cutting of aluminum strip.
8. The bending speed shall be adjusted automatically according to the size of aluminum frame to avoid deformation of large frame and ensure high-speed and continuous small frame.
9. The aluminum spacer bar is automatically connected, and the aluminum strip joint is designed with intelligent avoidance (to avoid bending or cutting to the joint part).
Optional functions :
1. Printing logo and data on spacers with ink.
2. With ERP function
3. Printing label with 3 sizes one the paper sticker
4. Bending different shapes
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters:
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Servo driver | Germany | SIEMENS |
| Servo motor | Germany | SIEMENS |
| Low voltage component | Germany | SIEMENS |
| Triplet | Taiwan | AIRTAC |
| Cylinder | Taiwan | AIRTAC |
| Relay | Japan | OMRON |
| Sensor | KOREA | AUTONICS |
| Touch screen | Taiwan | WEINVIEW |
| Guide | Taiwan | TBI |
| Solenoid valve | Taiwan | AIRTAC |
| Switch power | Taiwan | TEND |
