Product Details:
|
| Name: | Warm Edge Spacer Of Insulating Glass | Colour: | Customerized |
|---|---|---|---|
| Dilivery Time: | 10days | Material: | Sealant |
| Sample: | Can Be Support | Advantage: | New Technolgy Of Warm Edge |
| High Light: | Thick 0.35mm Warm Edge Spacers,L5M Warm Edge Spacers,0.35mm double glazing spacers |
||

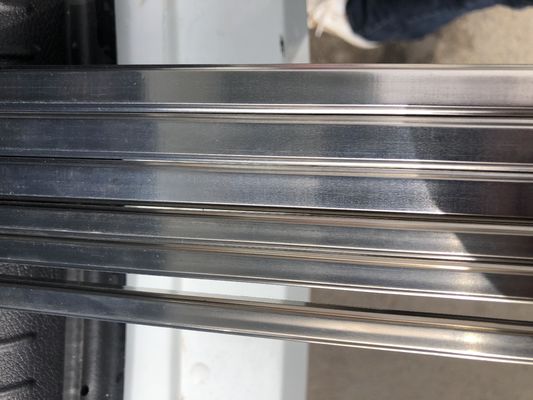

High quality Insulating Glass warm edge spacers for insulating glass processing and professional spacer bending machine
Warm Adge Spacer with Butyl Sealant for Insulating Glass Processing
Insulating glass warm edge with sound insulation, heat insulation, energy saving, safety, anti-fog and other functions applicable to building curtain wall, windows and doors glass, trains, ships, aircraft, refrigerators.
Compared to the normal spacer bar the adcantage of warm edges
------Can reduce the heat transfer coefficient of the whole window
------Improve the dew resistance of insulating glass
------effectively reduce the possibility of glass self- explosion crack
Declare:
1.Thickness is customized according to requirements
2.The packing quantity of each carton is decided by model, thickness and length
.Rustless, corrosion, high brightness.
.Surface evenly, straightness, and no deformation and dimensional stability.
.Connected by only one straighter, good sealing with long lifetime.
limit deviation of peripheral wall thickness is ±0.025mm.
High strength, toughness, and with continuous bend to any angle of ending equipment aluminum frame.
Well arranged vents.
To ensure that activities of molecular sieve, guarantees and various types of adhesive with excellent adhesion.
Energy saving and environmental protection, low heat transfer coefficient

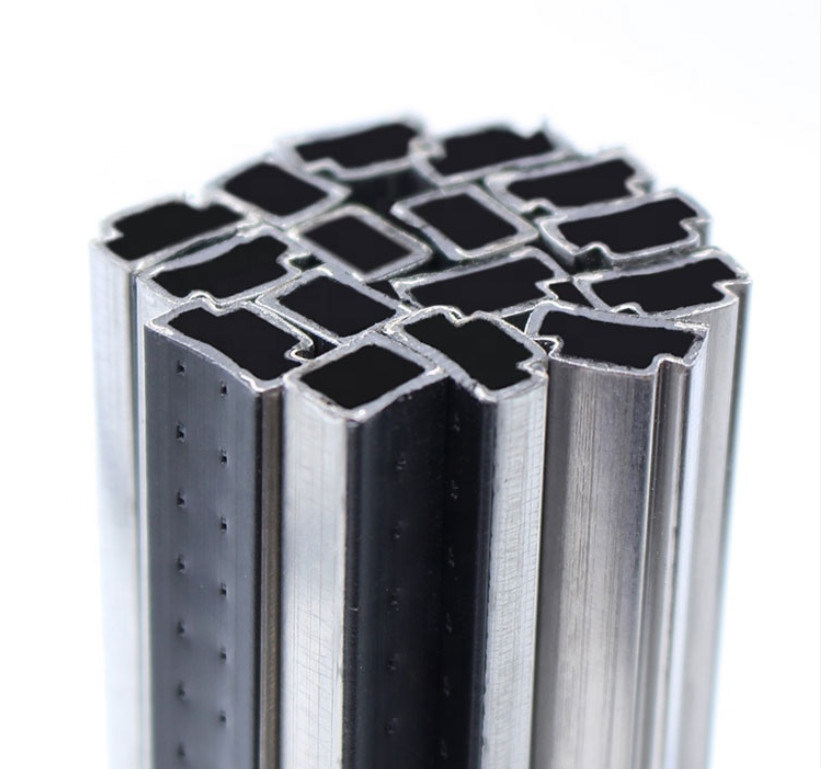

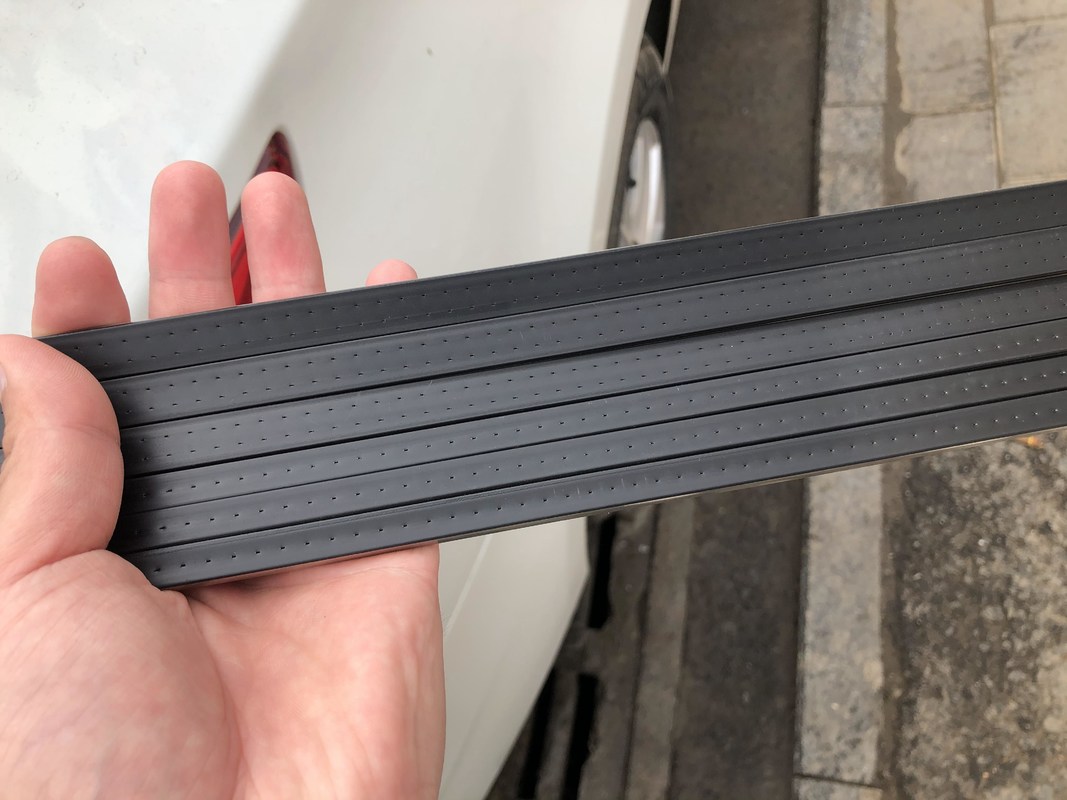

Three Kinds : All stainless , Stainless+glassfiber , All glassfiber
The color and thickness is varities and it can be customized .
| Model | Thickness(mm) | Length(m) |
AmountPer box(m) |
Package dimensions(m) |
| 9A | 0.2-0.35 | 5M | 1100 | 5×0.16×0.11 |
| 12A | 0.2-0.35 | 5M | 880 | 5×0.16×0.11 |
| 14A | 0.2-0.35 | 5M | 770 | 5×0.16×0.11 |
| 15A | 0.2-0.35 | 5M | 660 | 5×0.16×0.11 |
| 19A | 0.2-0.35 | 5M | 550 | 5×0.16×0.11 |
| 20A | 0.2-0.35 | 5M | 490 | 5×0.16×0.11 |
| 22A | 0.2-0.35 | 5M | 450 | 5×0.16×0.11 |
| 24A | 0.2-0.35 | 5M | 400 | 5×0.16×0.11 |
| 27A | 0.2-0.35 | 5M | 350 | 5×0.16×0.11 |

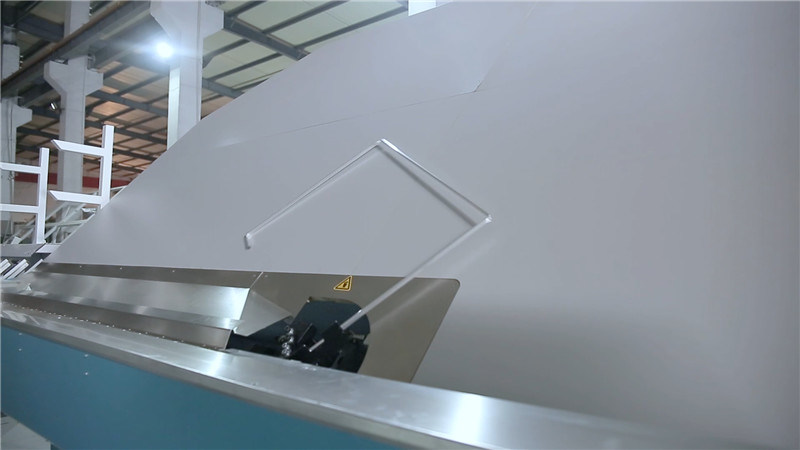

Automatic spacer bending machine LJZW2020
Application
Automatic spacer bending machine is a special equipment for making aluminum frames of insulating glass, which replaces the traditional fabrication technology. This equipment can make a variety of convex polygonal aluminum frames by one aluminum strip in one time, thus strengthening the strength of the aluminum frame, making the sealing effect of the insulating glass more better.
Technical data
| Max.bending size | 2000mm*2000mm (2500mm*2500mm) |
| Min.bending size | 250mm*200mm |
| Aluminum spacer width | 5.5-27mm |
| Dimensional error | ±0.5mm |
| Angle error | ±1º |
| Processing speed | ≤26s |
| Air supply | ≥0.65MPa |
| Total power | AC220/380V 50Hz 2.5KW |
| Dimension | 10500mm*2200mm*2600mm |
Electrical parameters
| NAME | BRAND | NAME | BRAND |
| PLC | GERMAN SIEMENS | Triplet | Taiwan AIRTAC |
| Low voltage electrical apparatus | GERMAN SIEMENS | Cylinder | Taiwan AIRTAC |
| Servo motor | GERMAN SIEMENS | Solenoid valve | Taiwan AIRTAC |
| Servo driver | GERMAN SIEMENS | Switch power | Taiwan TEND |
| Relay | JAPAN OMRON | TOUCH SCREEN | Taiwan WEINVIEW |
| Sensor | KOREA AUTONICS | GUIDE | Taiwan TBI |
As professinal Insulating glass machine manufacture in China,except material such as Moleculaer sieve and aluminum spacer and sealant . We are good at develping and producing automatic vertical insulaing glass processing production line ,vertical low-e glass egde deleting machine,automatice robot insulaiting glass production line and so on.
