Product Details:
|
| Brand Name: | Insulating Glass Processing Line With Gas Filling | Brand: | LIJIANG GLASS |
|---|---|---|---|
| Max Glass Size: | 2500 Mm*3500 Mm | Max Glass Size For Filling Gas: | 2500 Mm*3200 Mm |
| Glass Thickness: | 3 - 15 Mm ( 3 - 30 Mm ) | IG Thickness: | 60 Mm |
| Material: | Stainless Steel | Gas Value: | > 95% |
| Warranty: | 1 Year | Length: | 23.5 Meters |
| High Light: | Air Floating Insulating Glass Production Line,Vertical Insulating Glass Production Line,Vertical insulated glass manufacturing equipment |
||

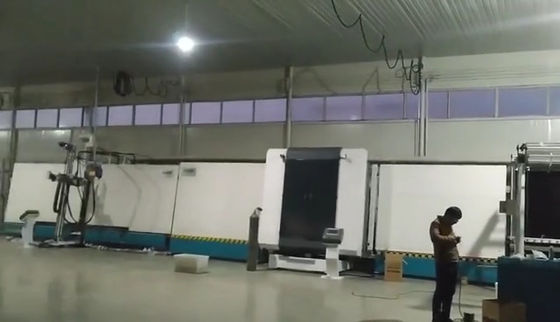

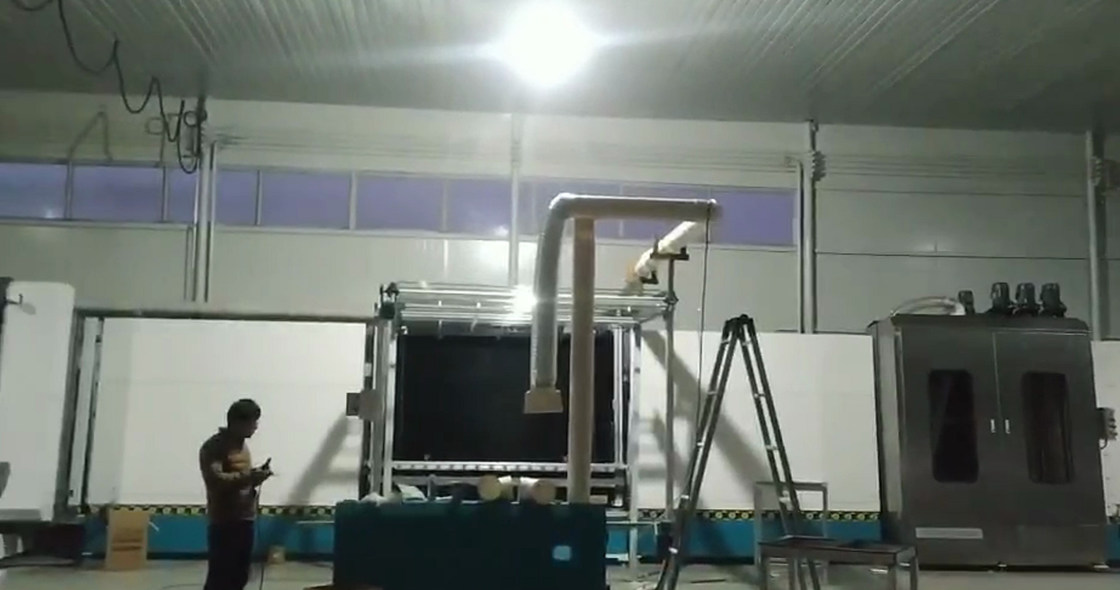

Vertical Insulating Air-Floating Glass Processing Line With Gas Filling Automatically Online
Introduce of vertical insulating air-floating glass processing line with gas filling

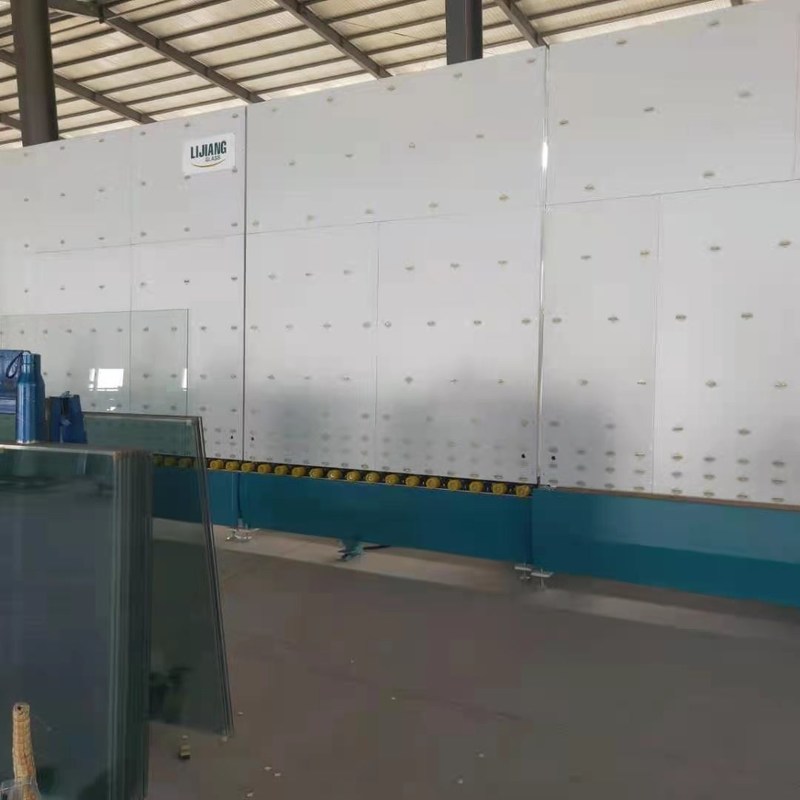

Using Air-floating technology to transfer glass to prevent the glass from being contaminated by wheels and leaving traces to improve the IG production’s high quality. The line has seven sections:
01 transfer section;
02 washing machine;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.
Optional functions of vertical insulating air-floating glass processing line with gas filling :
• Step glass with optional edges (L:100mm W:50mm)
• Shaped glass
• Pre washing machine
Other sizes of the vertical insulating air-floating glass processing line with gas filling :
| Parameters | Unit | LJBZ2025GF | LJBZ2535GF | LJBZ2535DGF |
| Power supply | 380V 50Hz 3P | |||
| Total power | KW | 41 | 44.5 | 51.5 |
| Washing speed | m/min | 2~10 | ||
| Maximum working speed | m/min | 45 | ||
| Minimum glass size | mm | 450*280 | ||
| Maximum glass size | mm | 2000*2500 2000x3000 (Pressed by twice) |
2500*3200 2500*3500(Pressed by twice) 2500x4500(Pressed by twice, add suckers) |
|
| Flat glass thickness | mm | 3~15(3-30) | ||
| Washing brushes | Pieces | 6 | ||
| Maximum thickness of insulating glass | mm | 60 | ||
| Total gas consumption | L/min | 1200 | ||
| Conveyer roll height | mm | 520 | ||
| Dimension | L*W*H(mm) | 19500*3500*3200 | 23500*3500*3700 | 27000*3500*3700 |
Details of vertical insulating air-floating glass processing line with gas filling :
01 transfer section
Coating detection mechanism, automatic detection of offline Low-e film

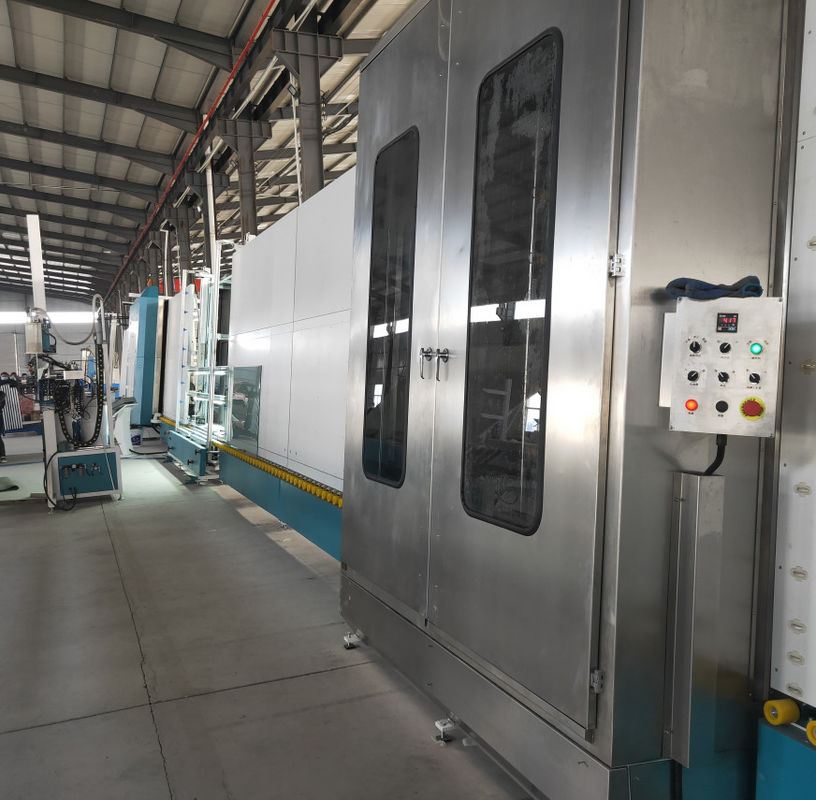

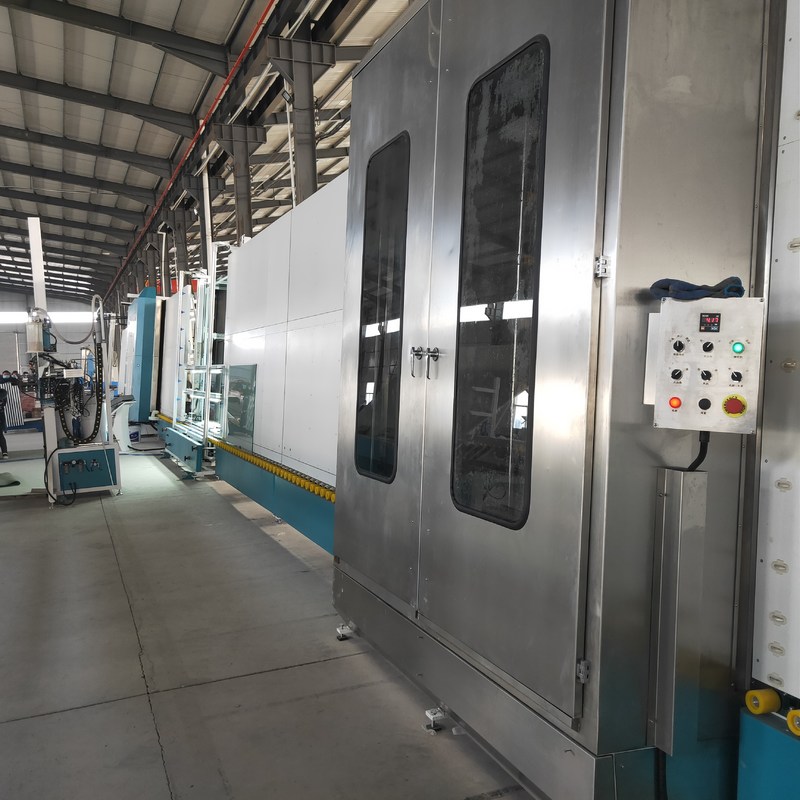

02 washing machine
• Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• Water tank automatic temperature control, water replenishing system
• European silencer system
• Stainless steel material
03 discharge section
• Storage glass
04 inspection and installation section
The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass
05 transfer section
• Automatic measurement of glass thickness. It can be used according to actual needs when working.
06 pressing and filling section
Main feature:
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• The pressing plate can be opened for easy maintenance
• Pressing board with adjustable structure to guarantee long-lasting service life
• Automatically fill argon gas with significant sealing effect, higher argon content
• Set zones to fill different size of glass with follow-up sealing method reduces argon loss
• Can set gas value and show the process of filling gas on the touch screen
• Fast reacting sensor for permanent control of gas filling process
• Gas concentration can reach more than 90%
• No need to drill holes on the spacer frame
• Standard gas is Argon gas
07 discharge section
• Storage glass
• Can be connected to sealing machine
Technical data
| Max. glass size | 2500mm*3500mm |
| Max glass size for filling gas | 2500mm*3200mm |
| Min. glass size | 280mm*450mm |
| Glass thickness | 3-15mm |
| Insulating glass thickness | 60mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 45m/min |
| Washing brushes | 3 pairs of soft brushes |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 1m³/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 380V 50HZ |
| Dimension | 23500*3500*3700mm |
| Weight | 6500kg |
