Product Details:
|
| Machine Name: | Automatic Double Glazing Making Machine | Max Glass Size: | 2500 Mm*3500 Mm |
|---|---|---|---|
| Glass Thickness: | 3 - 15 Mm | Washing Speed: | 2-10m/min |
| Glass Conveyor Speed: | 45m/min | IG Thickness: | 60 Mm |
| Washing Machine Material: | Stainless Steel | Optional Function: | Triple Glass / Step Glass |
| Warranty: | 1 Year | Washing Brushes: | 3Pairs |
| High Light: | 15mm Double Glazing Machine,Insulating Glass Double Glazing Machine,Insulating Glass Manufacturing Equipment |
||
Automatic double glazing making machine Insulating Glass Manufacturing Line double glass equipment
Now LIJIANG GLASS mainly has two kinds of IG line with different two different technologies. One uses transfer wheels to transport glass, and the other is a new technology that uses air-floating technology to transport glass. This new technology is to prevent the glass from being contaminated by wheels and leaving traces, so new technology is used to improve the IG production’s high quality.
Functions :
double glazing glass
triple glazing glass
four sides step glazing glass
Automatic Insulating Glass Production Line series
| Unit | LJBZ2025 | LJBZ2025G | LJBZ2535 | LJBZ2535G | LJBZ2535DG | LJBZ2535GS | |
| Power supply | 380V50Hz | ||||||
| Total power | KW | 39.5 | 36 | 41 | 39.5 | 44 | 40 |
| Washing speed | m/min | 2~10 | |||||
| Maximum working speed | m/min | 45 | |||||
| Minimum glass size | mm | 450*280 | |||||
| Maximum glass size | mm | 2000*2500 2000x3000(Secondary pressure plate) |
2500*3200 2500*3500(Secondary pressure plate) 2500x4500(Secondary plate pressing and auxiliary sucker mechanism) |
2500*3500 | |||
| Flat glass thickness | mm | 3~15(3-30) | |||||
| Washing brushes | Pieces | 6 | |||||
| Maximum thickness of insulating glass | mm | 60 | |||||
| Total gas consumption | L/min | 1200 | 1200 | ||||
| Conveyer roll height | mm | 520 | |||||
| Dimension | L*W*H (mm) |
19500*3500*3200 | 23500*3500*3700 | 27000*3500*3700 | 23800*3200*3700 | ||
Automatic insulating glass production line LJBZ2025 is not include gas filling function,can make max glass size 2000*2500
Automatic insulating glass production line LJBZ2025G is include gas filling function.
Automatic insulating glass production line LJBZ2535 is not include gas filling function,can make max glass size 2500*3200
Automatic insulating glass production line LJBZ2535 is include gas filling function,can make max glass size 2500*3200
Automatic insulating glass production line LJBZ2535DG can filling argon gas two pieces at one time,can make max glass size 2500*3200
Main Features of IG Line:
• Adopt SIEMENS control system, keep stable performance
• PLC control system, touch screen interface
• Using servo to control system, modular function, superposition function
• Automatically adjust the depth of glue with digital display
• Applicable to produce stepped IG, triple IG and shaped IG
• Min & Max glass sizes can be optional
• Two pieces of IGU can be made and filled with argon gas in one time (Optional)
• Automatic Vertical Insulating Glass Processing Line has 7 sections:
01 transfer section;
02 washing section;
03 discharge section;
04 inspection and installation section;
05 transfer section;
06 pressing and filling section;
07 discharge section.

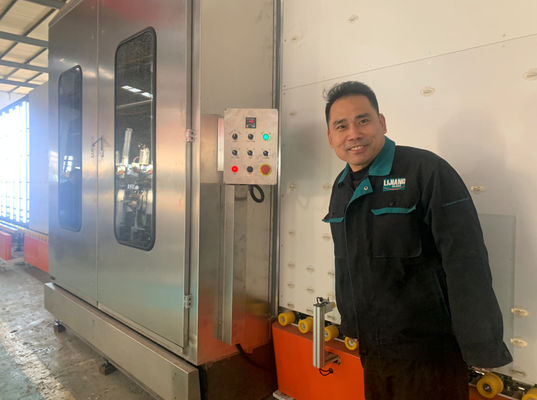

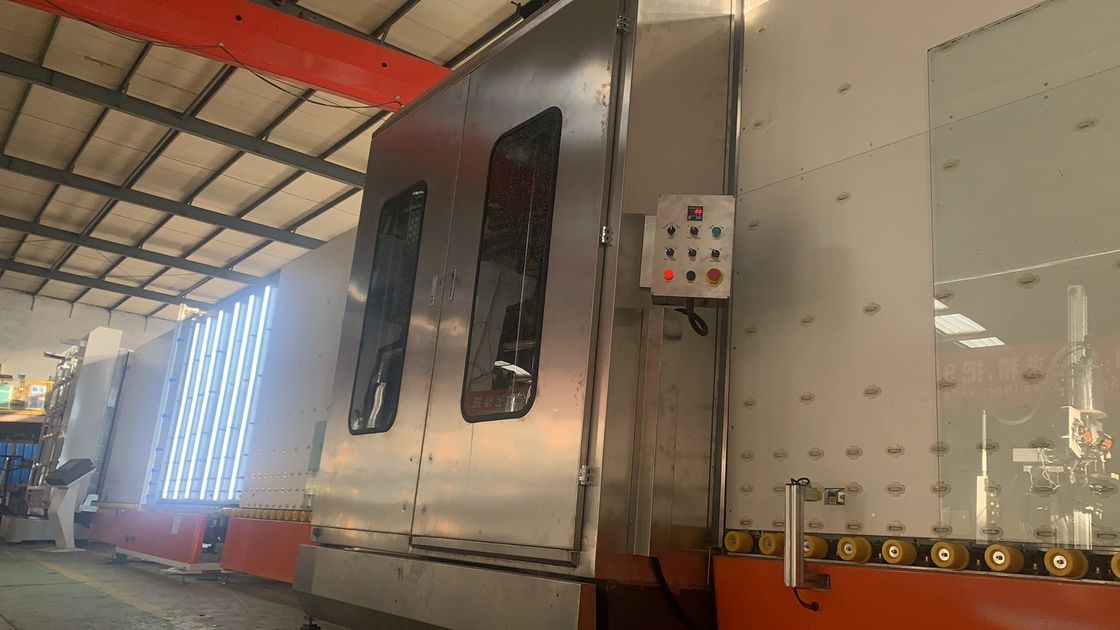

Washing section features:
• Using 3 pairs of soft brushes with 0.1mm soft hair, can wash low-e glass
• The air knife can automatically adjust the width of the air knife according to the thickness
• The operation box with washing speed display, can accurately display washing speed (8-10m)
• European silencer system
• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.
• Stainless steel material
• Water tank automatic temperature control, water replenishing system
• Pre-washing (Optional)
Pressing section features:
• Pressing board with adjustable structure to guarantee long-lasting service life
• Adopts conveyor belt to transfer glass, uses servo motor to press glass
• Ultra-long (2500mm*3500mm) insulating glass can be compressed twice
• The pressing plate can be opened for easy maintenance
Filling argon gas automatically
• Automatically filling argon gas inside the pressing plate with precise gas concentration
• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length), 280mm (high)
• Automatically set gas data and display data on the screen
• No need to drill holes in spacer frame
• Standard gas is Argon gas
• Fast reacting sensor for permanent control of gas filling process
Special technology of IG Line :
Making two pieces of IG units in once time
Shaped glazing glass
Low-e film glazing glass
Filling argon gas online
Air floating insulating glass line
LIJIANG Glass Main products :
IG line series;
Butyl extruder machine series;
Low-e film edge deletion machine;
Molecular sieve filling machine;
Sealing robot series;
Spacer bending machine series;
Auxiliary insulating glass machines.
About 20 products are widely used in customized insulating glass industry, windows and doors, building curtain wall, industrial aluminum alloy, high-speed rail, elevator and advertising industry.
Related product
Automatic Desiccant Filling Machine LJGZ 2020A
Main feature of molecular sieve filling machine
• Germany Siemens PLC control system
• Touching screen interface, simple and visible
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• The height can be adjusted according to the size of spacer frame
• Automatically loading and replenish desiccant
• Adopt vacuum pump loading device ,increase the loading speed
• Using big plastic barrel, save feeding time and improve efficiency
• Protection device for machine head
• Arc frame (optional)
• Fill large particle molecular sieve (Optional)
Technical data of desiccant filling machine
| Max frame size | 2000mm*2000nn (2500mm*2500mm) |
| Min frame size | 300mm*250mm |
| Aluminum specifications | 6A - 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.5KW |
| Molecular sieve diameter needed | 0.5-0.8mm |
| Dimension | 1650mm*1100mm*3600mm |
Molecular sieve filling machine LJFGJ 03
Main feature
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
