Product Details:
|
| Machine Name: | Automatic Desiccant Filling Machine | Max. Frame Size: | 2000mm * 2000mm |
|---|---|---|---|
| Min.. Frame Size: | 300mm*250mm | Aluminum Specification: | 5.5 - 26.5 Mm |
| Power: | 1 Kw | Molecular Sieve: | 0.9 - 1.5 Mm (Optional) |
| Filing Heads: | Double Filling Heads | Brand: | LIJIANG GLASS |
| Warranty: | 1 Year | ||
| High Light: | Two Heads Automatic Desiccant Filling Machine,Frame Auxiliary Automatic Desiccant Filling Machine,Two Heads butyl extruder machine |
||

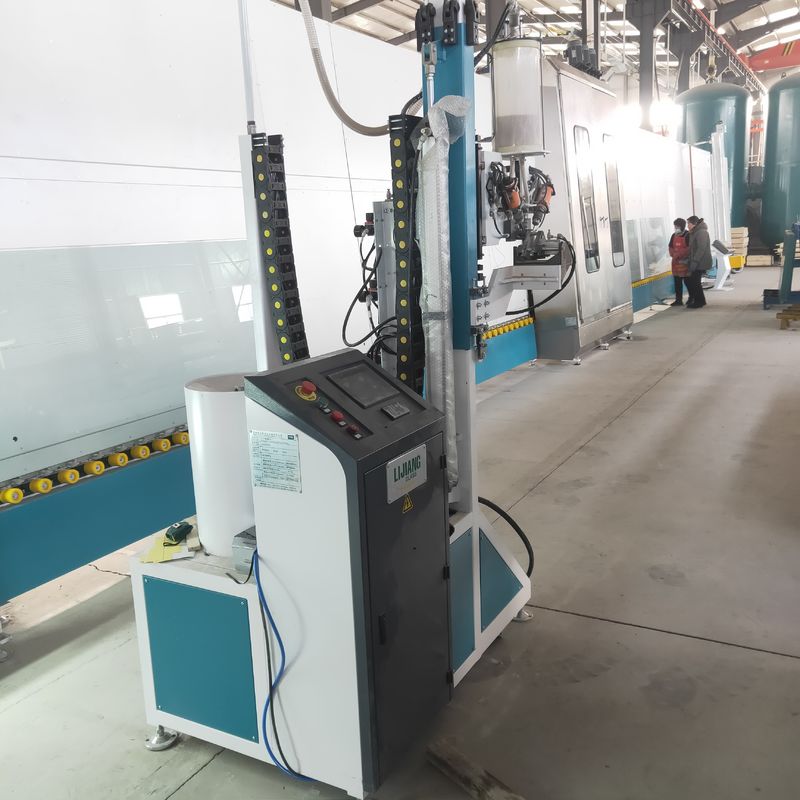

New Double Filling Heads Automatic Desiccant Filling Machine With Large Frame Auxiliary Function
Introduce of Automatic Desiccant Filling Machine
Automatic desiccant filling machine is one of the auxiliary machine for making insulated glass. The old type of desiccant filling machine has one filling head. However, the new desiccant filling machine can fill the spacer frame with two heads, which can two spacer different spacer frame together.
Main feature of Automatic Desiccant Filling Machine :
• Adopt Siemens PLC control system
• Molecular sieve can be 0.5 – 0.9mm or 1.0 – 1.5mm sizes
• Touch screen interface, simple and visible
• The machine height can be adjusted according to the size of spacer frame
• Automatically loading and replenish molecular sieve
• Double tubes for unloading to increase filling speed
• Filling time can be adjusted
• Automatically drilling, filling and sealing
• Core parts are imported brands
• Using big plastic barrel, save feeding time and improve efficiency (Optional)
• Protection device for machine head (Optional)
• Filling arc frame (Optional)
• Fill large particle molecular sieve

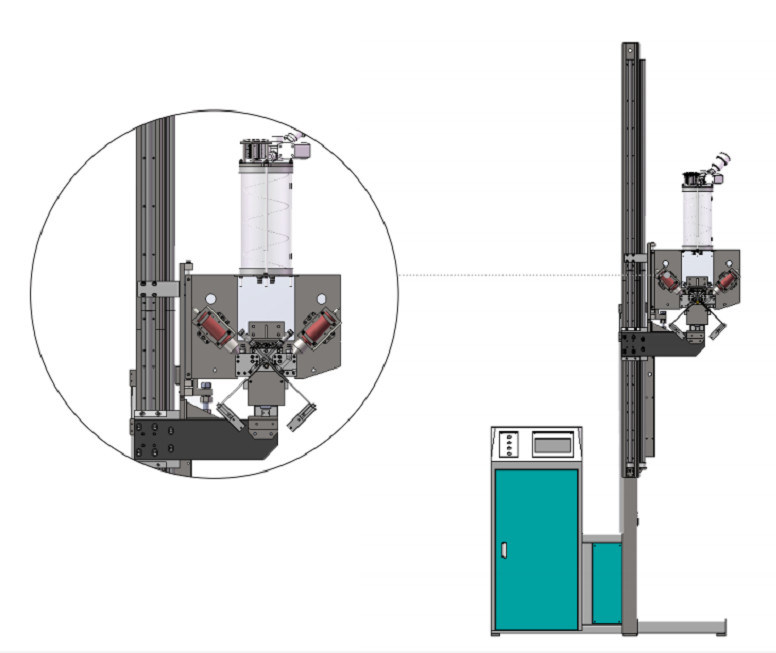

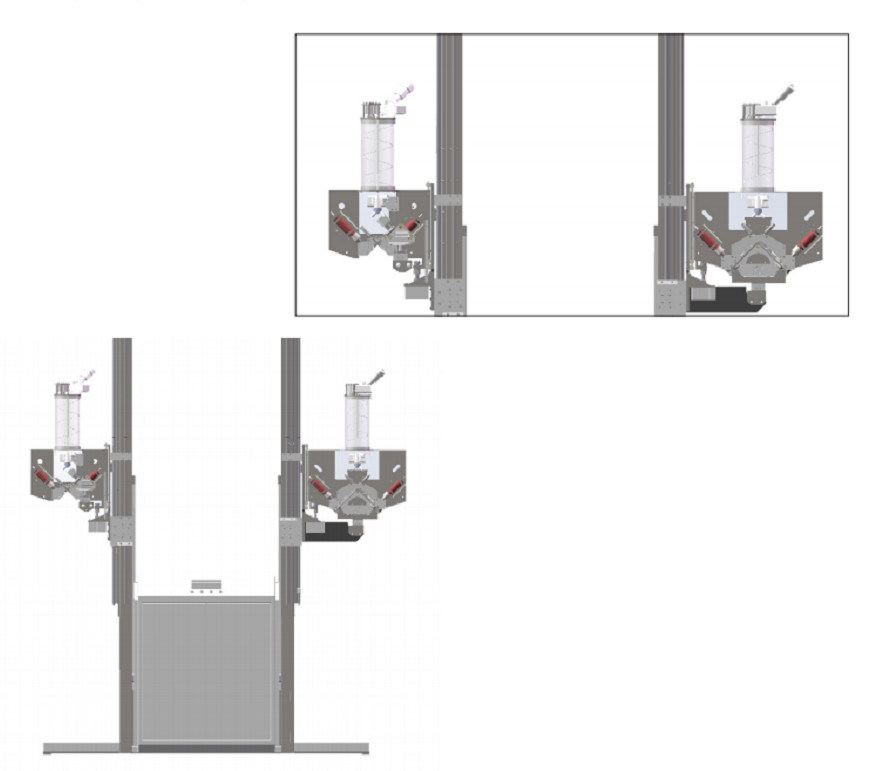

Double filling heads for filling two different spacer frames
Spares of the desiccant filling machine
PLC: Germany Brand Siemens
Low voltage electrical apparatus: Germany Brand Siemens
Sensor:Korea Brand Autonics
Guide:Taiwan Brand TBI
Triplet:Taiwan Brand Airtac
Solenoid valve:Taiwan Brand Airtac
Gas driller:Taiwan Brand
Switch power:Taiwan Brand Tend
Technical data of Automatic Desiccant Filling Machine
| Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
| Min. frame size | 300mm*250mm |
| Aluminum specifications | 6A- 27A |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1KW |
| Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
| Dimension | 1100mm*1100mm*3600mm |
Molecular sieve filling machine LJFGJ 03
Main feature
Technical data
| Power supply | 220V 50Hz |
| Total power | 1kw |
| Dimension | 2490*400*2200mm |
After sale service of the desiccant filling machine
Ⅰ.Warranty : 1 year
Wearing parts and equipment damage caused by customer's reasons are not included in the free warranty.
Ⅱ. LIJIANG has the own system for after sale service, which including three parts.
1. When LIJIANG equipment arrive customer’s factory, LIJIANG can send engineers to customer’s factory for installation, adjustment and personnel train with free commission. However, customers should bear the engineer’s round-trip air tickets and accommodation.
2. During the warranty year, if there is problem with LIJIANG equipment, LIJIANG will provide timely technology support online firstly. However, if engineer has to go to customer’s factory repair machines, the customer should bear the round-trip air tickets and accommodation. Please notes, if there is damaged spare because of LIJIANG, LIJIANG will prepare them in advance (Except wearing parts).
3. Beyond the warranty period, if LIJIANG equipment has problem, LIJIANG will provide timely technology support online firstly. However, if customers request LIJIANG engineer, the customer should bear the engineer’s round-trip air tickets and accommodation, also the customer should pay LIJIANG 150 dollars per day as service commission.
Note: Before LIJIANG engineers go to customer’s factory, the customer should send the air tickets and hotel details in advance. LIJIANG will arrange the engineer's itinerary and maintenance items ASAP.
