Product Details:
|
Production Name: | Glass Edge Polishing Machine | Voltage: | 380V 50Hz 3P |
---|---|---|---|
Dimension(l*w*h): | 9700mm*2500mm*3400mm | Weight: | 2500kg |
Power(w): | 15kw | Warranty: | 1 Year |
Glass Thickness: | 3 - 15mm | Edge Width: | 10 -150mm |
High Light: | W150mm Glass Edge Grinding Machine,15mm Glass Edge Grinding Machine,W150mm Glass Edge Polishing Machine |

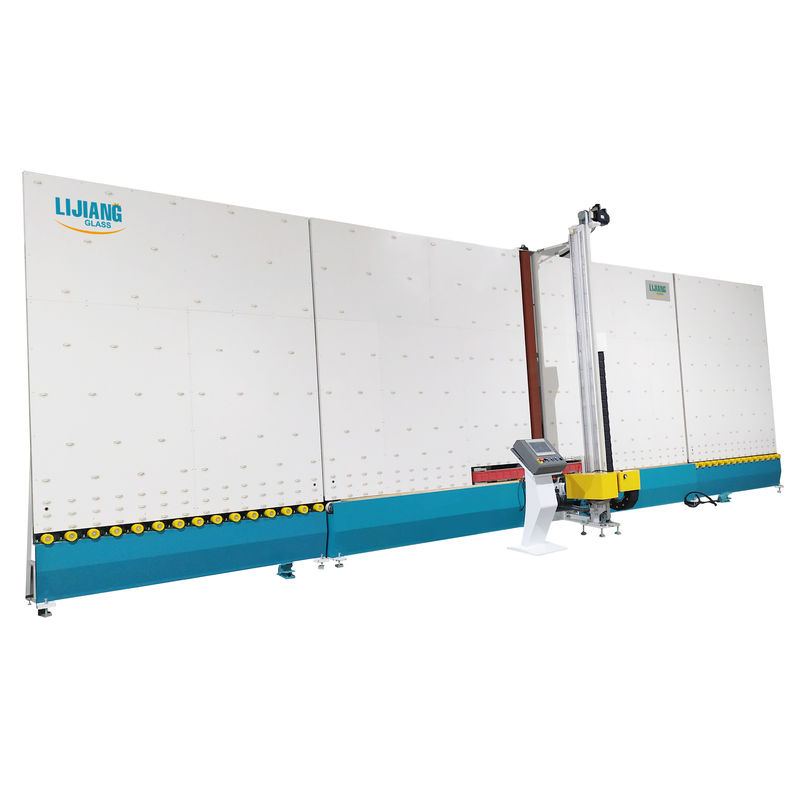

Vertical Full Automatic Low-e Glass Edge Deletion Machine With Deleting Low-e Film
Low-E glass, also known as low-E glass, is a thin-film product composed of multiple layers of metal or other compounds coated on the surface of the glass. The coating has the characteristics of high transmittance to visible light and high reflectivity to mid-and far-infrared rays. Compared with ordinary glass and traditional architectural coated glass, it has an excellent heat insulation effect and good transmittance.
Low-e glass types:
Single silver Low-E glass
Single silver Low-E coated glass usually contains only one functional layer (silver layer). In addition to other metal and compound layers, the total number of coatings reaches 5 layers.
Double silver Low-E glass
Double silver Low-E coated glass has two functional layers (silver layer) and other metal and compound layers, and the total number of coatings reaches 9. However, the process control of dual-silver Low-E glass is very difficult than single-silver.
Main feature:

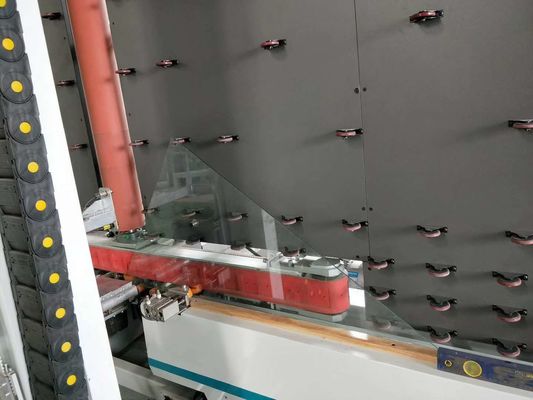

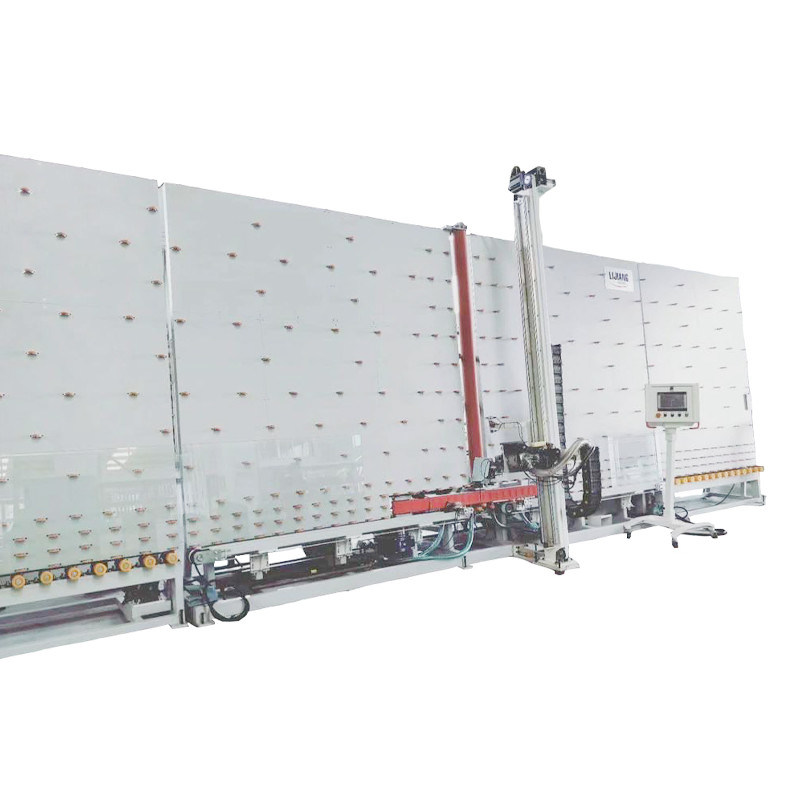

The vertical glass edge remover consists of three parts: the glass loading part, the removing part and the glass unloading part. The delete machine has 4 different directions. Online Low-E and contour Low-E glass.
Specification :
Max. glass processing size | 2500*4500mm |
Min. glass processing size | 400*280mm |
Glass thickness | 3-15mm |
Diameter of grinding wheel | 200mm |
Conveyor height | 500mm |
Edge deleting width | 10-50mm |
Transmission speed | 29m/min |
Edge deleting speed | 2-29m/min |
Abrasive wheel width | 10/12/15mm |
Glass thickness | 3 - 15mm |
Grinding wheel speed | 0~3000r/min |
Total air consumption | 100L/ min |
Air pressure | ≥0.8MPa |
Total power | 3P 380V 50Hz 15KW |
Dimension | Dimensions :9700×2500×3400mm |
Total weight | 3700KG |
Electrical parameters
NAME | ORIGIN | BRAND |
Servo motor | Taiwan | TAIDA |
PLC | Taiwan | TAIDA |
Pneumatic component | Taiwan | AAIRTAC |
Low pressure electricity | Germany | SIEMENS |
Circuit breaker | Germany | SIEMENS |
Sensor switch | Korea | AUTONICS |
Approach switch | Korea | AUTONICS |
Limit switch | Taiwan | TEND |
Connector | Germany | SIEMENS |
Frequency converter | France | SCHNEIDER |
Main Button | France | SCHNEIDER |
Intermediate relay | Japan | OMRON |
