Product Details:
|
| Certification: | CE | Production Name: | Automatic Molecular Sieve Filling Equipment |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Optional: | Big Barrel | Aluminum Specifications: | 5.5-26.5mm |
| Faction: | Aluminum Spacer Drilling,filling And Sealing | Application: | Insulating Glass Processing |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm |
| High Light: | Glazing Desiccant Filling Machine,Double Glass Desiccant Filling Machine,Glazing Desiccant automated filling machine |
||

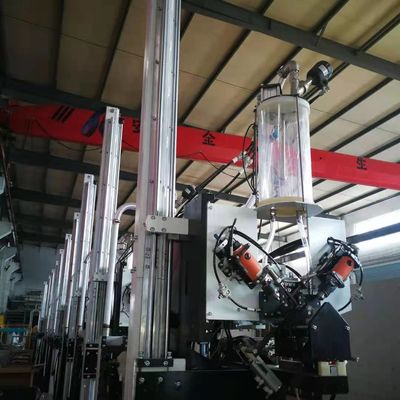

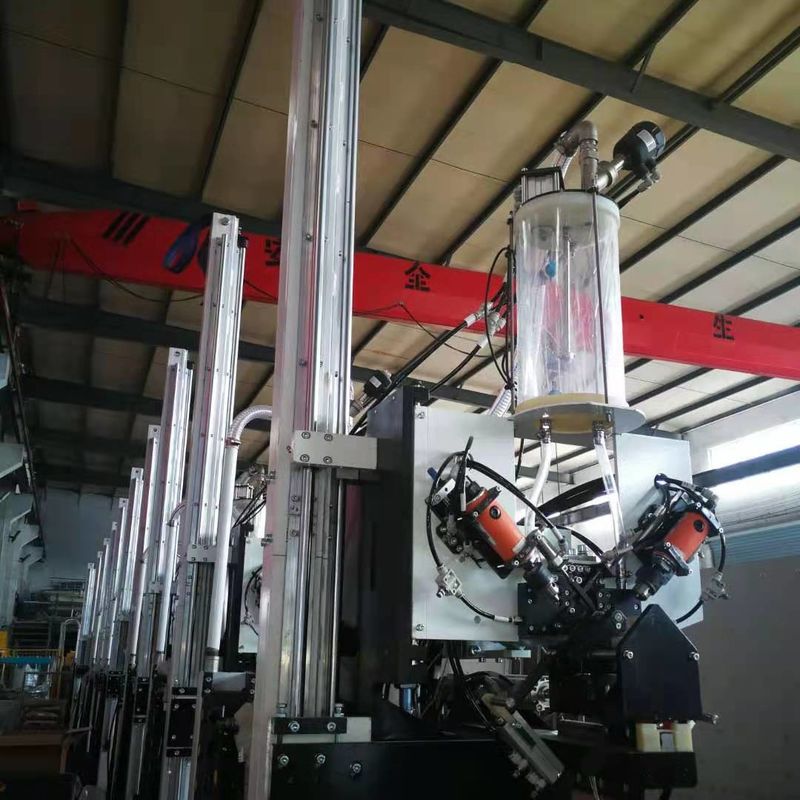

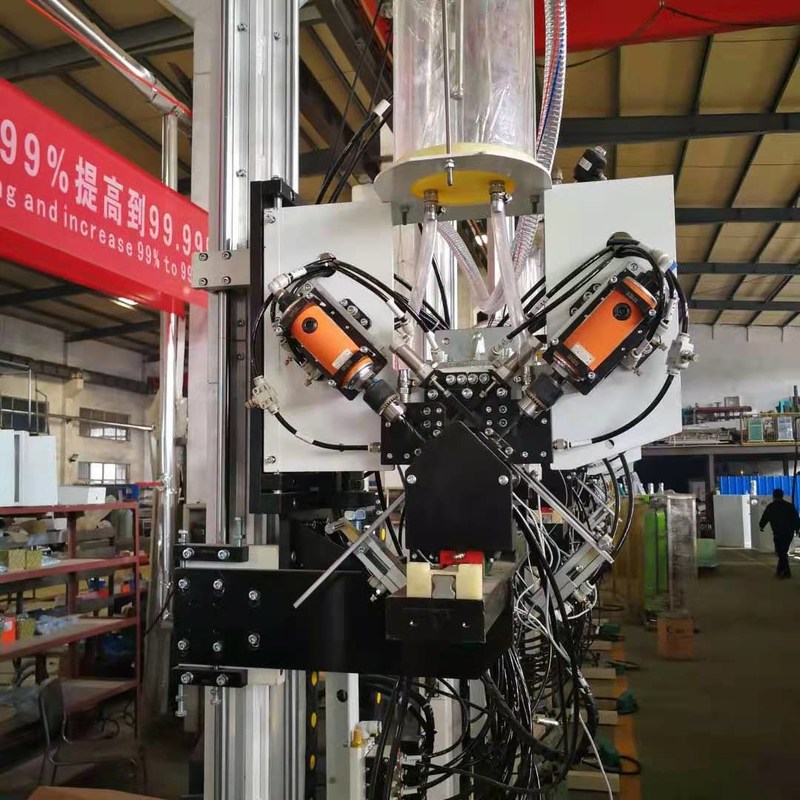

Automatic Glazing Desiccant Filling Machine Adopt Siemens PLC servo control system with stable performance,Molecular sieve can Automatically measure glass size, glue depth and glue speed with linear adjustment, coating glass with silicone,glass corners are full without air bubbles, smooth surface.
Technical parameter of Automatic AluminumDesiccant filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |
| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Main Features of Automatic Desiccant Filling Machine
•Touch screen interface, simple operating
•Automatic desiccant filling machine adopt Siemens PLC control system
Product introduction of Insulating glass Molecular Sieve Filling Machine
1.Molecular sieve filling machine have Protection device for machine head,safely operating.
2.Electrical component are all Germany Brand-Siemens.
•Desiccant filling machine Adopt Siemens PLC control system automatic desiccant filling machine
3.Desiccant filling machine height can be adjusted according to the size of spacer frame,very convenient.
4.Molecular sieve automatically loading from the Materials bucket.
5.Auto drilling, filling and sealing function,Molecular sieve can be 0.5 -0.9mm or 1.0 -1.5mm sizes
6.All the electrical wires have the ID number,it can match with specification , So it will be very easy for the further communication in the after sales service .
7.Easy and safe for adding glue
Related products
Sealant-spreading Machine LJST02A
Main feature
• Imported motor system to improve equipment efficiency
• Imported sealant gun,stainless steel mixer
• High pressure protect device
• Anti-back flow control structure
• Mixed rate detector can control the rate of two kinds of glue
Technical data
| Working air pressure | 0.3-0.6MPa |
| Sealant spreading pressure | 15-20MPa |
| Sealant volume | 4L/min |
| Diameter of A/B sealant | 570mm/280mm |
| Sealant spreading air pressure ratio | 50:1 |
| Mixed rate | 6:1-14:1 |
| Air supply | Flow 0.8m3/min |
| Air pressure | ≥0.8MPa |
| Overall dimension | 1100*950*1630mm |
Manual Gas Filling Machine LJCJ02N
Main feature
• It is used for filling Argon into insulating glass
• High effectively, allowed for four pieces of IGU
• When the gas is full,it will alarm and stop automatically
• Can set and display the data of gas value
Technical data
| Power supply | 220V 50Hz |
| Total power | 0.1kw |
| Dimension | 620*439*700mm |
