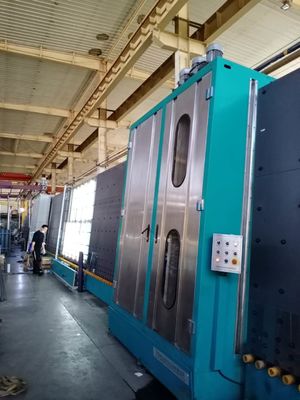

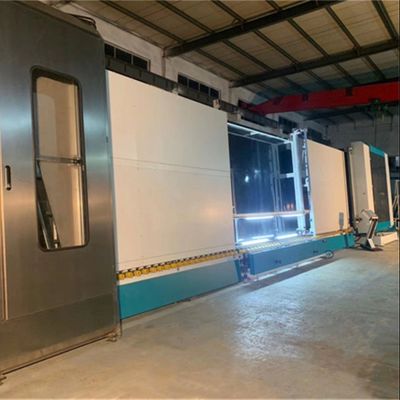

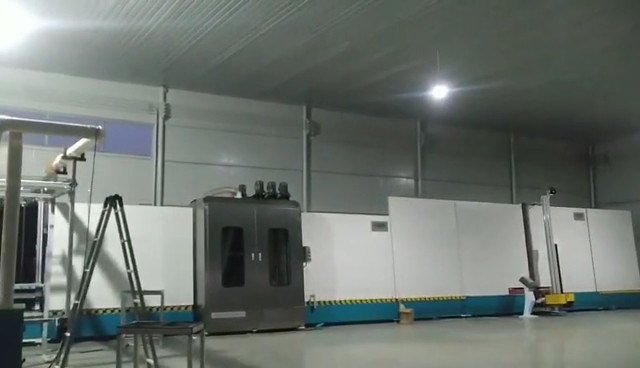

6m/min Vertical Glass Washing Machine Insulating Glass Production Line Double Glazing

 WASHING MACHINE PRODUCTION LINE VERTICAL GLASS WASHING MACHINE INSULATING GLASS MACHINE

double glazing glass machine

1. The frame of the whole machine adopts international pipelines, and the thickness of the tube shell is above 3mm. In order to eliminate the welding effect, we also need to age the stamped parts to prevent deformation after use or assembly.

The error of the finished glass should be within 0.2mm within 1 square, and the whole piece of glass (2.5 * 3.5) should be within 0.5mm

2. In the cleaning part, the thickness of stainless steel is 3mm.

3. The brush is always broken due to water seepage. In order to prevent the bearing at the bottom of the brush from breaking, we use a very famous stainless steel bearing, which is the best brand in China (Harbin Bearing).

4. We use Omron brand for component PLC and Schneider brand for low voltage electrical appliances.

5. In order to locate the aluminum gasket, we adopted a new structure that can adjust the depth of the glue, and also has a data display function.

6. We can produce stepped glass and triple-layered glass. For stepped glass, we use servo motors.

The upper and lower left and right glass are controlled by servo motors.

7. The overall size can be controlled at 2580, with a large number of foldable parts. This is convenient for packaging and transportation, and because of its large volume, it reduces transportation costs and costs. Both ocean and inland transportation exist.

In the last part 8, we use the flip table to help customers process large frame glass. For large glass, we should put it down for transportation. The driving wheel of the turning table adopts a balance weight, which reduces the transmission resistance of the glass and prevents marks on the glass. glass.

9. All hydraulic station valves adopt Yuyan brand. (Best in China)

10. Pay attention to the entire connection between the photoelectric (OTTO KNICKS) and the sensor switch (OMRON), and a reliable protective cover.
The wiring is beautiful and generous, and the protection is reasonable.

Main Parameter

ITEM	NAME OF PRODUCTS	PICTURE	TYPE
1	Vertical Insulated Glass Produce Line		LJBZ1825PF
			LJBZ2025PC
			LJBZ2230PC
			LJBZ2535PC
			LJBZ2700
2	Auto Sealing Robot		LJTJ2025
			LJTJ2025D
			LJTJ2530
			LJTJ2530D
3	Sealant Spreading Machine		LJST02A
			LJST02
4	Low-E Glass Washing &Drying Machine
5	Smart Edge Deleting Machine		LJDM20
			LJDM25
6	Automatic Spacer Bending Machine		LJZW2020
			LJZW2020A
7	Automatic Desiccant Filling Machine		LJGZ2020
			LJGZ2020A
9	Butyl Extruder Machine		LJTB01B
			LJTB03
			LJTB01
11	Edge grinding Machine		LJMB95
12	Spacer Cutting Machine		LJQJ02
13	Freezer		LJLX01
14	Rotated Sealant Spreading Table		LJZT03
15	Gas Filling Machine		LJCJ02
16	Semi-auto Aluminum Frame Transfer Machine		LJSJ02
17	Molecular Sieve Filling Machine		LJGJ03
18	Lifting Table		LJ2510P-09
19	Glass unloading Device		LJXP-250-2
20	Water Treatment System(Economy)		DPS
21	Water Treatment System(Advanced)
22	Auto Seaming Machine		LJWM3625
