Product Details:
|
| Name: | Automatic Glass Unloading Machine | Max Weight: | Customeized |
|---|---|---|---|
| Power: | 380V 50Hz 3P ( Optional) | PLC: | SIEMENS |
| High Light: | 800kg Gantry Automatic Unloading Machine,Insulating Glass Gantry Automatic Unloading Machine,800kg automatic loading and unloading machine |
||
Automatic Gantry unloading machine for insulating glass machin can reach to 800kg

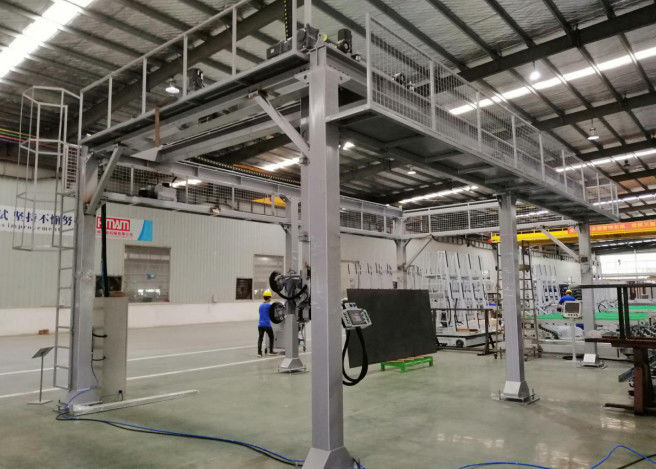

LJAXP4025 Gantry unloading system for insulating glass processing line
I. Main technical target
1. Max glass size: 4000x2500mm
Min glass size:1200*1000mm
Total suction cups , single side: Diameter 250mm; 8pcs
2.Color: To be confirmed.
3. Power supply: 380V 50HZ, 3 Phase—TO BE CONFIRMED
4. Compressed air supply: 5—7bar, 30L / min;
5. Installed power:≈10kw
II. Technical performance:
1. All main frames of equipment use quality rectangle steel pipe groups of national standard welded and fitted with bolt.
2.Program control uses imported SIMENS programmable controller, fitted with touch panel.
3.The machine was designed with concise appearance and conforms to the modern factory with safe signs, and reference to the Euro IEC standard from design until manufacture and installation.
4.Adopts full-closed loop control system for precisely positioning for the machine and stable running.
5.All-digital control with precise positioning and speedy flexibility; All speed can be adjustable according to production line speed.

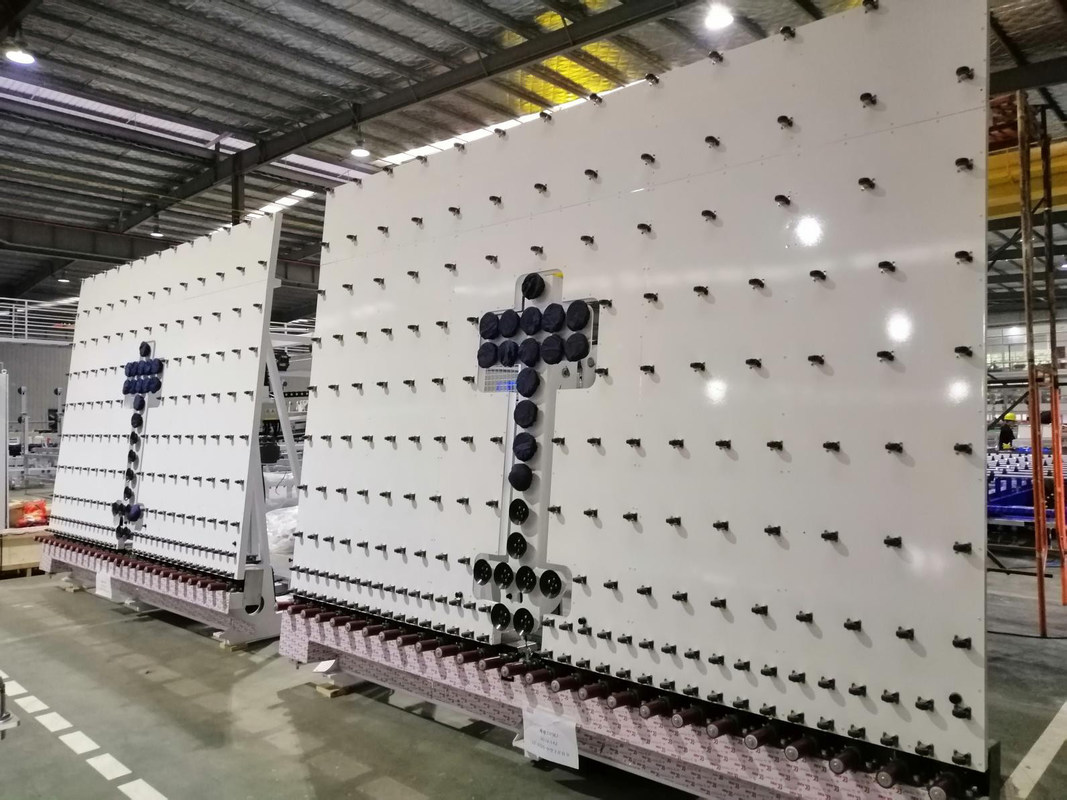

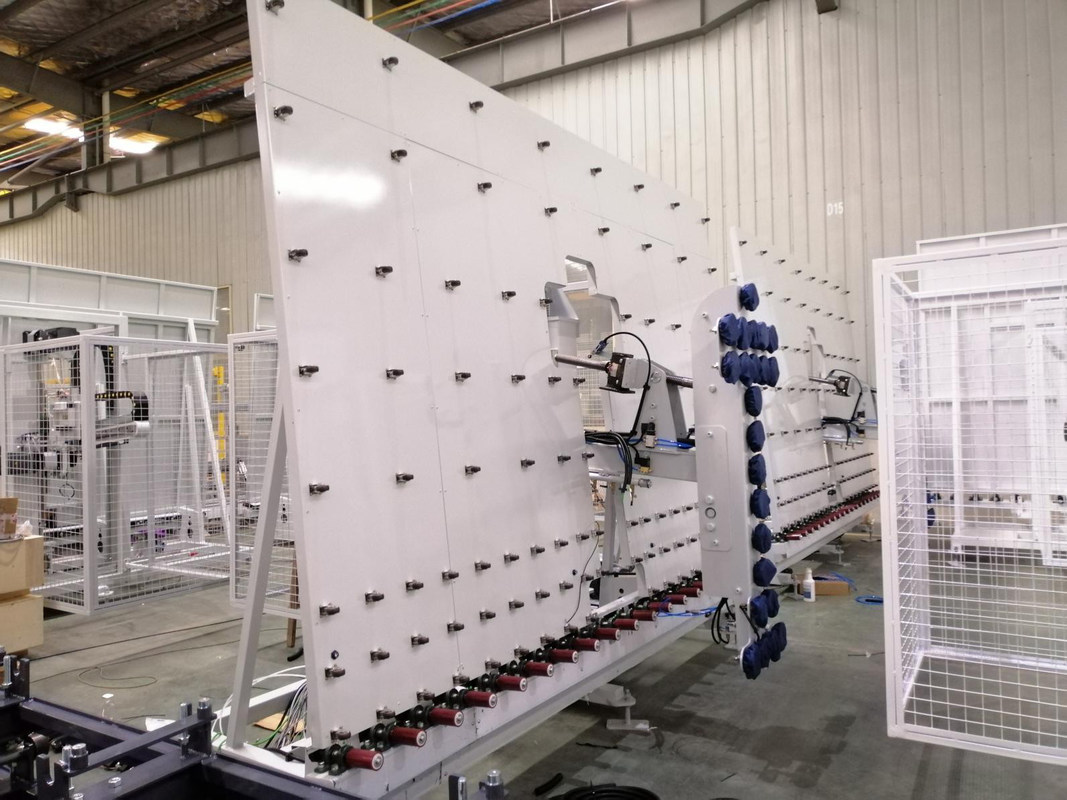

6.The X and Y Axis movement and lifting up & down function of for the suction cup lifter will be controlled by the Servo motor .The suction cup system can lift up and down, move forwards and backwards, move left to right, can rotate 90 degree.
7.The gantry crane works with vacuum suction cup lifter and it can handle Max weight 1000KG including glass weight and the suction cup lifter weight.
8.Unloading cycle time: ≤60S. This is not including the time that operator inspecting the glass ect.
List of table electrical parts
| Object/Part No | Brand | Model |
| Frequencyconverter | Allen Bradley | PowerFlex525 25B-D010 |
| Touch Panel | MCGS | TPC7062/1061 |
| PLC | SIEMENS | UL standard |
| PLC | SIEMENS | UL standard |
| position switch |
Schneider Sick |
XCE-102 |
| position switch |
Schneider Sick |
XCE-145 |
| Photoelectric switch |
Schneider Sick |
XUB5ANAL2 |
| Proximity switch |
Schneider Sick |
/ |
| Middle relay | Honeywell | RU2N-AC/DC24V |
| Vacuum pump | Joysun | X-040 |
| Motor circuit breaker | Schneider | GV2ME-08C/10C/12C |
| AC contactor | Schneider | LC1D09B7C |
| Transformer | Schneider | Schneider |
| Servo Motor | SIEMENS | |
| Decelerator | QIANGZHU |
