Product Details:
|
| Certification: | CE | Production Name: | Automatic Glass Molecular Sieve Filling Machine |
|---|---|---|---|
| Filling Aluminum Frame's Maximum Size: | 2000mm*2000mm | Filling Aluminum Frame's Minimal Size: | 300mm*250mm |
| Aluminum Specifications: | 6-27A | Faction: | Automatically Drilling,filling And Sealing |
| Application: | Insulating Glass Making | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Molecular Sieve Diameter Needed: | 0.5- 0.9 Mm | Optional: | Big Barrel |
| High Light: | Servo Molecular Sieve Filling Machine,PLC Molecular Sieve Filling Machine,Insulating Glass Molecular Sieve Filling Machine |
||

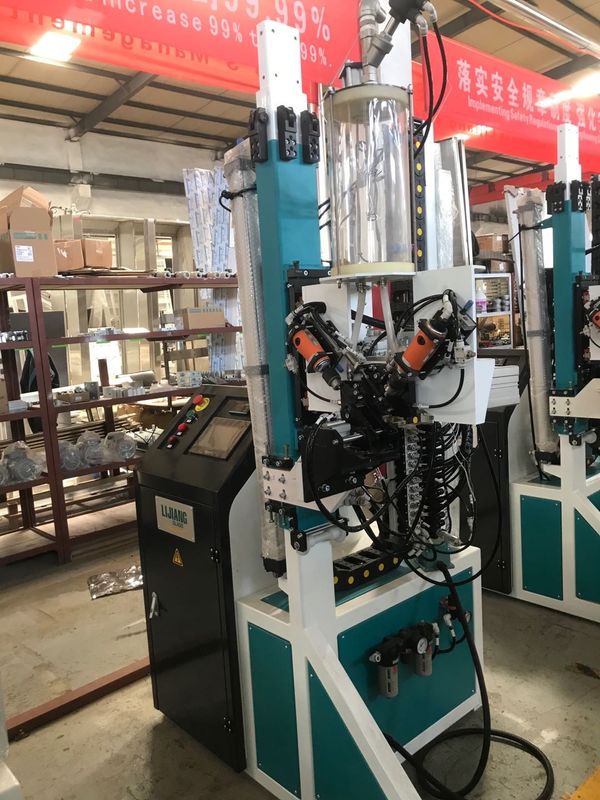

Automatic Molecular Sieve Filling Machine Adopt Siemens PLC servo control system with stable performance,it can Automatically measure glass size, glue depth and glue speed with linear adjustment, coating glass with silicone,glass corners are full without air bubbles, smooth surface.
Features of Automatic Molecular Sieve Filling Machine
•Adopt Siemens PLC control system automatic desiccant filling machine
Product overview of Double Glass Molecular Sieve Filling Machine
1.Auto drilling, filling and sealing function,Molecular sieve can be 0.5 -0.9mm or 1.0 -1.5mm sizes
2.Electrical component are all Germany Brand-Siemens.
•Adopt Siemens PLC control system automatic desiccant filling machine
3.Desiccant filling machine height can be adjusted according to the size of spacer frame
4.Desiccant automatically loading from the Materials bucket.
5.Molecular sieve filling machine have Protection device for machine head.
6.All the electrical wires have the ID number,it can match with specification , So it will be very easy for the further communication in the after sales service .
Technical parameter of Automatic Desiccant filling machine
| Filling aluminum frame’s maximum size | 2500mm*2500mm |
| Filling aluminum frame’s minimal size | 300mm*250mm |
| Article aluminum specifications | 5.5-24mm |
| Air source | ≥0.65MPa |
| Power supply and power consumption | AC220V 50Hz 1.8KW |

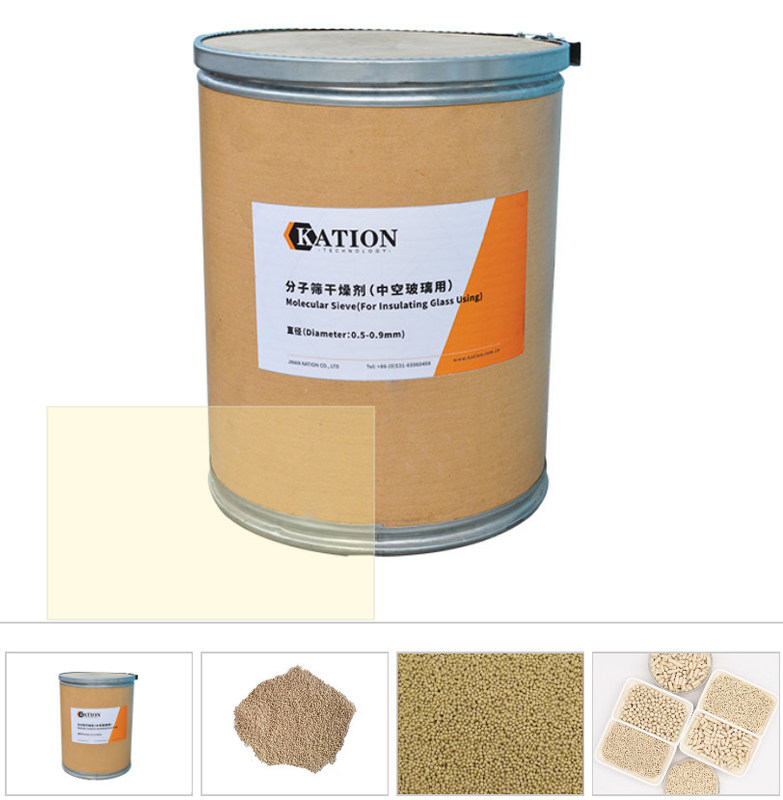

| Molecular sieve diameter needed | 0.5-0.9mm |
| Dimension | 1300mm*1100mm*3650mm |
Related products
Vertical glass washing machine
Technical data
| Max.glass size(Optional) | 2500*3500mm |
| Min.glass size | 280*450mm |
| Glass thickness | 3-15mm |
| Glass washing speed | 2-10m/min |
| Glass conveyor speed | 15m/min |
| Washing brushes | 3 pairs |
| Water supply | Water consumption:0.5t/h conductivity:40μs/cm |
| Air supply | Flow: 0.8m/min |
| Air pressure | ≥0.8MPa |
| Total power | 3P 31KW |
Electrical parameters
| NAME | ORIGIN | BRAND |
| PLC | Germany | SIEMENS |
| Low voltage electrical appliance | Germany | SIEMENS |
| Frequency converter | Germany | SIEMENS |
| Photoelectric switch | Korea | AUTONICS |
| Button and indicator light | France | SCHNEIDER |
| Touch screen | Taiwan | WEINVIEW |
| Intermediate relay | Japan | OMRON |
| Transfer motor | Taiwan | LINHAI |
| Brush motor | China | QINGHUA |
| Water pump | China | LINGXIAO |
| Pneumatic Components | Taiwan | AIRTAC |
1. Materials
The whole washing and drying section adopt 304 stainless steel, including the plate and interior spare parts.
The thickness plate can up to 4mm and the interior plate can be 8mm.The equipment performance is better and service life is much longer.
It has 6 brushes which are all soft brushes, can wash flat glass, temper glass and low-e glass. It has a diameter of less than 0.1mm bristles, never damage glass, especially for low-e glass .
