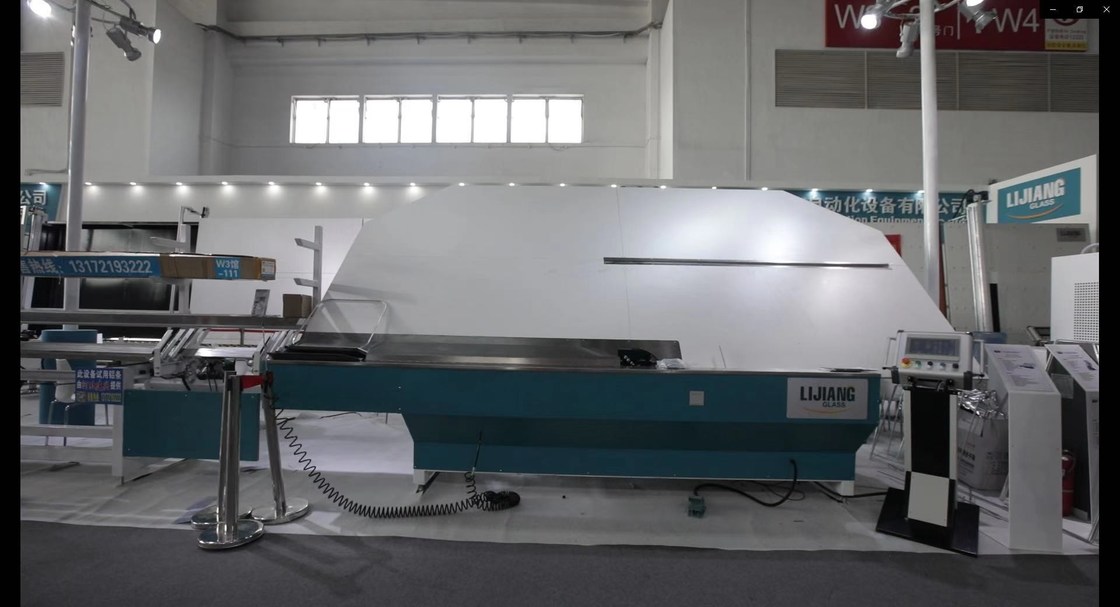

W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine

W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine
W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine

Large Image :  W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine

Product Details:
Place of Origin: JINAN CHINA
Brand Name: LIJIANG GLASS
Certification: CE
Model Number: LJZW2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 23000 - 35000 per set
Packaging Details: 1*20GP container
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: 100 sets per month

W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine

Description
Production Name: Automatic Spacer Bending Machine Spacer Size: 2000*2000
Spacer Width: 5.5 - 27mm Big Frame: Big Table
Warranty: 1 Year Spacer: Aluminum Spacer / Stainless Steel Bar / Warm Spacer
High Light:

W27mm Aluminum Spacer Bending Machine

,

W5.5mm Aluminum Spacer Bending Machine

,

W27mm Insulating Glass Making Machine

Automatic Spacer Bending Machine  - LJZW2020



Technical data of aluminum bending machine

Max. bending size 2000mm*2000mm
Min. bending size 250mm*200mm
Aluminum spacer width 5.5-27mm
Dimensional error ±0.5mm
Angle error ±1º
Processing speed 17s
Air supply ≥0.65MPa
Total power AC220/380V 50Hz 2.5KW
Dimension 10500mm*2200mm*2600mm



Electrical parameters of spacer bending machine

NAME ORIGIN BRAND
PLC Germany SIEMENS
Servo driver Germany SIEMENS
Servo motor Germany SIEMENS
Low voltage component Germany SIEMENS
Triplet Taiwan AIRTAC
Cylinder Taiwan AIRTAC
Relay Japan OMRON
Sensor KOREA AUTONICS
Touch screen Taiwan WEINVIEW
Guide Taiwan TBI
Solenoid valve Taiwan AIRTAC
Switch power Taiwan TEND



Main feature  of automatic spacers bending machine

• Siemens 1200 PLC control system with fast working speed

• 4 groups of storages (2 or 12 groups of storages can be optional)

• Automatically cut and feed aluminum spacers

• Automatically avoid the pins while bending and cutting

• Bend spacer frames continuously



• Aluminum spacers are available in sizes of 6A-27A

• Different bending tools for different sizes of spacers

• Pause and Reset device for handling equipment failures

• Bend aluminum spacer, smooth stainless steel, warm spacer



• Connect to ERP system (Optional)

• USB input function, read the excel format file directly

• Automatically drill holes for filling argon gas (Optional)

• Spacer printing code function (Optional)

• Printing label sticker function (Optional)

• Bending shape frame. Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A). Different sizes of aluminum bars require different size tools(Optional)

W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine 0

Details introduce

• Spacer printing code function (Optional)

• 2 or 12 groups of storages (Optional)

• Printing label sticker function (Optional)

• Bending stainless steel ( Optional)

• Bending warm spacer (Optional)

• Using circle wheel device to bend circle frame or frame with circle corners. Min R60, Max R150, spacer sizes: 6A – 16A (Optional)
W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine 1

W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine 2



Semi-manual Spacer Bending Machine

W5.5mm W27mm Aluminum Spacer Bending Machine Insulating Glass Making Machine 3

Main Features:

1) Semi-manual spacer bending machine without spacer stocks.
2) The machine adopt PLC controller, manual load spacer, automatic bending after calculated the size.
3) Recommend for rectangle frame bending only.
4) The machine feature easy operation and high efficiency.

Parameter:

Max. Bending Size: 2000 x 2000 mm

Min. Bending Size: 300 x 300 mm

Bending angle: 90 degree



Glass Drilling Machine LJDK02



The glass drilling machine is adopted pneumatically grip. Aluminous positioning, drilling is alternatively done by upper and reverse drills, feeding is automatically operated, automatic remove wasted glass. Operation platform can be pneumatically elevated. It combined function of semi-automatically controlled and automatically controlled.

Technical specifications:

1. drill diameter:4~100mm

2. glass thickness:3~19mm

3. total power:2.3kw

4. weight:1000kg

5. Occupation area:2500 x 2000 x 2200mm (L x W x H)

6. Max size of glass: 2000*2000mm

Spare parts with valuable item:

Item

No.

Description Specification On machine Free for spare
1 Set drilling head

Ø10





1 set (2 pcs)
