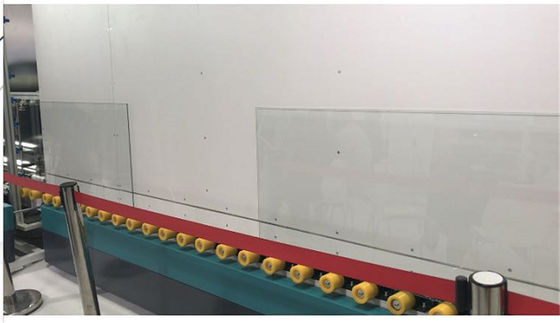

European Silencer System 60mm Insulating Glass Production Line

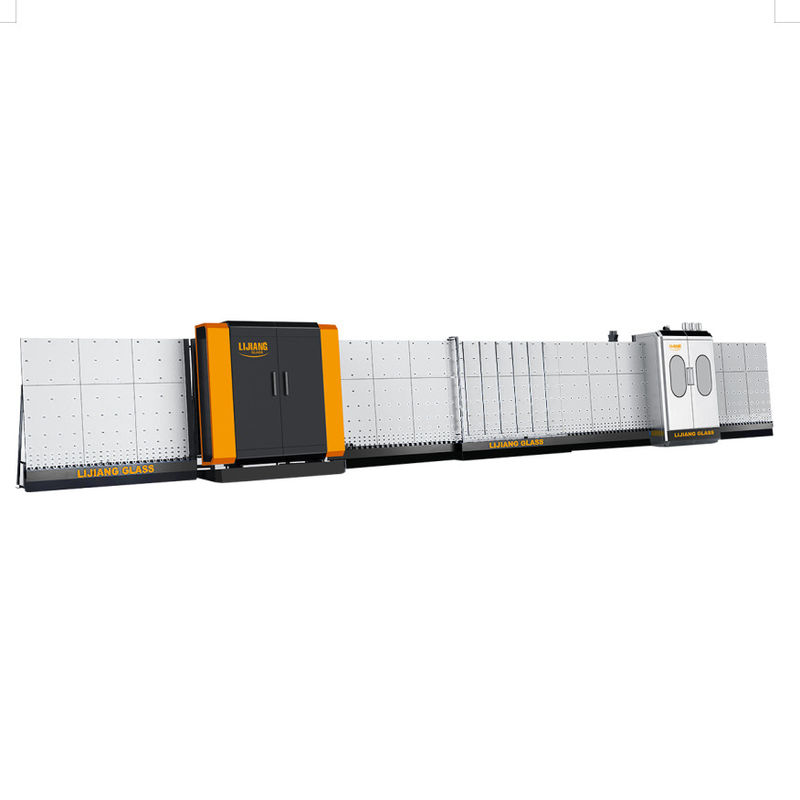

Vertical Insulating Glass Production Line with European silencer system

Main Features of insulating glass equipment

• Adopt SIEMENS control system, keep stable performance

• PLC control system, touch screen interface

• Automatically adjust the depth of glue with digital display

• Using servo to control system, modular function, superposition function

• Applicable to produce stepped IG, triple IG and shaped IG

• Two pieces of IGU can be made and filled with argon gas in one time (Optional)

• Min & Max glass sizes can be optional

Main feature of  glass production machinery

• Ultra-long insulating glass can be compressed with second times

• The machine adopts servo torque to pressing glass

• The pressing plate with adjustable screws to guarantee long-lasting high-precision tablet

• Equipped with a precisely adjustable front platen mechanism

• The system can diagnose fault information

• The pressing plate can be opened to 400mm width for easy maintenance

• Applicable to produce four-side step IG, triple IG and shaped IG

Filling argon gas automatically of insulating glass line

• Automatically filling argon gas inside the pressing plate with precise gas concentration

• When filling shaped IG, inflatable front side of the rectangular size required 450mm (length),

280mm (high)

• No need to drill holes in spacer frame

• Standard gas is Argon gas

• Fast reacting sensor for permanent control of gas filling process

• Automatically set gas data and display data on the screen

Features

• Two pieces of IGU could be pressed and filled gas in once time, each IGU could fill argon gas over 90%.

• Can be better prevented the pressing part to be out of shape by pressing two pieces of IGU in once time.

• High-speed IG processing line

• Solving the problem of waiting for working on the sealing robot. Improve work efficiency highly.

• Installing two spacer frames for two IGU by one workman.

• Automatically measuring glass size and labeling (labeling can be allowed before pressing and after pressing)

with ERP system.

• From transfer part to pressing part, each part is divided.

• Suitable for mass production in a factory, Ultra-fast speed.

Electrical parameters

About Us

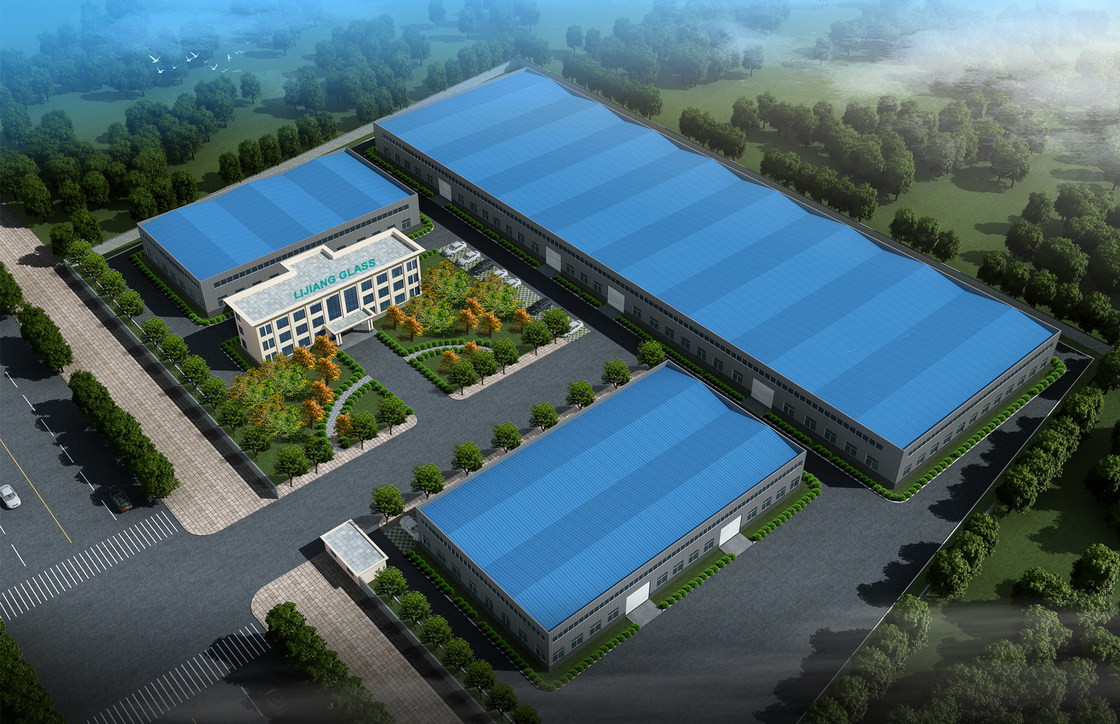

Jinan Lijiang Automation Equipment Co., Ltd.is committed to building high-end insulating glass machinery and equipment by

learning from famous experts, establishing the research and development centers, cooperating with domestic and foreign

well-known enterprises, importing advanced technology and so on. Now, our friendly partners include North Glass, Xin Fuxing,

Yaohua, Dalian Huaying, Beijing Guanhua, Shanghai Hao Jing, Sichuan Li Hehua and other well-known enterprises. Since the

establishment of the company, our products have been exported to Europe, America, South America, the Middle East, Southeast

Asia, India, nearly 30 countries and regions. At the same time, our company worked with the well-known domestic research institutes,

such as the North China Industrial Group, Shandong University and others, to constantly improve the level of technical research. So

far, we have independently produced the vertical automatic IG production line with filling gas on line, the vertical IG sealing robot, the

automatic spacer bending machine, the automatic desiccant filling machine and the new fully automatic butyl extruder machine, its

technology and quality have reached the highest leading level in China.
